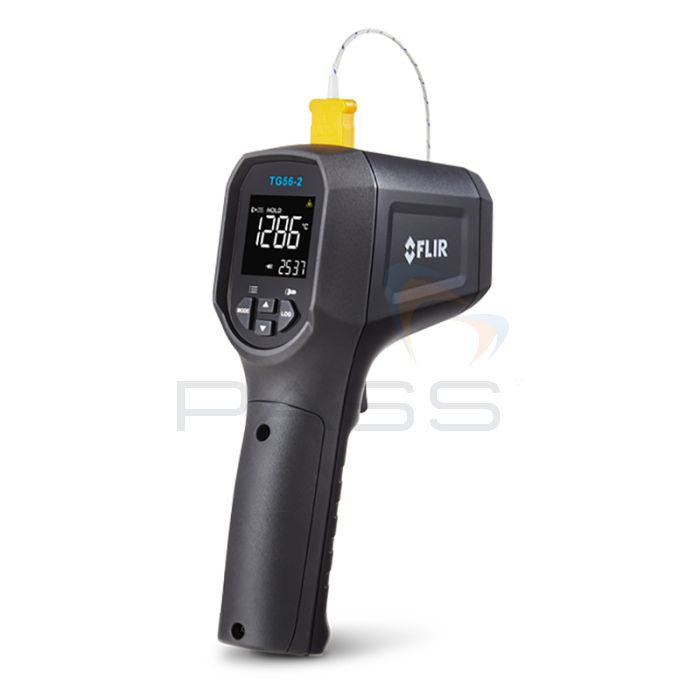

Teledyne FLIR TG56-2 30:1 Spot IR Thermometer with Type K Thermocouple

Distance to spot ratio: 30:1
Built-in laser and work light
Easy emissivity selection with predetermined levels and custom adjustment

SKU

TG56-2

MPN

TG56-2

View All Test Equipment

Description Technical Info Reviews

Equipped with a 30:1 distance to spot ratio, built-in laser, and integrated work light, the Teledyne FLIR TG56-2 30:1 Spot IR Thermometer is an infrared thermometer ideal for taking non-contact surface-temperature measurements of small or hard-to-reach objects from a safe distance. Temperatures are displayed on the colour, easy-to-read display. A graphical menu makes accessing settings, such as emissivity, and functions, like high and low alarms, easy. Finally, the Teledyne FLIR TG56-2 30:1 Spot IR Thermometer features a pocket-sized, 1m-drop-tested design with a tool-less battery compartment. It is ideal for taking quick, safe, non-contact temperature measurements in rugged environments.

Teledyne FLIR TG56-2 30:1 Spot IR Thermometer Applications

Inspect industrial electrical and mechanical equipment
Monitor equipment for signs of degradation before it fails
Ensure energy efficiency in building inspections

Teledyne FLIR TG56-2 30:1 Spot IR Thermometer Key Features

IR thermometer for taking non-contact surface temperature readings of hard-to-reach areas/objects
Distance to spot ratio: 30:1
Take the temperature of small targets from a safe distance
Built-in laser clearly identifies the measurement location
Built-in work light
Colour, easy-to-navigate display
View the current and latest two temperature measurements simultaneously
Graphical menu for easily accessing settings
Easy emissivity selection with predetermined levels and custom adjustment
High and low alarms
Pocket-sized
Industrial, 1m-drop-tested design
Tool-less battery compartment
Take quick, safe, non-contact temperature measurements in rugged environments

What’s Included?

Teledyne FLIR TG56-2 30:1 Spot IR Thermometer
Type K Thermocouple
9V Battery
Storage Pouch
Quick Start Guide

£179.00

£214.80 inc vat

179 Reward Points 60 Days Return

Technical Information

Specification

Teledyne FLIR TG56-2 30:1 Spot IR Thermometer Technical Specifications

Imaging and Optical
Display	1.57” Color EBTN
Laser Orientation	Single-point laser to upper edge of measurement
Laser Power	<1mW, Class II
IR Range	-30°C to 1300°C (-22°F to 2372°F)
Spectral Response	8 µm to 14 µm
Measurement & Analysis
AVG	Last 20 readings
Basic Accuracy	0°C to 100°C (32°F to 212°F): ±1.0°C (±1.8°F)
Differential (MAX/MIN)	Yes
Distance to Spot Ratio (D:S)	30:1
Included Type K Thermocouple Probe Range	-30°C to 260°C (-22°F to 500°F)
Input Type	K
Input Basic Accuracy	±1°C (±1.8°F) or 1% (whichever is greater)
Input Range	-30°C to 650°C (-22°F to 1202°F)
Max/Min	Min/Max/Avg/Dif
Measurement Resolution	0.1°C / 0.1°F
Response	250 Milliseconds
Power
Auto Power Off	5 or 15 seconds (selectable)
Continuous Run Time	8 hours maximum continuous temperature measurements
Power Source	9V alkaline battery (included)
General
Alarm	High/low alarms with programmable set points
Alarm Alert	HI or LO will flash on the display
Compatibility	Pipe Clamp Probe
Datalogging	Manual and automatic data logger
Dimensions (L × W × H)	192 mm × 125 mm × 64 mm (7.5 in × 4.9 in × 2.5 in)
Includes	Spot IR Thermometer, 9V battery, Quick Start Guide, Storage Pouch, and Thermocouple
Memory	2 × 99 sets data storage
Scanning Mode	Yes
Weight	310 g (10.9 ounces)
Worklights	Yes
Environmental & Certifications
Certifications	CE, UKCA, RCM, WEEE and FDA
IP Rating	IP20
Drop Test	1 m (3.2 ft)
Warranty	Limited 3-Year Warranty from FLIR
