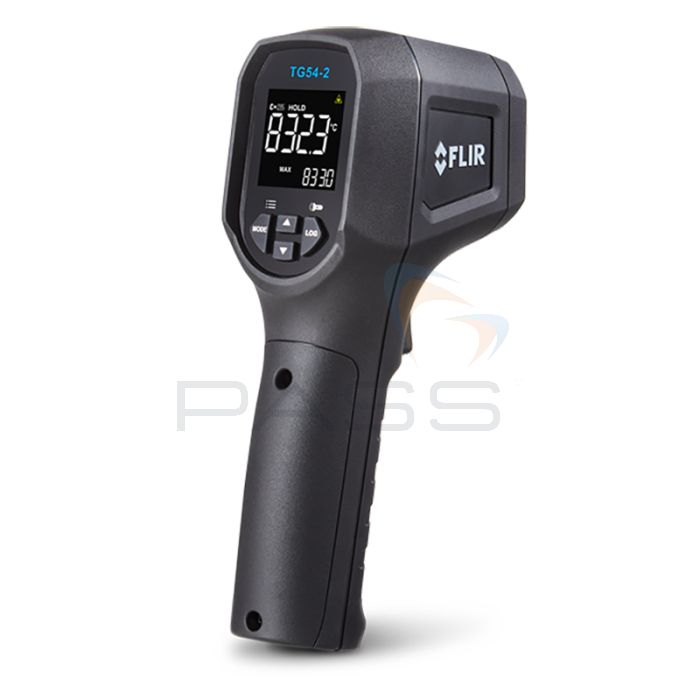

Teledyne FLIR TG54-2 20:1 Spot IR Thermometer
- Distance-to-spot ratio: 20:1
- Colour, easy-to-navigate display with a graphical menu
- Emissivity selection and high and low alarms
SKU
TG54-2
MPN
TG54-2
Equipped with a 20:1 distance-to-spot ratio, integrated laser, and built-in work light, the Teledyne FLIR TG54-2 20:1 Spot IR Thermometer is a pocket-sized infrared thermometer perfect for taking non-contact surface temperatures of hard-to-reach targets. Temperatures are indicated on the colour, easy-to-navigate display. A graphical menu makes accessing settings, such as emissivity, and functions, like alarms, easy. Finally, as the Teledyne FLIR TG54-2 20:1 Spot IR Thermometer is designed for taking non-contact temperature readings in rugged environments, it features a 3m-drop-tested design with a tool-less battery compartment.
Teledyne FLIR TG54-2 20:1 Spot IR Thermometer Applications
- Inspect industrial electrical and mechanical equipment
- Monitor equipment for signs of degradation before it fails
- Ensure energy efficiency in building inspections
Teledyne FLIR TG54-2 20:1 Spot IR Thermometer Key Features
- Pocket-sized infrared thermometer
- Take non-contact surface temperature measurements of hard-to-reach objects
- Distance-to-spot ratio: 20:1
- Integrated laser
- Built-in work light
- The current reading may be displayed simultaneously with the latest two readings
- Colour, easy-to-navigate screen
- Graphical menu
- Emissivity selection with predetermined levels and custom adjustments
- High and low alarms
- 3m drop-tested
- Tool-less battery compartment
- Perfect for taking quick, safe, non-contact temperature measurements in rugged environments
What’s included?
- Teledyne FLIR TG54-2 20:1 Spot IR Thermometer
- 9V Battery
- Storage Pouch
- Quick Start Guide
Technical Information
Specification
Teledyne FLIR TG54-2 20:1 Spot IR Thermometer Technical Specifications
| Imaging and Optical | |
| Display | 1.57” Color EBTN |
| Laser Orientation | Single point laser to upper edge of measurement |
| Laser Power | <1mW, Class II |
| IR Range | -30°C to 850°C (-22°F to 1562°F) |
| Spectral Response | 8 µm to 14 µm |
| Measurement & Analysis | |
| AVG | Last 20 readings |
| Basic Accuracy | 0°C to 100°C (32°F to 212°F): ±1.0°C (±1.8°F) |
| Differential (MAX/MIN) | Yes |
| Distance to Spot Ratio (D:S) | 20:1 |
| Emissivity | 0.01 to 1.00 with 5 presets |
| Max/Min | Min/Max/Avg/Dif |
| Measurement Resolution | 0.1°C / 0.1°F |
| Response | 250 Milliseconds |
| Power | |
| Auto Power Off | 5 or 15 seconds (selectable) |
| Continuous Run Time | 8 hours maximum continuous temperature measurements |
| Power Source | 9V alkaline battery (included) |
| General | |
| Alarm | High/low alarms with programmable set points |
| Alarm Alert | HI or LO will flash on the display |
| Datalogging | Manual and automatic data logger |
| Dimensions (L × W × H) | 192 mm × 94 mm × 64 mm (7.5 in × 3.7 in × 2.5 in) |
| Includes | Spot IR Thermometer, 9V battery, Quick Start Guide and Storage Pouch |
| Memory | 2 × 99 sets data storage |
| Scanning Mode | Yes |
| Weight | 292 g (10.3 ounces) |
| Worklights | Yes |
| Environmental & Certifications | |
| Certifications | CE, UKCA, RCM, WEEE and FDA |
| IP Rating | IP65 |
| Drop Test | 3 m (9.8 ft) |
| Warranty | Limited 3-Year Warranty from Teledyne FLIR |
Document Downloads
Teledyne FLIR TG54-2 TG56-2 Spot IR Thermometer - Datasheet
Teledyne FLIR TG54 & TG56 Spot IR Thermometer - Datasheet
Teledyne FLIR TG54 & TG56 Spot IR Thermometer - User Manual
Additional Information
SKU
TG54-2
Manufacturer Part Code
TG54-2
Country of Origin
China
