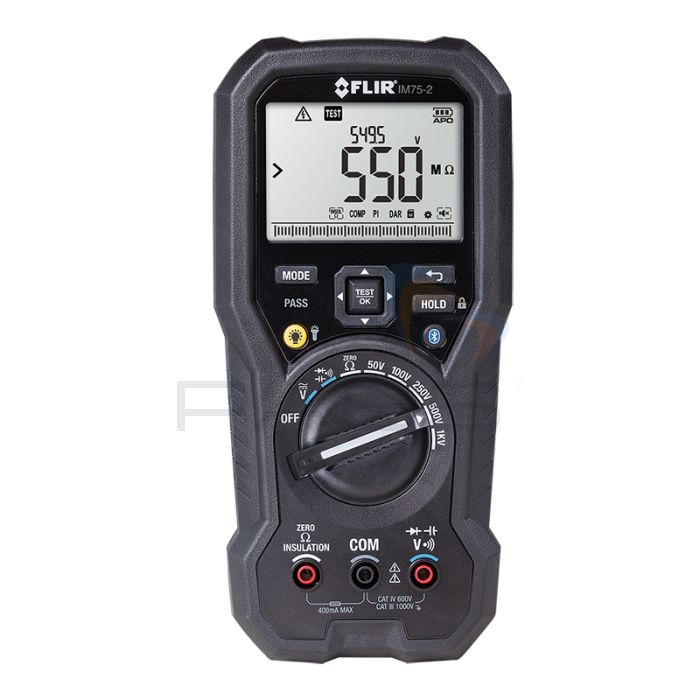

Teledyne FLIR IM75-2 Insulation Tester & Digital Multimeter
The Teledyne FLIR IM75-2 Insulation Tester & Digital Multimeter is a true-RMS tester housed in an IP54-rated, durable, double-moulded case with a built-in LED work light. Offering a 1000V range, it can measure:
- True-RMS voltage
- True-RMS current
- Earth bond resistance
- Continuity
- Diode
- Capacitance
- Insulation Resistance (4MΩ to 20GΩ)
The Teledyne FLIR IM75-2 Insulation Tester & Digital Multimeter also includes useful features such as Low Impedance (LoZ) mode and Advanced Variable Frequency Drive Filtering which allows you to view voltage and frequency simultaneously. Measurements are clearly visible on the backlit display and are indicated using large digits. They can also be viewed on a smartphone or tablet with the METERLink App installed. The Teledyne FLIR IM75-2 Insulation Tester & Digital Multimeter is an ergonomic, easy-to-use, true-RMS DMM with an eclectic testing capability. It is perfect for ensuring installations comply with safety standards; troubleshooting electrical faults; and tracking changes in electrical and mechanical systems.
Teledyne FLIR IM75-2 Insulation Tester & Digital Multimeter Key Features
- An advanced true-RMS digital multimeter
- Check and troubleshoot industrial installations
- 1000V range
- True-RMS voltage
- True-RMS current
- Earth bond resistance
- Continuity
- Diode
- Capacitance
- Insulation Resistance (4MΩ to 20GΩ)
- Low Impedance (LoZ) mode
- Advanced Variable Frequency Drive Filtering
- Backlit display with large digits
- Seamless integration with METERLink App
- View, trend, and log data via the METERLink App
- Create reports using the METERLink App
- Connect up to seven meters simultaneously to the METERLink App
- IP54
- Durable, double-moulded casing
- Drop tested from 2m
- Built-in LED work light
- Ensure installations comply with safety standards
- Troubleshoot electrical faults
- Track changes in electrical and mechanical systems
- Ergonomic, easy-to-use, true-RMS DMM with an eclectic testing capability
What’s Included?
- Teledyne FLIR IM75-2 Insulation Tester & Digital Multimeter
- 1x Set of Test Leads (CAT IV-600V/ CAT III-1000V)
- 1x Set of Alligator Clips (CAT IV-600V/ CAT III-1000V)
- 6x Alkaline Batteries (E92)
- 1x Quick Start Guide
- 1x Warranty Card (From Teledyne FLIR)
Teledyne FLIR IM75-2 Insulation Tester & Digital Multimeter Technical Specifications
| Measurement rate | 2 samples per second, nominal |
| Display rate | 2 times per second |
| Input impedance | 10 MΩ V DC/V AC <100 pF |
| AC voltage bandwidth | 50 Hz to 500 Hz |
| DC voltage | 1000.0 V ± (0.1% + 5 digits) |
| AC voltage | 1000.0 V: 50 Hz to 60 Hz ± (1.5% + 5 digits), 61 Hz to 500 Hz ± (2.0% + 5 digits) |
| VFD AC voltage | 1000.0 V: 50 Hz to 60 Hz ± (1.5% + 5 digits), 61 Hz to 400 Hz, ± (5.0% + 5 digits) |
| Earth bond resistance | 40.00 Ω ± (1.5% + 5 digits) 400.0 Ω ± (1.5% + 3 digits) 4000 Ω ± (1.5% + 3 digits) 40.00 kΩ ± (1.5% + 3 digits) |
| Continuity | 400.0 Ω ± (0.5% + 2 digits) |
| Diode | 2.000 V ± (1.5% + 2 digits) |
| Capacitance | 1000 µF ± (1.2% + 2 digits) 10.00 mF ± (1.2% + 20 digits) |
| Frequency (AC V) | 400.0 Hz ± 5 digits 4.000 kHz ± 5 digits 40.00 kHz ± 5 digits |
| Insulation resistance | 4.000 MΩ ± (1.5% + 5 digits) 40.00 MΩ ± (1.5% + 5 digits) 400.0 MΩ ± (3.0% + 5 digits) 4000 MΩ ± (3.0% + 5 digits) 4.1 G to 20.0 GΩ ± (10.0% + 3 digits) |
| Insulation resistance test voltages | 50 V, 50.0 MΩ 100 V, 100.0 MΩ 250 V, 250.0 MΩ 500 V, 500.0 MΩ 1000 V, 20 GΩ |
| Polarization index (PI) | 10 min in test/1 min in test |
| Dielectric absorption ratio (DAR) | 1 min in test/30 s in test |
| Meter Data | |
| Category rating | CAT IV-600 V, CAT III-1000 V |
| Internal memory | 99 storage locations |
| Over-current protection (fuse) | 440 mA/1000 V, ceramic fast-blow fuse with a minimum interrupt rating of 10 kA |
| Certifications | |
| Agency approvals | FCC Class B, CE, UL, UKCA, RCM |
| Power System | |
| Power requirements | 6 × 1.5 V AAA alkaline batteries |
| Battery life | Earth bond resistance measurements: 2600 with new alkaline batteries (standard tests of 1 Ω with a duty cycle of 5 seconds on and 25 seconds off). Insulation resistance: 1100 insulation resistance tests with new alkaline batteries (standard tests of 1 Ω with a duty cycle of 5 seconds on and 25 seconds off). This does not include Bluetooth or backlight use. |
| Auto power off | User programmable: up to 30 minutes in 1 minute increments, with audible pre-alert (20 seconds) |
| Environmental Data | |
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
| Operating humidity | Maximum 80% up to 35°C (95°F) decreasing linearly to 60% at 45°C (113°F) |
| Storage temperature and relative humidity | -20°C to 60°C (-4°F to 140°F), 80% maximum |
| Operating altitude | 2000 m (6561 ft) |
| Pollution degree | 2 |
| EMC | EN 61326-1 |
| Shock vibration | Per MIL-PRF-28800 for a Class 2 instrument |
| Meter Physical Data | |
| Display | 4000 count with bar graph |
| Controls | 9-position rotary switch, 4-way selector pad with center OK/ TEST button, LED (pass (green), fail (red)), dedicated function buttons (5: mode, cancel, hold/lock, Bluetooth, backlight) |
| Backlight | White LEDs |
| Worklights | Two white LEDs |
| Weight | 605 g (1.33 lb), including batteries |
| Dimensions (H × W × L) | 95 mm × 207 mm × 52 mm (3.7 in × 8.1 in × 2.0 in) |
| Material | PC-ABS, TPE |
Reviews
Additional Information
| SKU | IM75-2 |
|---|---|
| Manufacturer Part Code | IM75-2 |
| Country of Origin | Taiwan |
