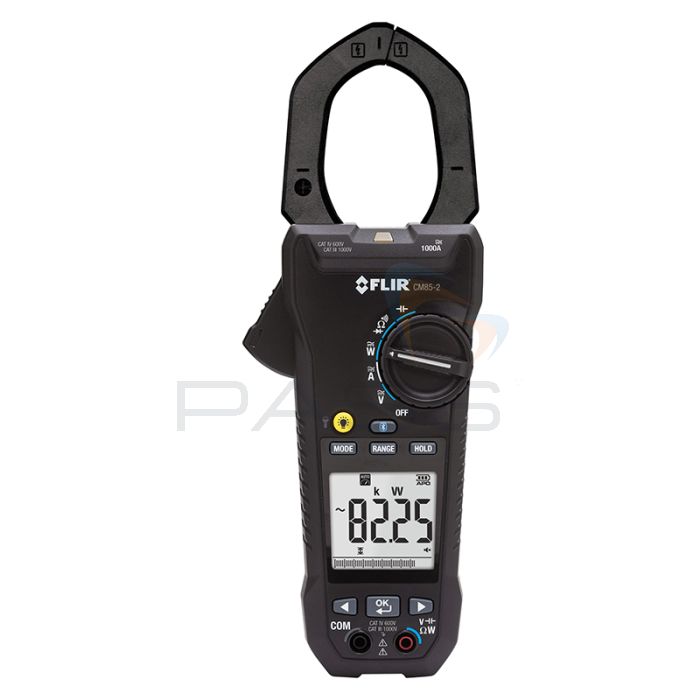

Teledyne FLIR CM85-2 True-RMS Power Clamp Meter
- Advanced power analysis
- Variable frequency drive (VFD) filtering functions
- Wide AC/DC voltage range
SKU
CM85-2
MPN
CM85-2
An industrial power clamp with advanced power analysis and variable frequency drive (VFD) filtering functions, the Teledyne FLIR CM85-2 True-RMS Power Clamp Meter is suitable for troubleshooting full-scale electrical equipment. It features a wide AC/DC voltage range and can measure true-RMS AC current up to 1000A, as well as test harmonics, inrush, current, and phase rotation. The Teledyne FLIR CM85-2 True-RMS Power Clamp Meter offers an accuracy of ±1% and includes a VFD mode which improves precision when working on VFD-controlled equipment. Data can be sent via Bluetooth to a smartphone or tablet with the METERLiNK App installed. The Teledyne FLIR CM85-2 True-RMS Power Clamp Meter has a Bluetooth range of 10m. Finally, the Teledyne FLIR CM85-2 True-RMS Power Clamp Meter is fitted with two LED lights. It is an ergonomic, easy-to-use electrical troubleshooting tool with an eclectic array of measurement capabilities.
Teledyne FLIR CM85-2 True-RMS Power Clamp Meter Key Features
- Troubleshoot full-scale electrical equipment
- An industrial power clamp
- Advanced power analysis
- Variable frequency drive (VFD) filtering functions
- Wide AC/DC voltage range
- Accuracy: ±1%
- Harmonics
- Inrush
- Current
- Phase rotation
- VFD mode
- True-RMS AC current: up to 1000A
- Take multiple conductor measurements
- Stream data via Bluetooth to a smartphone/tablet with the METERLiNK App installed
- Bluetooth range: 10m
- Save data, set alarms, visualise trends, and create reports via the METERLiNK App
- Dual LED lights
- An ergonomic, easy-to-use electrical troubleshooting tool with an eclectic array of measurement capabilities
What’s Included?
- Teledyne FLIR CM85-2 True-RMS Power Clamp Meter
Technical Information
Specification
Teledyne FLIR CM85-2 True-RMS Power Clamp Meter Technical Specifications
| Measurement Ranges and Accuracy | |
| Voltage DC | 99.99 V, ±(0.7% + 2 digits) 999.9 V, ±(0.7% + 2 digits) |
| Voltage AC | 0.05 V to 99.99 V, ±(1.0% + 5 digits) 999.9 V, 50 Hz to 500 Hz |
| VFD, ACV | 0.05 V to 99.99 V, 50 Hz to 60 Hz ±(1% + 5 digits) 999.9 V, 50 Hz to 60 Hz ±(1% + 5 digits) |
| Current DC | 99.99 A, ±(2% + 0.5 A) 999.9 A, ±(2% + 5 digits) |
| Current AC | 0.10 A to 99.99 A, 50 Hz to 60 Hz ±(2% + 5 digits) 999.9 A, >60 Hz to 400 Hz ±(2.5% + 5 digits) |
| VFD, ACA | 0.10 A to 99.99 A, 50 Hz to 60 Hz ±(2% + 5 digits) 999.9 A, 50 Hz to 60 Hz ±(2% + 5 digits) |
| Peak Hold ACV | 140.0 V, ±(3.0% + 15 digits) 1400 V, ±(3.0% + 15 digits) |
| Peak Hold ACA | 140.0 A, ±(3.5% + 15 digits) 1400 A, ±(3.5% + 15 digits) |
| Frequency | 20.00 Hz to 99.99 Hz, ±(0.5% + 3 digits) 20.0 Hz to 999.9 Hz, ±(0.5% + 3 digits) 0.020 kHz to 9.999 kHz, ±(0.5% + 3 digits) |
| Total harmonic distortion ACA/ACV | 99.9%, ±(3.0% + 10 digits) |
| Harmonic distortion H01–H12 | 99.9%, ±(5% + 10 digits) |
| Harmonic distortion H13–H25 | 99.9%, ±(10% + 10 digits) |
| Inrush current ACA | 99.99 A, ±(3% + 0.3 A) 999.9 A, ±(3% + 5 digits) |
| Watts DC | 9.999 kW (10 V, 5 A min), ±(3% + 0.05 kW) 99.99 kW (10 V, 5 A min), ±(3% + 0.5 kW) 999.9 kW (10 V, 5 A min), ±(3% + 10 digits) |
| Watts AC | 9.999 kW (10 V, 5 A min), ±(3% + 10 digits) 99.99 kW (10 V, 5 A min), ±(3% + 10 digits) 999.9 kW (10 V, 5 A min), ±(3% + 10 digits) |
| Power factor | -1.00 to 0.00 to +1.00, ±3° ±1 digit |
| Resistance | 999.9 Ω, ±(1.0% + 5 digits) 9.999 kΩ, ±(1.0% + 3 digits) 99.99 kΩ, ±(1.0% + 3 digits) |
| Continuity | 999.9 Ω, ±(1.0% + 5 digits) |
| Diode | 0.40 V to 0.80 V, ±0.1 V |
| Capacitance | 3.999 μF, ±(1.9% + 8 digits) 39.99 μF, ±(1.9% + 8 digits) 399.9 μF, ±(1.9% + 8 digits) 3.999 mF, ±(1.9% + 8 digits) |
| Measuring rate | 3 times per second |
| Meter Data | |
| Jaw opening | 45 mm (1.77 in) |
| Bluetooth range | 10 m (32 ft) |
| Category rating | CAT IV-600 V, CAT III-1000 V |
| Data recording | Available via METERLiNK App |
| Drop test | 1.2 m (4 ft) |
| Certifications | |
| Certifications | UL, CE, FCC, IC, UKCA, CSAUS |
| Complies with Safety Standards | IEC 61010-1:2010, IEC 61010-2-032:2012, IEC 61010-2-033:2012 |
| EMC | FCC: 47 CFR Part 15 Subpart B CE: EN IEC 61326-1:2021 EN IEC 61326-2-2:2021 EN 301 489-1 V2.2.3 (2019-11) EN 301 489-17 V3.2.4 (2020-09) RF: ETSI EN 300 328 V2.2.2 EN 62479:2010 EN 50663:2017 |
| Power System | |
| Power requirements | 6 × 1.5 V AAA alkaline batteries |
| Battery life | 50 hours with alkaline batteries (backlight, worklight, and Bluetooth off) |
| Auto power off | Approx. 30 minutes |
| Environmental Data | |
| Operating ambient temperatures and relative humidity |
0°C to 10°C (32°F to 50°F) (non‐condensing) 10°C to 30°C (50°F to 86°F) (≤80% RH) 30°C to 40°C (86°F to 104°F) (≤75% RH) 40°C to 50°C (104°F to 122°F) (≤45% RH) |
| Storage temperature and relative humidity |
-10°C to 50°C (14°F to 122°F). 0 to 80% RH (batteries not fitted) |
| Temperature coefficient | 0.2 × (specified accuracy)/° C, <18°C, >28°C. |
| Operating altitude | 2000 m (6562 ft) |
| Pollution degree | 2 |
| Shock vibration | Random vibration per MIL‐PRF‐28800f Class 2 (5 to 55 Hz, 3 g maximum) |
| Meter Physical Data | |
| Weight | 0.65 kg (1.43 lb), including batteries |
| Dimensions (L × W × H) | 276 mm × 101 mm × 50 mm (10.87 in × 3.98 in × 1.97 in) |
