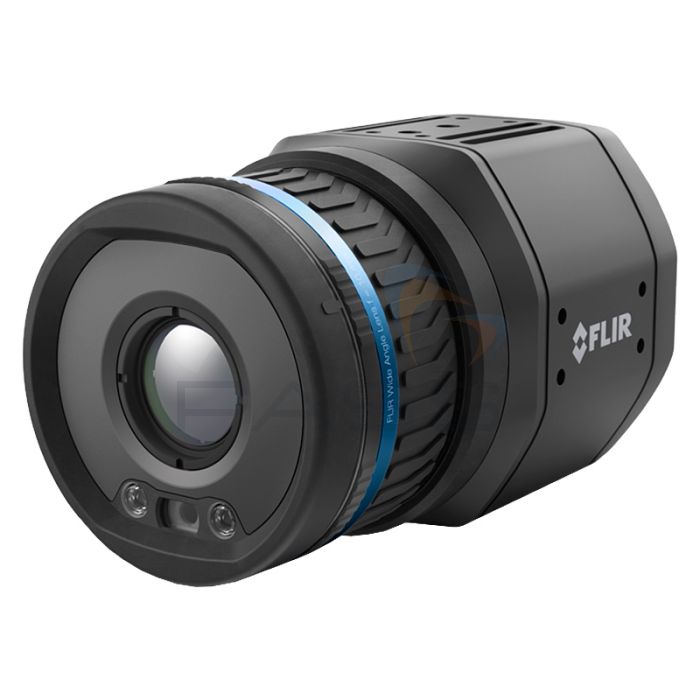

Teledyne FLIR A500 Advanced Smart Sensor Automation Thermal Camera – Choice of Lens

Featuring an advanced smart sensor configuration, edge computing, and an Industrial Internet of Things (IIoT), the Teledyne FLIR A500 Advanced Smart Sensor Automation Thermal Camera is an infrared-imaging automation camera ideal for complex remote monitoring, alarming, and analytics objectives. It offers a 464 x 348px IR resolution, precision motorised focus, -20°C to +1500°C total temperature range, and an approximate accuracy of ±2°C/2%. The Teledyne FLIR A500 Advanced Smart Sensor Automation Thermal Camera also includes useful analytical functions such as FSX® technology, a polygon line function, compressed radiometric streaming, and adjustable temperature alarms. Integrated Wi-Fi (optional), Modbus TCP, and Ethernet/IP simplify integration into HMI/SCADA systems, industrial automation systems, and REST API over XML or JSON web systems. The Teledyne FLIR A500 Advanced Smart Sensor Automation Thermal Camera is a reliable, flexible, powerful temperature-measuring automation camera ideal for monitoring critical infrastructure, assessing product quality, and detecting overheating components.

Teledyne FLIR A500 Advanced Smart Sensor Automation Thermal Camera Key Features

  • Thermal imaging camera with an advanced smart sensor configuration, edge computing, and IIoT
  • Available with a selection of lenses and optional extras
  • Perfect for complex remote monitoring, alarming, and analytical objectives
  • IR resolution: 464 x 348px
  • Precision motorised focus
  • Total temperature range: -20°C and +1500°C
  • Approximate accuracy: ±2°C/2%
  • Monitor critical infrastructure
  • Assess product quality
  • Detect overheating components
  • Identify elevated skin temperature alongside other temperature screening tools
  • FSX® technology
  • Polygon line function
  • Adjustable temperature alarms
  • Compressed radiometric streaming enables the connection of multiple cameras and sharing of footage over Wi-Fi
  • Seamlessly integrates into new and existing networks
  • Optional Wi-Fi
  • Modbus TCP
  • Ethernet/IP
  • Simple integration into HMI/SCADA systems
  • Integrates into industrial automation systems using analogue and digital control
  • Integrates into REST API over XML or JSON web systems
  • MQTT protocol
  • Suitable for complex analytical/alarm applications
  • Reliable, flexible, powerful temperature-measuring automation camera

What’s Included?

  • Teledyne FLIR A500 Advanced Smart Sensor Automation Thermal Camera
  • Your Choice of Lens

Teledyne FLIR A500 Advanced Smart Sensor Automation Thermal Camera Technical Specifications

Digital I/O connector type M12 12-pin A-coded, Male (shared with external power)
Digital Inputs 2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V
Digital Output Purpose
  • As a function of alarm, output to external device
  • Fault (NC)
Digital Outputs 3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC)
Encoding Video stream: H.264, MPEG4, or MJPEG Radiometric stream: Compressed JPEG-LS, FLIR radiometric
Ethernet Interface Wired, Wi-Fi (optional)
WiFi Optional feature purchased separately. RP-SMA, female connector
EMC
  • ETSI EN 301 489-1 (radio)
  • ETSI EN 301 489-17 (radio)
  • EN 61000-4-8 (magnetic field)
  • FCC 47 CFR Part 15 Class B (emission US)
  • ISO 13766-1 (EMC - Earth-moving and building construction machinery)
  • EN ISO 14982 (EMC - Agricultural and forestry machinery)
Image Frequency 30 Hz
Thermal Sensitivity/NETD <30 mK, 42° @ 30°C (86°F)
<40 mK, 24° @ 30°C (86°F)
<50 mK, 14° @ 30°C (86°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C–35°C (59°F–95°F) and object temperature above 0°C (32°F)
Alarm Functions On any selected measurement function, digital in, and internal camera temperature
Alarm Output
  • Digital out
  • E-mail (SMTP) (push)
  • EtherNet/IP (pull)
  • File transfer (FTP) (push)
  • Modbus TCP master write (push)
  • Modbus TCP slave (pull)
  • MQTT (push)
  • Query over RESTful API (pull)
  • Store image or video
Communication & Data Storage
Digital I/O connector type M12 12-pin A-coded, Male (shared with external power)
Digital I/O isolation voltage 500 VRMS
Digital input purpose

NUC, NUC disable, alarm

Digital Inputs 2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V
Digital Output Purpose
  • As a function of alarm, output to external device
  • Fault (NC)
Digital Outputs 3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC)
Encoding Video stream: H.264, MPEG4, or MJPEG Radiometric stream: Compressed JPEG-LS, FLIR radiometric
Ethernet For control, result, image, and power
Ethernet Communication

TCP/IP socket-based FLIR proprietary

Ethernet Connector Type M12 8-pin X-coded, female; RP-SMA, female
Ethernet Interface Wired, Wi-Fi (optional)
Ethernet Power Power over Ethernet, PoE IEEE 802.3af class 3
Ethernet Protocols
  • EtherNet/IP
  • IEEE 1588
  • Modbus TCP Master
  • Modbus TCP Slave
  • MQTT
  • SNMP
  • TCP, UDP, SNTP, RTSP, RTP, HTTP, HTTPS, ICMP, IGMP, sftp (server), FTP (client), SMTP, DHCP, MDNS (Bonjour), uPnP
Ethernet Standard IEEE 802.3
Ethernet Type 1000 Mbps
Image Storage Records up to 100 FLIR radiometric JPEG; storage as function of: alarm, scheduling, or user interaction (camera web)
Multicast Yes
RS-232 NA
Video Storage Records up to 10 H.264 videos; storage as function of alarm — 5 sec. before alarm and 5 sec. after alarm.
WiFi Optional feature purchased separately. RP-SMA, female connector
Imaging & Optical
Available Lenses 6°, 14°, 24°, 42°, Dual FOV (14° + 24°) athermalized lenses
Contrast Enhancement FSX® / Histogram equalization (IR only)
Detector Pitch 17 µm
Focal Plane Array (FPA) Uncooled microbolometer
Focus One-shot contrast, motorized, and manual
Image Frequency 30 Hz
Image Source Video stream 0: visual / IR / MSX® (visual camera is an optional feature) Video stream 1: visual Radiometric video stream: IR
IR Resolution 464 × 348
Multi-Streaming Yes
Overlay With / Without
Pixel Format Video stream: YUV411 Radiometric stream: MONO 16
Radiometric IR video streaming RTSP protocol
Readout

Measurement results:

  • Ethernet/IP (pull)
  • Modbus TCP master (push)
  • Modbus TCP slave (pull)
  • MQTT (push)
  • Query over REST API (pull)
  • Measurements and still image (radiometric JPEG, visual 640 × 480, visual 1280 × 960), read access only
  • Web interface
Spectral Range 7.5–14 µm
Streaming Resolution Video stream 0: 640 × 480 pixels Video stream 1: 1280 × 960 pixels Radiometric stream: 320 × 240 pixels
Thermal Sensitivity/NETD <30 mK, 42° @ 30°C (86°F)
<40 mK, 24° @ 30°C (86°F)
<50 mK, 14° @ 30°C (86°F)
Video Streaming RTSP protocol
Visible Camera Optional accessory
Measurement & Analysis
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C–35°C (59°F–95°F) and object temperature above 0°C (32°F)
Alarm Functions On any selected measurement function, digital in, and internal camera temperature
Alarm Output
  • Digital out
  • E-mail (SMTP) (push)
  • EtherNet/IP (pull)
  • File transfer (FTP) (push)
  • Modbus TCP master write (push)
  • Modbus TCP slave (pull)
  • MQTT (push)
  • Query over RESTful API (pull)
  • Store image or video
Atmospheric transmission correction Based on inputs of distance, atmospheric temperature, and relative humidity
Automatic hot & cold detection Max./min. temperature value and position shown within box
Measurement Corrections Global object parameters; local parameters per analyze function
Measurement Presets Yes
Measurement Tools 10 spotmeters, 10 boxes or mask polygons, 3 Deltas (difference any value/reference/external lock), 2 isotherms (above/below/interval), 2 iso-coverage, 1 reference temperature, 2 lines, 1 polyline
Object Temperature Range -20°C to 120°C (-4°F to 248°F), 0°C to 650°C (32°F to 1202°F), 300°C to 1500°C (572°F to 3632°F)
General
Base Mounting 4× M4 on 4 sides
Housing material Aluminium
Size (L x W x H) 123 × 77 × 77 mm (4.84 × 3.03 × 3.03 in)
Weight 0.82 kg (1.8 lb), camera only
Environmental & Certifications
Corrosion
  • ISO 12944 C4 G or H
  • EN60068-2-11
EMC
  • ETSI EN 301 489-1 (radio)
  • ETSI EN 301 489-17 (radio)
  • EN 61000-4-8 (magnetic field)
  • FCC 47 CFR Part 15 Class B (emission US)
  • ISO 13766-1 (EMC - Earth-moving and building construction machinery)
  • EN ISO 14982 (EMC - Agricultural and forestry machinery)
Encapsulation IEC 60529, IP 54, IP66 with accessory
Humidity (Operating and Storage) IEC 60068-2-30/24 hours, 95% relative humidity, 25°C–40°C (77°F–104°F)/2 cycles
ONVIF Conformance Yes. ONVIF Profile S
Operating Temperature Range

-20°C to 50°C (–4°F to 122°F):

  • -20°C to 40°C (-4°F to 104°F) (in free air)
  • 40°C to 50°C (104°F to 122°F) (mounted on cooling plate accessory) Maximum camera case temperature: 65°C (149°F)
Radio Spectrum
  • FCC 47 CFR Part 15 Class C (2.4 GHz band US)
  • FCC 47 CFR Part 15 Class E (5 GHz band US)
  • RSS-247 (2.4 GHz and 5 GHz band Canada)
  • ETSI EN 300 328 V2.1.1 (2.4 GHz band EU)
  • ETSI EN 301 893 V2.1.1 (5 GHz band EU)
Shock IEC 60068-2-27, 25 g
Tripod Mounting UNC ¼″-20 on 2 sides
Vibration
  • IEC 60068-2-6, 0.15 mm at 10–58 Hz and 2 g at 58–500 Hz, sinusoidal
  • IEC 61373 Cat 1 (Railway)
Power
External Power Operation 24/48 V DC 8 W max
External Voltage Allowed range 18–56 V DC
Power Connection M12 12-pin A-coded, male (shared with Digital I/O)
Power Consumption
  • 7.5 W at 24 V DC typical
  • 7.8 W at 48 V DC typical
  • 8.1 W at 48 V PoE typical
