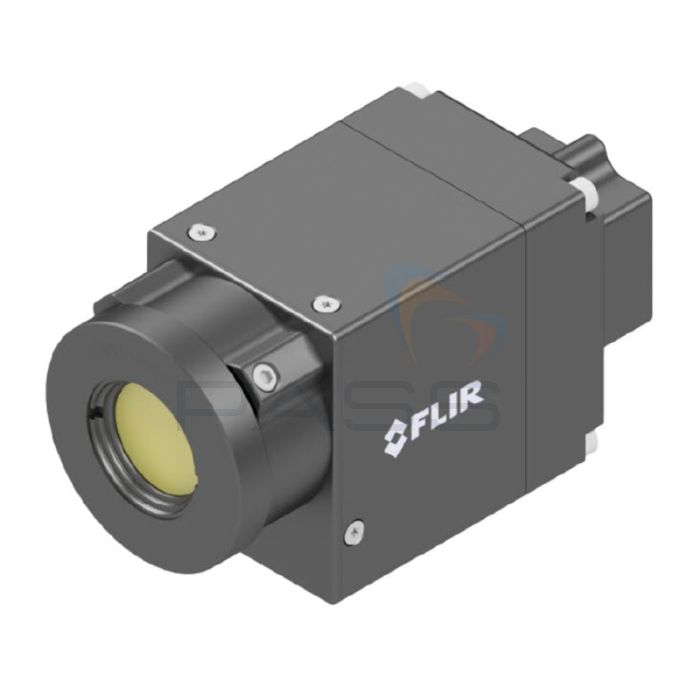

FLIR A38 Thermal Camera (60Hz) - 24 or 42° Lens
- IR resolution: 320 x 240px
- Frame rate: 60Hz
- Delivers a stable GigE Vision feed
SKU
FLIR-A38
Featuring a 320 x 240px IR resolution, 60Hz frame rate, and fix focus that can be adjusted with an Allen key, the Teledyne FLIR A38 Thermal Camera is a compact infrared imager ideal for machine vision integration. It delivers an 8-bit or 16-bit IR stream as well as a stable GigE Vision feed. The Teledyne FLIR A38 Thermal Camera is GigE Vision and GenICam-compliant. It is also compatible with Teledyne FLIR, Teledyne Sapera, and third-party SDKs. The Teledyne FLIR A38 Thermal Camera is specifically designed for machine vision applications.
Teledyne FLIR A38 Thermal Camera Key Features
- Compact thermal imager
- Ideal for machine vision integration
- IR resolution: 320 x 240px
- Frame rate: 60Hz
- 8-bit or 16-bit IR stream
- Fix focus that is adjustable with an Allen key
- GigE Vision and GenICam-compliant
- Delivers a stable GigE Vision feed
- Teledyne FLIR SDK, Teledyne Sapera SDK, and third-party SDK compatible
- Power over Ethernet (PoE)
- A small infrared imager specifically designed for machine vision applications
What’s Included?
- Teledyne FLIR A38 Thermal Camera
- Your Choice of Lens
Technical Information
Specification
FLIR A38 Thermal Camera Technical Specifications
| Imaging and Optical Data | |
| Infrared resolution | 320 × 240 pixels |
| Thermal sensitivity (NETD) | < 50 mK @ 25°C ambient |
| Field of view (FOV) | 24° Lens: 24° × 18.1° |
| 42° Lens: 40.1° × 29° | |
| Minimum focus distance | 24° Lens: 0.4 m (1.3 ft) |
| 42° Lens: 1.5 m (4.9 ft) | |
| Focal length | 24° Lens: 13mm m (0.51 ft) |
| 42° Lens: 8.1 mm (0.32 in) | |
| f-number | 24° Lens: 1.0 |
| 42° Lens: 1.1 | |
| Image frequency | 60 Hz |
| Focus | Fixed |
| Detector Data | |
| Spectral range | 8–14 µm (LWIR) |
| Detector pitch | 17 µm |
| Ethernet | |
| Interface | Wired |
| Connector type | RJ-45 |
| Ethernet, purpose | Control, image, and power |
| Ethernet, type | Gigabit Ethernet |
| Ethernet, standard | IEEE 802.3 |
| Ethernet, communication | GigE Vision / GenICam |
| Ethernet, power | Power over Ethernet (PoE) |
| Ethernet, protocols | GigE Vision |
| Pixel format | Mono8 or 16-bit/pixel |
| Power System | |
| Power consumption, typical |
|
| Power consumption, maximum |
|
| Environmental Data | |
| Operating temperature range | –35°C to +60°C (-31°F to +140°F) |
| Storage temperature range |
–40 to 80°C (–40 to 176°F)
To avoid possible damage during storage, ensure that the sensor is not exposed to air. Use a lens cap or lens to cover the sensor.
|
| Humidity (operating and storage) | Maximum 80% relative humidity, non-condensing |
| Physical Data | |
| Weight (without lens) | 67 g (2.4 oz) |
| Size (L × W × H, without lens) | 59 × 29 × 36 mm (2.32 × 1.14 × 1.42 in) |
| Tripod mounting | UNC ¼″-20 |
