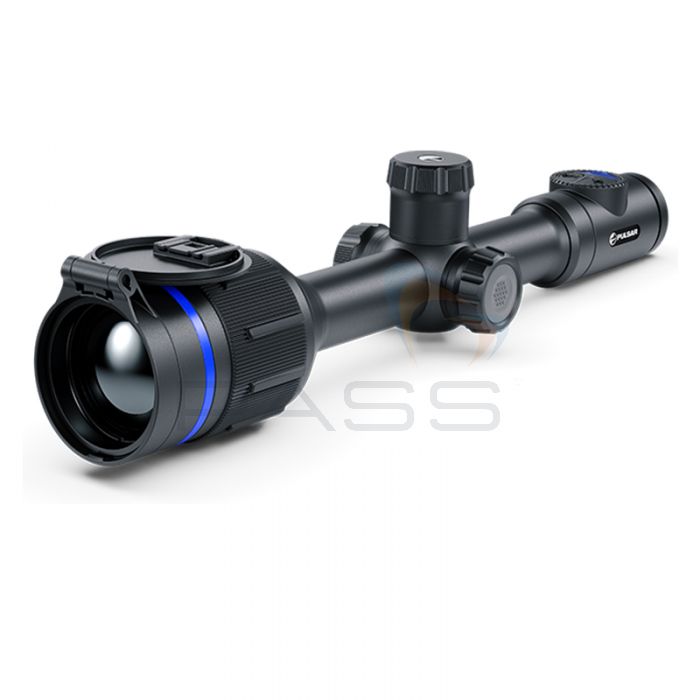

Designed for use in challenging weather conditions and/or at night, the Pulsar Thermion 2 XQ35 Pro Thermal Imaging Riflescope is an infrared-imaging weapon scope for use with high-calibre rifles featuring 30mm scope rings. It is equipped with a 384x288px IR sensor, 25mk thermal sensitivity, fast aperture F1.0 germanium lens, 1350m detection range (for a 1.8m-tall target), variable magnification, Picture-in-Picture mode, and eight thermal colour palettes. It captures slight temperature differences even in circumstances where thermal contrast is low, such as during heavy rainfall, dense fog, and cold mornings, allowing you to see the anatomical features of animals and the nuances of the landscape. Smooth, fluid, richly coloured imaging is visible on the power-saving, high-contrast, 1024x768 HD AMOLED display. Photos and videos can be captured and saved to the Pulsar Thermion 2 XQ35 Pro Thermal Imaging Riflescope’s 16GB internal memory or the Pulsar Cloud. Built-in 2.4GHz and 5GHz Wi-Fi enable communication with Pulsar’s Android/iOS Stream Vision 2 App which facilitates live image streaming, remote operation, and wireless software updates. Finally, this fully waterproof (IPX7) weapon scope with a 10-hour battery life has the capacity to store five zeroing profiles, each with ten distance coordinates, and features an eclectic selection of reticles that are all available in nine colours.
Model | Thermion 2 XQ35 Pro | Thermion 2 XQ50 Pro | Thermion 2 XP50 Pro |
SKU | PU-76541 | PU-76548 | PU-76547 |
Main | |||
Sensor | 384x288 pix. @ 17 µm (NETD <25 mK) | 384x288 pix. @ 17 µm (NETD <25 mK) | 640x480 pix. @ 17 µm (NETD <25 mK) |
Objective lens | F35 F/1.0 | F50 F/1.0 | F50 F/1.0 |
Magnification, x | 2.5-10 | 3-12 | 2-16 |
Field of view (HxV), degrees / m@100m | 10.7/18.7 | 7.5/13.1 | 12.4/21.8 |
Detection range, m | 1350 | 1800 | 1800 |
Sensor | |||
Type | uncooled | uncooled | uncooled |
Resolution, pixels | 384x288 | 384x288 | 640x480 |
Pixel pitch, µm | 17 | 17 | 17 |
NETD, mK | <25 | <25 | <25 |
Frame rate, Hz | 50 | 50 | 50 |
Optics | |||
Objective lens | F35 F/1.0 | F50 F/1.0 | F50 F/1.0 |
Magnification, x | 2.5-10 | 3-12 | 2-16 (x4 zoom) |
Field of view (HxV), degrees / m @ 100 m | 10.7/18.7 | 7.5/13.1 | 12.4/21.8 |
Eye relief, mm | 50 | 50 | 50 |
Display | |||
Type | AMOLED | AMOLED | AMOLED |
Resolution, pixels | 1024х768 | 1024x768 | 1024х768 |
Range Performance | |||
Detection range, m | 1350 | 1800 | 1800 |
Reticle | |||
Click value, H/V, mm at 100 m | 18 – 2.5x, 9 – 5x, 4.5 – 10x | 13 – 3x, 6.5 – 6x, 3.25 – 12x | 21 – 2х, 10.5 – 4х, 5.25 – 8х, 2.6 – 16х |
Click range, H/V, mm at 100 m | 3600/3600 | 2600/2600 | 4200/4200 |
Number of preloaded reticles | 10 | 10 | 10 |
Video Recorder | |||
Video / photo resolution, pixel | 1024x768 | 1024х768 | 1024х768 |
Video / photo format | .mp4 / .jpg | .mp4 / .jpg | .mp4 / .jpg |
Built-in memory, GB | 16 | 16 | 16 |
Wi-Fi | |||
Wireless Protocol | Wi-Fi | Wi-Fi | Wi-Fi |
Wireless Standard | 802.11 b/g/n/ac | 802.11 b/g/n/ac | 802.11 b/g/n/ac |
Frequency, GHz | 2.4 / 5 GHz | 2.4 / 5 GHz | 2.4 / 5 GHz |
Environmental Characteristics | |||
Degree of protection, IP code (IEC60529) | IPX7 | IPX7 | IPX7 |
Operating temperature range, °С | -25 – +50 | -25 – +50 | -25 – +50 |
Connections & Compatibilities | |||
Max. recoil power on rifled weapon (Eo), Joules
|
6000 | 6000 | 6000 |
Shock resistance on the smooth-bore rifles, caliber | 12 | 12 | 12 |
Mounting brackets on weapon | 30 | 30 | 30 |
Supported Application | Stream Vision 2 | Stream Vision 2 | Stream Vision 2 |
Power Supply | |||
Output voltage, V | 3.0–4.2 | 3.0–4.2 | 3.0–4.2 |
Battery type | Li-Ion Battery Pack АPS2 (external), Li-Ion Battery Pack APS3 (external)*, Li-Ion Battery Pack APS5 (internal) | Li-Ion Battery Pack АPS2 (external), Li-Ion Battery Pack APS3 (external)*, Li-Ion Battery Pack APS5 (internal) | Li-Ion Battery Pack АPS2 (external), Li-Ion Battery Pack APS3 (external)*, Li-Ion Battery Pack APS5 (internal) |
Capacity, mAh | 2000 (external) + 3200 (external)* + 4900 (internal) | 2000 (external) + 3200 (external)* + 4900 (internal) | 2000 (external) + 3200 (external)* + 4900 (internal) |
Operating time on battery pack (at t=22°C), h * | 10 | 10 | 10 |
External power supply, V | 5 V, 9 V (USB Type-C Power Delivery) | 5 V, 9 V (USB Type-C Power Delivery) | 5 V, 9 V (USB Type-C Power Delivery) |
Weight & Size | |||
Body material | Metal | Metal | Metal |
Dimensions, mm | 399х78х80 | 412x78x83 | 412x78x83 |
Weight, kg | 0.88 | 0.9 | 0.9 |
