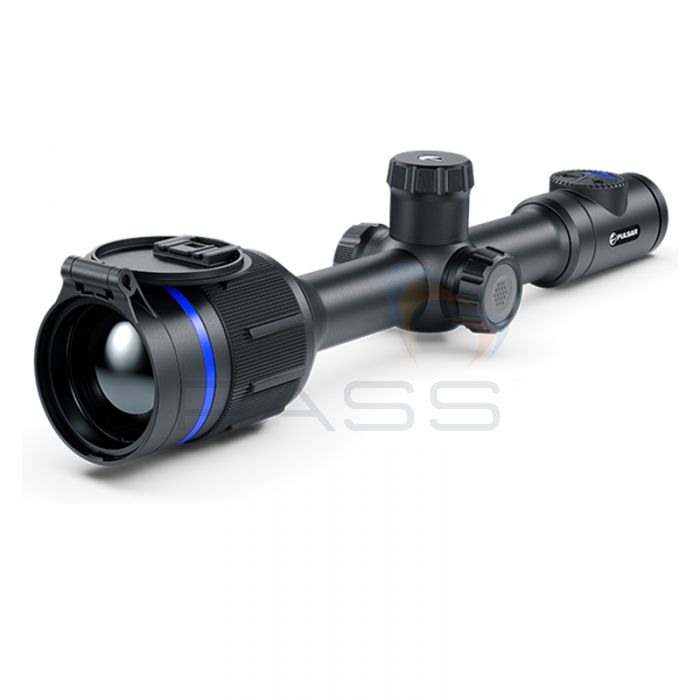

An infrared-imaging weapon scope designed for use with high-calibre rifles featuring standard 30mm scope rings, the Pulsar Thermion 2 XP50 Pro Thermal Imaging Riflescope is ideal for use in challenging weather conditions and/or at night.
Equipped with a 640x480px IR sensor with a 25mk thermal sensitivity and an F1.0 germanium lens, the Pulsar Thermion 2 XP50 Pro Thermal Imaging Riflescope detects slight temperature differences even in conditions where there is low thermal contrast, such as during heavy rainfall, dense fog, and cold mornings. Using the Pulsar Thermion 2 XP50 Pro Thermal Imaging Riflescope you can easily identify the anatomical features of animals and the nuances of the landscape.
Furthermore, the Pulsar Thermion 2 XP50 Pro Thermal Imaging Riflescope’s thermal sensor and germanium optics deliver a detection distance of 1800m (for a 1.8m-tall object) even in total darkness.
The Pulsar Thermion 2 XP50 Pro Thermal Imaging Riflescope’s digital zoom can be adjusted in 2x steps or continuously for a completely customised field of view. It features a 2x-16x variable magnification.
Shoot accurately using the Pulsar Thermion 2 XP50 Pro Thermal Imaging Riflescope’s Picture-in-Picture mode. Zoom in on a specific target (the reticle is included within the magnified image) without losing the overall field of view.
Eight selectable thermal colour palettes allow you to tailor the Pulsar Thermion 2 XP50 Pro Thermal Imaging Riflescope for use in certain conditions and/or for particular applications:
Clear, smooth, fluid thermal imaging with enhanced colour rendering and high contrast is visible on the Pulsar Thermion 2 XP50 Pro Thermal Imaging Riflescope’s power-saving, 1024x768px, HD AMOLED display, making it ideal for tracking moving targets.
At the push of a button, you can capture and save images and videos. The Pulsar Thermion 2 XP50 Pro Thermal Imaging Riflescope has a 16GB internal memory with the capacity to store tens of thousands of images as well as hours of footage.
Alternatively, photos and videos may be saved to the Pulsar Cloud. Registered users with the Pulsar Stream Vision 2 Android/iOS App installed on their smartphone/tablet will receive 16GB of free Pulsar Cloud storage space. Furthermore, via this app, you can stream footage to your smartphone/tablet in real-time, operate the riflescope remotely using your smart device, and wirelessly update the weapon scope’s software.
Two integrated Wi-Fi interfaces facilitate communication between the Pulsar Thermion 2 XP50 Pro Thermal Imaging Riflescope and the Pulsar Stream Vision 2 App:
Recoil-rated up to 6000 joules and compatible with standard 30mm scope rings, the Pulsar Thermion 2 XP50 Pro Thermal Imaging Riflescope is suitable for use with large calibre rifles such as .375 H&H, 12-gauge, and 9.3x64. It can be used interchangeably with these weapons and, to this end, up to five zeroing profiles, each with ten distance coordinates, may be saved to the riflescope to enable quick changes and fast adjustments.
Further to this, the Pulsar Thermion 2 XP50 Pro Thermal Imaging Riflescope includes an eclectic variety of reticles, including static, ballistic, and scalable, all available in nine colours, allowing you to optimise the weapon scope for use in specific conditions.
The Pulsar Thermion 2 XP50 Pro Thermal Imaging Riflescope is suitable for use in wet environments, high humidity, and heavy rain. It is IPX7-rated making it completely waterproof.
Together, the Pulsar Thermion 2 XP50 Pro Thermal Imaging Riflescope’s internal rechargeable battery and external rechargeable battery offer ten hours of operating time. The external battery can be easily and quickly swapped in the field allowing you to extend your hunting time.
The Pulsar Thermion 2 XP50 Pro Thermal Imaging Riflescope is a highly sensitive, adaptable, and resilient infrared-imaging weapon scope with an eclectic selection of functions for hunting at night and/or in challenging conditions.
Model | Thermion 2 XQ35 Pro | Thermion 2 XQ50 Pro | Thermion 2 XP50 Pro |
SKU | PU-76541 | PU-76548 | PU-76547 |
Main | |||
Sensor | 384x288 pix. @ 17 µm (NETD <25 mK) | 384x288 pix. @ 17 µm (NETD <25 mK) | 640x480 pix. @ 17 µm (NETD <25 mK) |
Objective lens | F35 F/1.0 | F50 F/1.0 | F50 F/1.0 |
Magnification, x | 2.5-10 | 3-12 | 2-16 |
Field of view (HxV), degrees / m@100m | 10.7/18.7 | 7.5/13.1 | 12.4/21.8 |
Detection range, m | 1350 | 1800 | 1800 |
Sensor | |||
Type | uncooled | uncooled | uncooled |
Resolution, pixels | 384x288 | 384x288 | 640x480 |
Pixel pitch, µm | 17 | 17 | 17 |
NETD, mK | <25 | <25 | <25 |
Frame rate, Hz | 50 | 50 | 50 |
Optics | |||
Objective lens | F35 F/1.0 | F50 F/1.0 | F50 F/1.0 |
Magnification, x | 2.5-10 | 3-12 | 2-16 (x4 zoom) |
Field of view (HxV), degrees / m @ 100 m | 10.7/18.7 | 7.5/13.1 | 12.4/21.8 |
Eye relief, mm | 50 | 50 | 50 |
Display | |||
Type | AMOLED | AMOLED | AMOLED |
Resolution, pixels | 1024х768 | 1024x768 | 1024х768 |
Range Performance | |||
Detection range, m | 1350 | 1800 | 1800 |
Reticle | |||
Click value, H/V, mm at 100 m | 18 – 2.5x, 9 – 5x, 4.5 – 10x | 13 – 3x, 6.5 – 6x, 3.25 – 12x | 21 – 2х, 10.5 – 4х, 5.25 – 8х, 2.6 – 16х |
Click range, H/V, mm at 100 m | 3600/3600 | 2600/2600 | 4200/4200 |
Number of preloaded reticles | 10 | 10 | 10 |
Video Recorder | |||
Video / photo resolution, pixel | 1024x768 | 1024х768 | 1024х768 |
Video / photo format | .mp4 / .jpg | .mp4 / .jpg | .mp4 / .jpg |
Built-in memory, GB | 16 | 16 | 16 |
Wi-Fi | |||
Wireless Protocol | Wi-Fi | Wi-Fi | Wi-Fi |
Wireless Standard | 802.11 b/g/n/ac | 802.11 b/g/n/ac | 802.11 b/g/n/ac |
Frequency, GHz | 2.4 / 5 GHz | 2.4 / 5 GHz | 2.4 / 5 GHz |
Environmental Characteristics | |||
Degree of protection, IP code (IEC60529) | IPX7 | IPX7 | IPX7 |
Operating temperature range, °С | -25 – +50 | -25 – +50 | -25 – +50 |
Connections & Compatibilities | |||
Max. recoil power on rifled weapon (Eo), Joules
|
6000 | 6000 | 6000 |
Shock resistance on the smooth-bore rifles, caliber | 12 | 12 | 12 |
Mounting brackets on weapon | 30 | 30 | 30 |
Supported Application | Stream Vision 2 | Stream Vision 2 | Stream Vision 2 |
Power Supply | |||
Output voltage, V | 3.0–4.2 | 3.0–4.2 | 3.0–4.2 |
Battery type | Li-Ion Battery Pack АPS2 (external), Li-Ion Battery Pack APS3 (external)*, Li-Ion Battery Pack APS5 (internal) | Li-Ion Battery Pack АPS2 (external), Li-Ion Battery Pack APS3 (external)*, Li-Ion Battery Pack APS5 (internal) | Li-Ion Battery Pack АPS2 (external), Li-Ion Battery Pack APS3 (external)*, Li-Ion Battery Pack APS5 (internal) |
Capacity, mAh | 2000 (external) + 3200 (external)* + 4900 (internal) | 2000 (external) + 3200 (external)* + 4900 (internal) | 2000 (external) + 3200 (external)* + 4900 (internal) |
Operating time on battery pack (at t=22°C), h * | 10 | 10 | 10 |
External power supply, V | 5 V, 9 V (USB Type-C Power Delivery) | 5 V, 9 V (USB Type-C Power Delivery) | 5 V, 9 V (USB Type-C Power Delivery) |
Weight & Size | |||
Body material | Metal | Metal | Metal |
Dimensions, mm | 399х78х80 | 412x78x83 | 412x78x83 |
Weight, kg | 0.88 | 0.9 | 0.9 |
