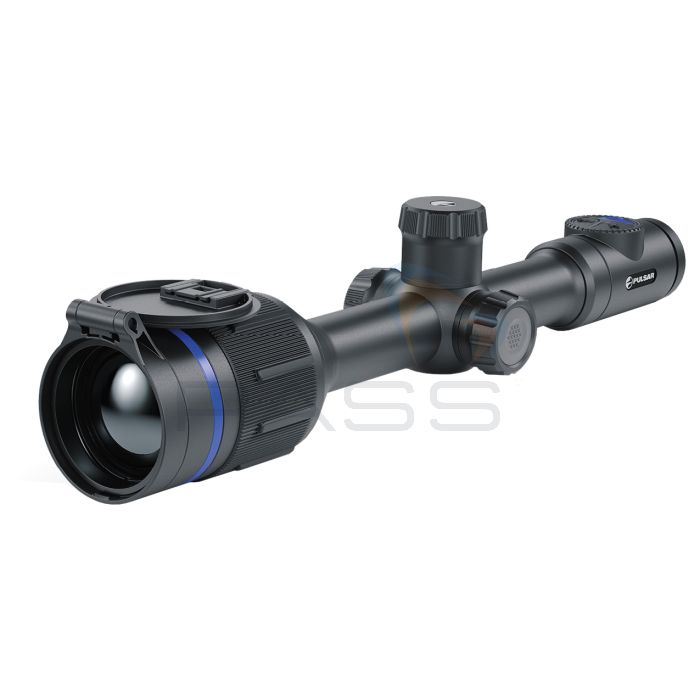

The Thermion 2 XG50 features a highly sensitive 640 x 480 thermal sensor with a 12µm pixel pitch and <40mK NETD, paired with a 50mm f1.0 germanium lens, providing sharp, high-contrast images and a detection range of up to 2300 metres, even in challenging conditions like heavy rain, fog, or snow.
With a base magnification of 3.0-24.0x and up to 8x digital zoom, it allows for precise adjustment in 2x steps or continuously for optimal field of view. Ergonomic focus wheels on both sides ensure quick and precise focusing.
The riflescope's three sensitivity levels, combined with Pulsar’s smoothing filter and adjustable brightness and contrast settings, enable detailed long-range observation. A high-resolution 1024 x 768 AMOLED screen offers clear visuals, and the Picture-in-Picture mode provides a zoomed-in view of the target without losing overall situational awareness.
The dual battery system supports up to 10 hours of use and allows for quick replacement even in darkness. Users can store zeroing settings in five shooting profiles, each supporting multiple rifles or cartridges with up to ten zeroing distances.
Designed to withstand tough conditions, the IPX7-rated, shockproof Thermion 2 XG50 mounts with standard 30mm rings and connects to the Stream Vision 2 app for remote control, firmware updates, and media sharing. With 16GB of internal storage and an additional 16GB of cloud storage, it offers ample space for storing images and videos.
Key Features
- 640 x 480, 12µm, <40mK NETD thermal sensor
- Fast aperture 50mm f1.0 germanium objective lens
- 2300m detection range
- Variable magnification
- 1024 x 768 HD AMOLED display
- Picture-in-picture (PiP) mode
- 8 colour palettes
- 5 shooting profiles
- 10 electronic reticles
- Built-in 3-axis accelerometer gyroscope (slope angle indication)
- 4 observation modes: Forest, Rocks, Identification and User
- 3 calibration modes: manual, semi-automatic and automatic
- Smooth Digital Zoom
- Multiple reticle options
- Scalable reticles (proportional to Zoom)
- 5 zeroing profiles (10 distances per profile)
- One-shot Freeze-Zeroing function
- Precise Zoom zeroing (reducing the MOA per click when zooming in)
- Pixel repair function
- Display-Off function
- Image Boost technology
- Integrated Wi-Fi for remote control and personal device connectivity
- Durable aluminium-alloy housing
- IPX7 waterproof construction
- Recoil rated to .375H&H, 9.3 x 64 and 12-gauge
- Built-in 3200 mAh Battery Pack APS3
- Quick-change rechargeable Li-Ion APS2/APS3 battery packs
- Internal and external battery charging via micro-USB port
- Charge external batteries via the included dual-port battery charger
Microbolometer | |
---|---|
Type | uncooled |
Resolution, pixels | 640 x 480 |
Pixel Pitch, µm | 12 |
NETD, mK | < 40 |
Frame Refresh Rate, Hz | 50 |
Optical Specifications | |
Lens, mm | F50 F/1.0 |
Magnification, x | 3-24 |
Eye relief, mm/inch | 50/1.96 |
Field of view (H), °/m@100 | 8.8/15.4 |
Diopter adjustment, D | -3/+5 |
Detection distance (Object of “deer” type), m/y | 2300 / 2515 |
Aiming Reticle | |
Click Value, mm@100 m - when magnifying, x | 15 mm - 3x 7.5 mm - 6x 3.75 mm - 12x 1.86 mm - 24x |
Click range (H/V), mm@100 m (H/V) | 3000/3000 |
Display | |
Type | AMOLED |
Resolution, pixels | 1024 x 768 |
Operating Features | |
Diameter of the riflescope body to assemble the mounting rings, mm | 30 |
Power Supply, V | 3-4.2 |
Battery type / Capacity / Rated Output Voltage | Li-Ion Battery Pack АPS2 / 2000 mAh / DC 3.7 V (removable) Li-Ion Battery Pack APS3 / 3200 mAh / DC 3.7 V (removable)* Li-Ion Battery Pack APS5 / 4900 mAh / DC 3.7 V (built-in) |
External Power Supply | 5 V, 9 V (USB Type-C Power Delivery) |
Battery Packs (built-in APS5 and removable APS2) operating time at temp. = 22 °C, hrs** | 10 |
Max. recoil power on a rifled weapon, Joules | 6000 |
Max. recoil power on smoothbore weapon,calibre | 12 |
Degree of protection IP code (IEC60529) | IPX7 |
Operating temperature, °С / °F | -25 - +50 / -13 - +122 |
Dimensions with an eyecup, mm/inch | 412x78x83 / 16.22 x 3.07 x 3.27 |
Weight (without removable battery), kg/oz | 0.9 / 31.75 |
Video Recorder | |
Photo / video resolution, pixels | 1024 x 768 |
Video / photo format | .mp4 / .jpg |
Built-in memory | 16 GB |
Wi-Fi Channel*** | |
Frequency | 2.4/5 GHz |
Standard | IEEE 802.11 b/g/n/ac |
Bluetooth | |
Wireless Protocol | BLE 4.2 |
