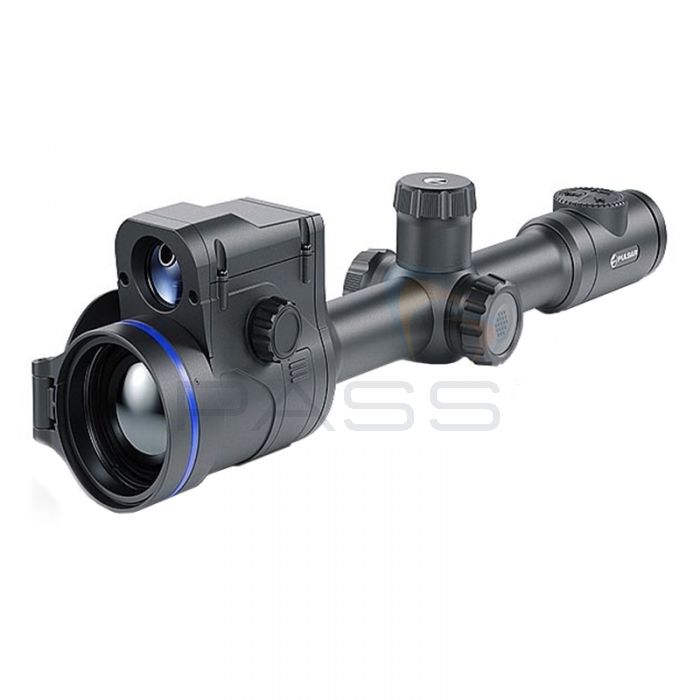

Transform daytime weapons into night-time rifles using the Pulsar Thermion 2 LRF XP50 Pro Thermal Imaging Riflescope with a built-in laser rangefinder (max range 800m). Equipped with a high-definition 25mK thermal sensor and a fast aperture F50/1.0 lens, the Pulsar Thermion 2 LRF XP50 Pro Thermal Imaging Riflescope delivers perfect detail recognition and clear indication of slight temperature differences even in challenging weather conditions (rain and fog) and when thermal contrast is low (cold mornings). It also features variable magnification, a Picture-in-Picture mode, and eight selectable thermal colour palettes. An integrated photo and video recorder can be used to capture and save thermal images and videos to the internal 16GB memory. Built-in Wi-Fi facilitates a connection to iOs/Android smartphones/tablets with the Stream Vision 2 App installed. Via this connection, you can stream images, operate the riflescope remotely, and wirelessly update the weapon scope’s software. Save up to five shooting profiles, each with ten zeroing profiles, to enable use with multiple weapons or cartridges. This lightweight, waterproof (IPX7), and resilient weapon scope with a power-saving, frost-resistant HD AMOLED display is suitable for use with high-calibre rifles (9.3x64, .30-06, .375 H&H) as well as smooth-bore and pneumatic weapons. Finally, it is powered by two rechargeable batteries, a built-in 4.9Ah battery and removable 2Ah battery, that deliver 10 hours of operating time.
Main | |
Sensor | 640x480 @ 17 µm (NETD <25 mK) |
Objective lens | F50/1.0 |
Magnification, x | 2-16 |
Field of view (HxV), degrees / m@100m | 12.4x9.3 / 21.8x16.3 |
Detection range, m | 1800 |
Sensor | |
Type | uncooled |
Resolution, pixels | 640x480 |
Pixel pitch, µm | 17 |
NETD, mK | <25 |
Frame rate, Hz | 50 |
Optics | |
Objective lens | F50 / 1.0 |
Magnification, x | 2 - 16 |
Field of view (HxV), degrees / m @ 100 m | 12.4x9.3 / 21.8x16.3 |
Eye relief, mm | 50 |
Display | |
Type | AMOLED |
Resolution, pixels | 1024x768 |
Range Performance | |
Detection range, m | 1800 |
Laser Rangefinder | |
Safety class for laser equipment according to IEC 60825-1:2014 | 1 |
Wavelength, nm | 905 |
Max. measuring range, m | 800 |
Measurement accuracy, m | ± 1 |
Reticle | |
Click value, H/V, mm at 100 m | 21 / 21 (on minimum magnification) |
Click range, H/V, mm at 100 m | 4200 / 4200 |
Number of preloaded reticles | 10+ |
Video Recorder | |
Video/photo resolution, pixel | 1024x768 |
Video / photo format | .mp4 / .jpg |
Built-in memory, GB | 16 |
Wi-Fi | |
Wireless Protocol | Wi-Fi |
Wireless Standard | IEEE 802.11 b/g/n/ac |
Frequency, GHz | 2.4 / 5 |
Environmental Characteristics | |
Degree of protection, IP code (IEC60529) | IPХ7 (waterproof) |
Operating temperature range, °С | -25 – +50 |
Connections & Compatibilties | |
Max. recoil power on rifled weapon (Eo), Joules | 6000 |
Shock resistance on the smooth-bore rifles, caliber | 12 |
Mounting brackets on weapon | Standard 30 mm rings |
Remote control | Pulsar BT (optional) |
Supported Application | Stream Vision 2 |
Power Supply | |
Output voltage, V | 3.0 – 4.2 |
Battery type | Dual Li-Ion B-Pack Mini Power System: 2 A·h Changeable Battery (external) / 4.9 A·h Battery (internal) |
Capacity, mAh |
2000 (external) + 4900 (internal)
|
Operating time on battery pack (at t=22°C), h * | 10 |
External power supply, V | USB type С (5V) |
Weight & Size | |
Body material | Aluminum alloy |
Dimensions, mm | 420x78,5x94,5 |
Weight, kg | 0.97 |
