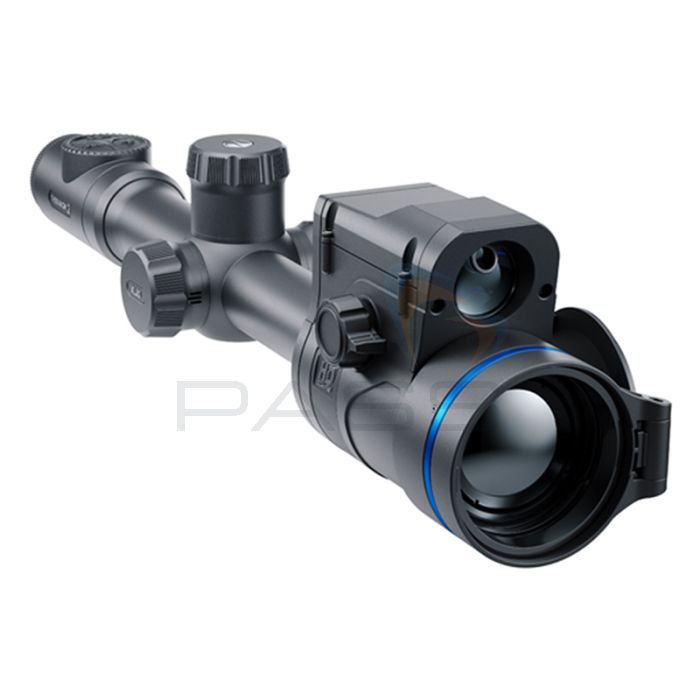

The Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope is an infrared weapon scope equipped with a 1024 x 768px HD thermal resolution sensor and F50/1.0 germanium lens. These, combined with adjustable sensor sensitivity amplification, filtration algorithms, eight selectable thermal colour palettes, and a detailed 8x digital zoom, ensure the scope delivers clear, detailed thermal imaging regardless of conditions. The Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope also offers a Picture-in-Picture mode, precise laser rangefinder, and adjustable brightness and contrast settings. Hours of footage and thousands of images may be saved to the Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope’s integrated 64GB memory. Furthermore, up to ten shooting profiles, each with a maximum of ten zeroing values, can be saved to the internal memory and users may select from ten reticle shapes in nine colours. Other practical features include a ten-hour operating time, high-impact-resistant design, and integrated Wi-Fi which enables remote operation via the supplied control or the Stream Vision 2 App. The Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope is a sophisticated yet simple-to-use infrared imaging scope.
Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope Key Features
- A thermal imaging weapon scope suitable for use with a variety of high-impact rifles
- 1024 x 768px HD thermal sensor
- Germanium F50/1.0 objective lens
- Wide field of view
- Ergonomic focusing wheels on either side of the scope
- Adjustable sensor sensitivity amplification
- Filtration algorithms
- Variable magnification: 1.75x – 14x (x8 digital zoom)
- Adjust the digital zoom in x2 intervals or continuously
- Picture in Picture mode
- Eight selectable colour palettes: White Hot, Black Hot, Red Hot, Rainbow, Ultramarine, Red Monochrome, Sepia, and Violet
- Adjustable brightness and contrast settings
- Save selected brightness and contrast settings with the User Mode
- Precise laser rangefinder with a range up to 800m
- Ballistics algorithm calculates the suggested POA
- Ten reticle shapes (shot type, ballistic, scalable, and regular) available in nine colours
- Save up to ten shooting profiles each with ten zeroing distances
- Integrated 64Gb memory
- Built-in Wi-Fi interface
- Compatible with the Stream Vision 2 App
- Stream footage to a smartphone/tablet with the Stream Vision 2 App installed
- Operate the scope remotely via the Stream Vision 2 App
- Update the scope’s software via the Stream Vision 2 App
- Includes a wireless remote control
- Waterproof
- Operating temperature range: -25°C to +50°C
- Frost-resistant AMOLED display
- High-impact design
- Suitable for use with smooth-bore, pneumatic, and rifled hunting weapons with 9.3x64, .30-06, .300, and .375H&H calibres
- Compatible with 30mm rings
- Powered by two rechargeable batteries: a built-in 4.9Ah battery and a replaceable battery
- Supplied with two replaceable batteries (2Ah and 3.2Ah)
- Operating time: 10 hours
- Sophisticated yet simple-to-use infrared imaging scope
What’s Included?
- Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope
- Removable Rubber Eyecup
- APS2 Battery Pack
- APS3 Battery Pack
- Wireless Remote Control
- APS Battery Charger
- Power Adapter
- USB Type-C Cable with USB Type-A Adapter
- Carrying Case
- Lens Cleaning Cloth
- Quick User Manual
- APS3 Battery Cover
Pulsar Thermion 2 LRF XL50 Thermal Imaging Riflescope Technical Specifications
Microbolometer | |
Type | uncooled |
Resolution, pixels | 1024x768 |
Pixel Pitch, µm | 12 |
NETD, mK | < 35 |
Frame refresh rate, Hz | 50 |
Optical Specifications | |
Lens, mm | F50 F/1.0 |
Magnification, x | 1.75 - 14 |
Eye relief, mm/inch | 50/1.96 |
Field of view (H), °/m@100 | 14/24.6 |
Diopter adjustment, D | -3/+5 |
Detection distance (Object of "deer" type), m/y | 2300/2515 |
Aiming Reticle | |
Click value, mm@100 m – when magnifying, x | 24 mm – 1.75х |
12 mm – 3.5х | |
6 mm – 7х | |
3 mm – 14х | |
Click range (H/V), mm@100 m | 4800/4800 |
Display | |
Type | AMOLED |
Resolution, pixels | 1024х768 |
Operating Features | |
Diameter of the riflescope body to assemble the mounting rings, mm | 30 |
Power Supply, V | 3–4.2 |
Battery type / Capacity / Rated Output Voltage |
Li-Ion Battery Pack АPS2 / 2000 mAh / DC 3.7 V (removable) or Li-Ion Battery Pack APS3 / 3200 mAh / DC 3.7 V (removable)
Li-Ion Battery Pack APS5 / 4900 mAh / DC 3.7 V (built-in) |
External Power Supply | 5 V, 9 V (USB Type-C Power Delivery) |
Battery Packs (built-in APS5 and removable APS2/APS3) operating time at temp. = 22 °C, hrs* | 6/7 |
Max. recoil power on rifled weapon, Joules | 6000 |
Max. recoil power on smoothbore weapon, caliber | 12 |
Degree of protection IP code (IEC60529) | IPX7 |
Operating temperature, °С / °F | -25 – +50 / -13 – +122 |
Dimensions with an eyecup, mm/inch | 426x78.5x94.5 / 16.77x3.09x3.72 |
Weight (without removable battery), kg/oz | 1.03 / 36.33 |
Video Recorder | |
Photo / video resolution, pixels | 1024x768 |
Video / photo format | .mp4 / .jpg |
Built-in memory | 64 GB |
Wi-Fi Channel** | |
Frequency | 2.4/5 GHz |
Standard | IEEE 802.11 b/g/n/ac |
Laser Rangefinder | |
Wavelength, nm | 905 |
Max. Measurement Range, m/y*** | 800 / 874.9 |
Measurement Accuracy, m | 1 |
Notes | * The actual operating time depends on the intensity of using Wi-Fi, video recorder, Bluetooth and laser rangefinder. |
** The reception range may vary depending on various factors: obstacles, other Wi-Fi networks. | |
*** Depends on the characteristics of the object under observation and environmental conditions. |
