Pulsar Telos LRF XP50 Thermal Imaging Upgradable Monocular
Description

Components and software solutions in high-tech industries are being improved every year. Thermal imaging is no exception. Over time, users' choices and preferences change. In addition, with experience, users evolved their requirements for the device's capabilities and operation. Telos thermal imaging monoculars are built with technology and user needs in mind. The Pulsar PU-77492 is the first line of thermal imaging devices on the market with the option of a technical upgrade at the client's request.

Become a Telos owner and gain the opportunity to improve it flexibly and gainfully for years to come. Fit it with powerful optics, a higher resolution sensor, display, and more efficient and functional electronics, or equip the thermal imaging device with a laser rangefinder and additional optical channels so that you always have the latest device but at the mere cost of upgrades.

A highly sensitive thermal imaging sensor with NETD <18mK ensures stunning thermal image quality and perfect detail recognition even in the hardest weather conditions when thermal contrast is low. The smallest temperature differences will be visible during the rainfall, fog, or cold mornings, in the most difficult conditions for thermal imagers.

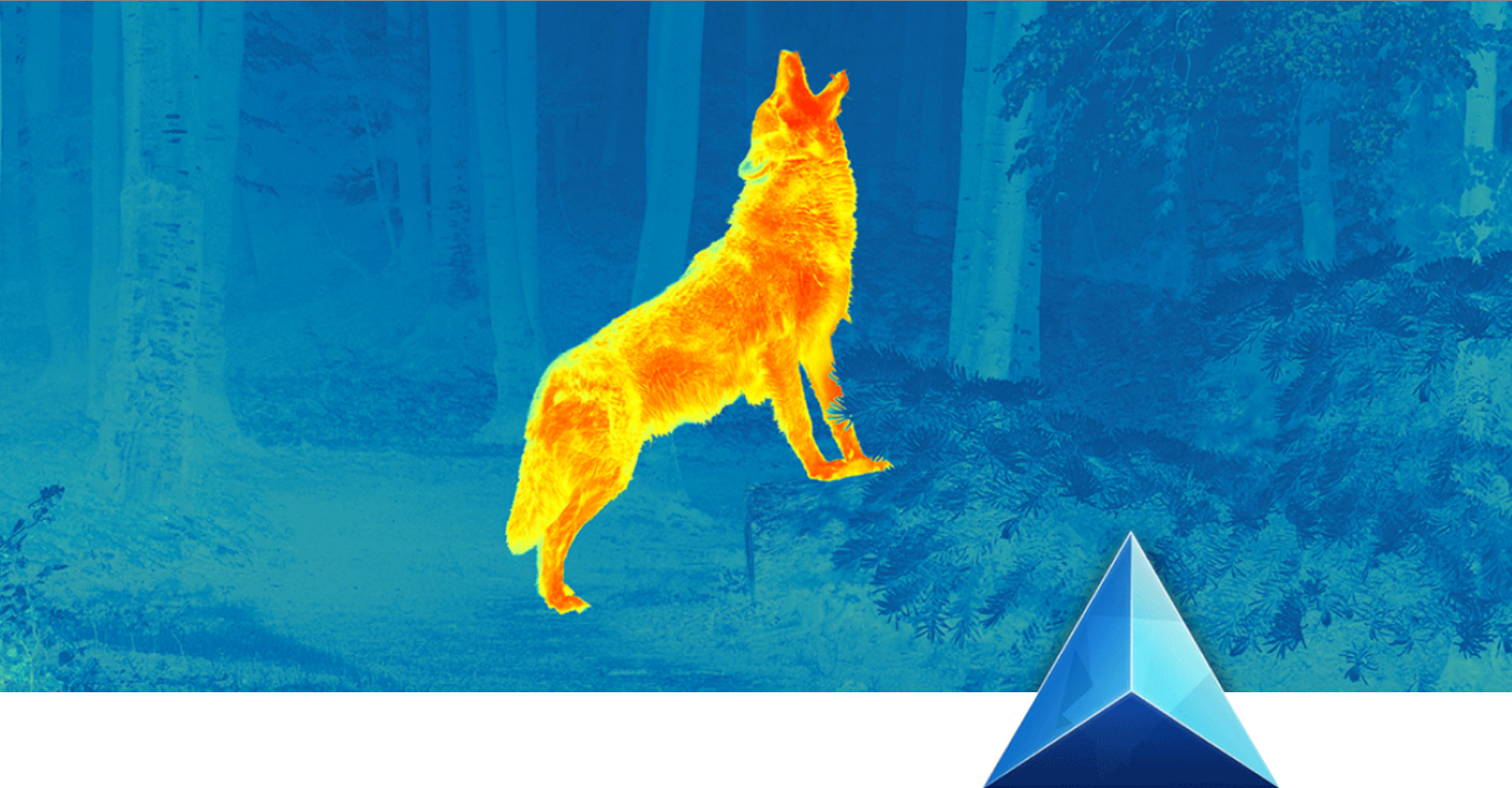

Pulsar Image Boost gives Telos thermal imaging the highest level of detail, clarity, and contrast with a set of original image processing algorithms. Telos thermal monoculars render complex scenes in a wide range of halftones with evenly emitting low-contrast objects, such as the sky, grass, and water surfaces. Software detailing and sharpening of objects at different distances make the thermal image highly informative.

Manually increasing the thermal imaging sensor sensitivity improves the quality of animal detection when observation conditions worsen. A smoothing filter and a wide range of brightness and contrast settings make prolonged observation time comfortable.

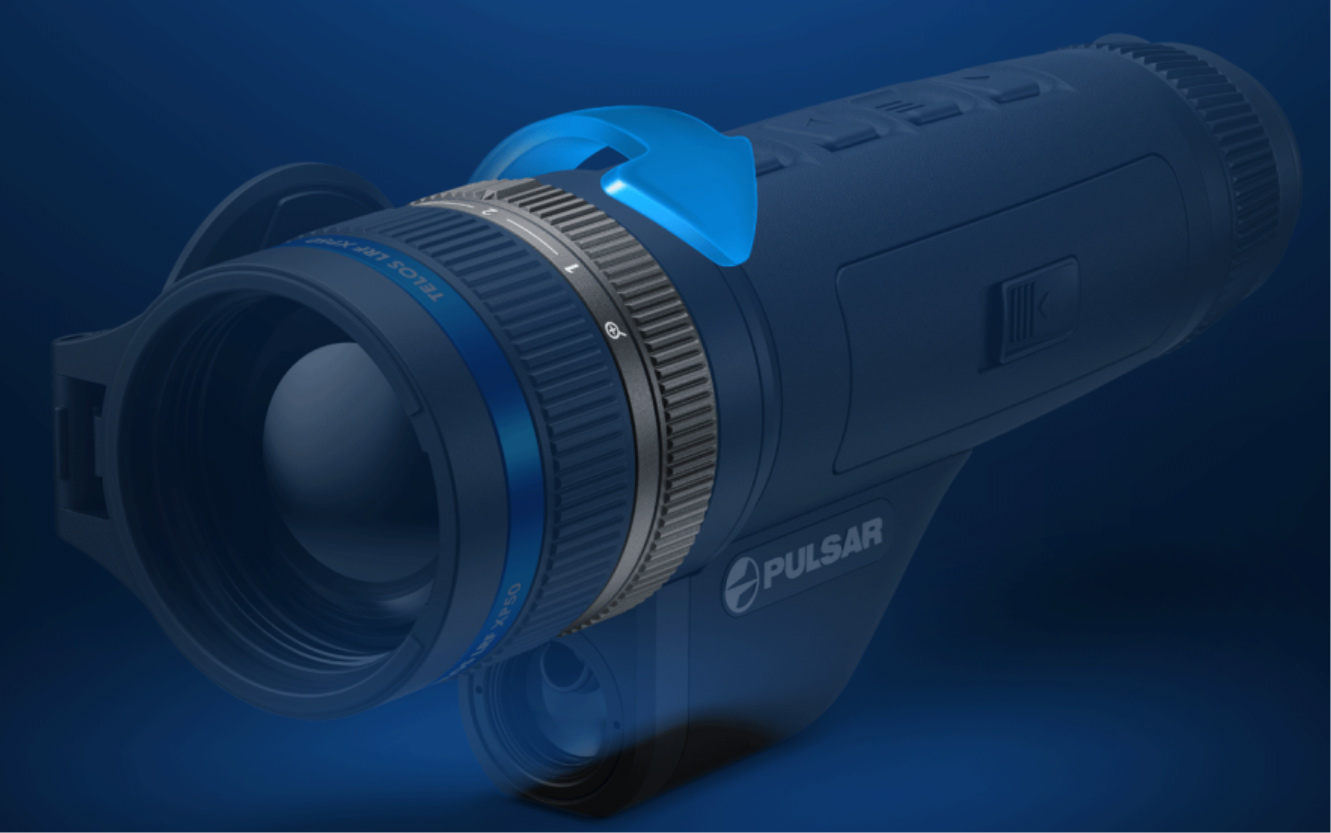

You can ideally adjust the image in Telos with one hand - the focusing and smooth zoom rings are located on the lens in the classic layout, one by one, as in professional camera objective lenses. The consistent arrangement of the rings enables getting a clear image with the required magnification quickly and with minimal effort.

Understanding the target distance is an essential factor in making the right decisions. A built-in laser rangefinder with a range of up to 1 kilometre allows you to measure distances in single measurements and continuous scanning modes with an accuracy of ± 1 metre for quick and error-free assessment of the situation.

Key Features

  • Upgradable device
  • Highly sensitive thermal sensor
  • Advanced Pulsar Image boost technology
  • Objective ring zoom control
  • Precise laser ranging up to 1000m

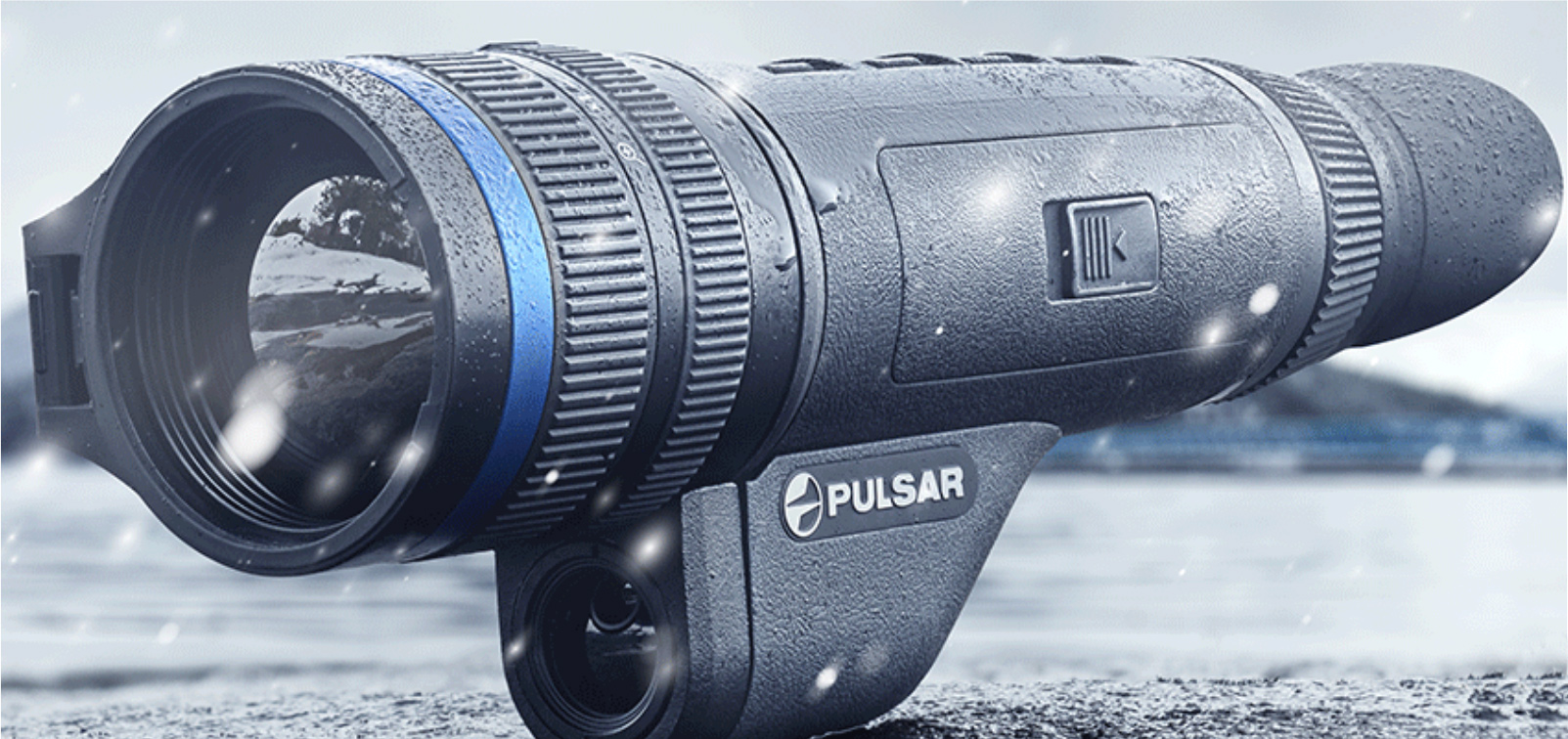

  • Built for the toughest conditions
  • Replaceable battery pack with direct plug & wireless fast charge options
  • Ergonomic, nonslip rubber-coated housing
  • Adaptable for left- and right-handed use
  • Ergonomic and functional carrying case
  • Customizable user interface
  • 1800 m detection range
  • Fast aperture F50/1.0 germanium lens
  • Built-in video recorder with 32GB internal memory
  • Stream Vision 2. Wi-Fi integration with iOS and Android devices
  • High-contrast AMOLED display
  • Dual Wi-Fi waveband support 2.4 / 5 GHz
  • Operation in extreme temperatures -25 to +40°C
  • IPX7 submersion waterproof rated
  • Selection of 8 color palettes
Pulsar Telos LRF XP50 Thermal Imaging Upgradable Monocular being used by a hunter. Pulsar Telos LRF XP50 Thermal Imaging Upgradable Monocular in the rain demonstrating it robust nature. Pulsar Telos LRF XP50 Thermal Imaging Upgradable Monocular highlighting the quality of the image booster. Pulsar Telos LRF XP50 Thermal Imaging Upgradable Monocular showing the ring zoom feature
Downloads

Manuals & Guides

Pulsar Telos LRF XP50 Thermal Imaging Upgradable Monocular User Manual Manuals & Guides
Tech Specs
Telos LRF XP50
Main Sensor 640x480 pix. @ 17 µm (NETD <18 mK)
Objective Lens F50 / 1.0
Magnification, x 2.5 - 10 (x4 digital zoom)
Field of View (HxV), Degrees / m@100m 12.4x9.3 / 21.8x16.3
Detection Range, m 1800
Sensor Type uncooled
Resolution, Pixels 640x480
Pixel Pitch, µm 17
NETD, mK <18
Frame Rate, Hz 50
Optics Objective Lens F50 / 1.0
Magnification, x 2.5 - 10 (x4 digital zoom)
Field of View (HxV), Degrees / m@100m 12.4x9.3 / 21.8x16.3
Eye Relief, mm 15
Display Type AMOLED HD
Resolution, Pixels 1024x768
Range Performance Detection Range, m 1800
Laser Rangefinder Safety Class for Laser Equipment according to IEC 60825-1:2014 1
Wavelength, nm 905
Max. Measuring Range, m 1000
Measurement Accuracy, m ± 1
Video Recorder Video / Photo Resolution, Pixel 1024x768
Video / Photo Format .mp4 / .jpg
Built-in Memory, GB 32
Wi-Fi Wireless Protocol Wi-Fi
Wireless Standard IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz 2.4 / 5
Environmental Characteristics Degree of protection, IP code (IEC60529) IPX7 (waterproof)
Operating temperature range, °С -25 +50
Connections and Compatibilities Mount, Type 1/4"
Supported Application Stream Vision 2
Power Supply Output Voltage, V 3.0 - 4.2
Battery Type LPS 7i Li-Ion Battery Pack
Capacity, mAh 6400
Operating Time on Battery Pack (at t=22°C), h * 8.5
External Power Supply, V 5V, 9V (USB Type-C Power Delivery)
Weight & Size Body Material Rubber armoured reinforced plastic
Dimensions, mm 238x72x90
Weight, kg 0.58 (w/o battery) / 0.72 (with the LPS7i battery)
