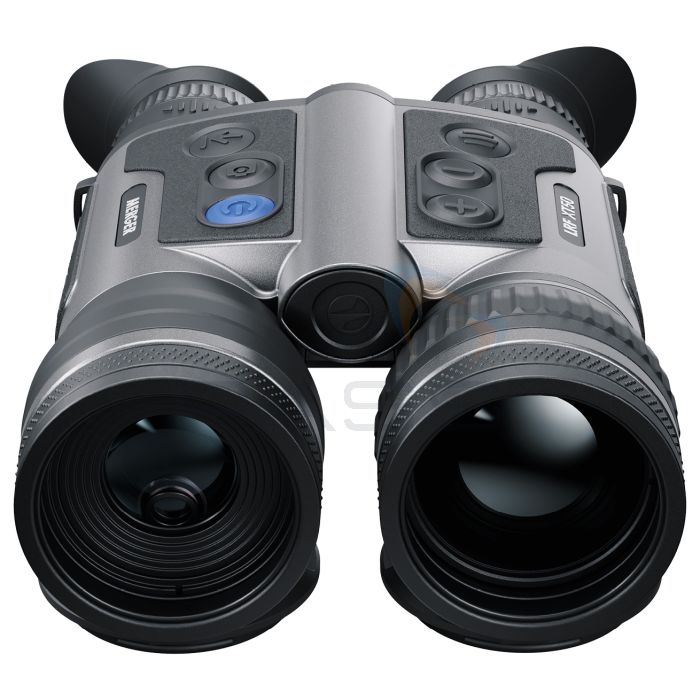

Pulsar Merger LRF XT50 Thermal Imaging Binoculars (50Hz)
Pulsar Merger XT50: Next-Level Image Quality
The Pulsar Merger LRF XT50 has a 1280x1024 XT sensor and image stabilisation technology, delivering extraordinary image detail free from distracting motion blur. It also offers a wide 17.5-degree field of view and maintains exceptional image quality during zooming.
The thermal sensor seamlessly highlights the important anatomical features of observed animals, while revealing every detail of the surrounding terrain. Exceptional image clarity is partially attributed to the minimal image compression, which transmits the thermal image to the binocular display with almost no loss of detail, ensuring superb image quality with minimal noise.
Revolutionary image stabilisation ensures that animals or objects of interest are observed steadily, even while panning the binoculars across the field of view during searching and scanning. The large-format 1280x1024, 12µm thermal sensor, combined with the powerful 50mm f1.0 germanium objective lens, achieves a detection range of up to 2300m.
Key Features
- AMOLED displays with a resolution of 1280 x 960
- 17.5° field of view
- Significantly expand your observation
- Reduce scanning back and forth when searching for heat signatures
- Classic daytime binocular design
- Remain comfortable and fatigue-free
- Ergonomically designed
- Twin 1280x960 HD AMOLED displays reveal every detail whilst reducing eye strain
- 8-colour display palette
- Designed to enable effective observation of the field of view
- Optimise the device for specific scenarios and adapt to changing conditions
- 3 calibration modes: manual, semi-automatic and automatic
- Magnification range of 2.0-16.0 x
- Long detection distance
- Smooth digital zoom
- 3 levels of sensitivity enhancement: Normal, High, Ultra
- Picture-in-Picture mode
- Built-in laser rangefinder
- Extended distance measurement range of 1500m
- Ascertaining the distance between you and an observed object with an accuracy of ±1m
- Display functions turn off with the proximity sensor
- Display dimming function
- Auto shutdown function
- Image stabilization function
- Defective Pixel Repair function
- Device firmware update using the free Stream Vision 2 App
- Wide operating temperature range -25 °С - +50°C (-13 °F - +122 °F)
- Completely waterproof IPX7
- Tripod mount
- Built-in video and sound recorder
- Still image capture capabilities allow you to watch back on every memorable moment from your observations
- Store images and videos with 64GB of internal memory or on the cloud via the Stream Vision 2 app
- Integration with iOS and Android devices
- Wi-Fi remote control and viewing using a smartphone
- Compatible with the Stream Vision 2 App
- Wide range of connectivity features
- Remote control feature
- Retain complete control over digital functions during tripod-mounted observations
- Dual battery system
- Built-in, rechargeable Li-Ion battery
- Quick Change Li-Ion APS3 Battery Pack
- Up to 6 hours of battery life
- Continue your observations through the day and into the night
- Charging from USB Power Bank
- Quick-Charge power delivery
What's Included?
- Merger LRF XT50 thermal binocular
- APS3 Battery Pack (2 pcs.)
- APS Battery Charger
- Power adapter
- USB Type-C cable with USB Type-A adapter
- Carrying case
- Neck strap
- Quick-Start guide
- Lens cloth
- Pulsar Warranty card
- Tripod adapter
Videos
Introduction
Uncompromised HD quality | Merger LRF XT50
| Microbolometer | |
|---|---|
| Type | uncooled |
| Resolution, Pixels | 1280 x 1024 |
| Pixel Pitch, µm | 12 |
| NETD, mK | < 40 |
| Frame Rate, Hz | 50 |
| Optical | |
| Lens, mm | F50 / 1.0 |
| Continuous Digital Zoom, x | 2 - 16 |
| Sensor | 1280x1024 @ 12 µm (NETD < 40 mK) |
| Objective Lens | F50 / 1.0 |
| Magnification, x | 2 - 16 |
| FOV (HxV) Degrees / m@100m | 17.5 x 14 / 30.7 x 24 |
| Detection Range | 2300 m |
| Digital Zoom | 2x/4x/8x |
| Minimum Focus Distance, m/y | 5 / 5.47 |
| Eye Relief, mm/inch | 15 / 0.59 |
| Exit Pupil Diameter, mm | 3.5 |
| Field of View (HxV), Degrees / m@100m | 17.5 / 30.7 |
| Diopter Adjustment, D | -5/+4 |
| Interpupillary Distance Adjustment, mm | 63-74 |
| Range of Detection (Deer Type Object), m/y | 2300 / 2515 |
| Display | |
| Type | AMOLED HD |
| Resolution, Pixels | 1280 x 960 |
| Laser Rangefinder | |
| Max. Measuring Range, m/y* | 1500 / 1640 |
| Measurement Accuracy, m | ± 1 |
| Safety Class for Laser Equipment according to IEC 60825-1:2014 | 1 |
| Wavelength, nm | 905 |
| Video Recorder | |
| Video / Photo Resolution, Pixel | 1280 x 960 |
| Video / Photo Format | .mp4 / .jpg |
| Built-in Memory, GB | 64 |
| Wi-Fi** | |
| Wireless protocol | Wi-Fi |
| Wireless Standard | IEEE 802.11 b/g/n/ac (WPA) |
| Frequency, Ghz | 2.4 / 5 |
| Environmental Characteristics | |
| Degree of Protection IP Code (IEC60529) | IPX7 (waterproof) |
| Operating Temperature Range, °С /° F | -25 … +50 / -13 … 122 |
| Connections & Compatibilities | |
| Mount Type | 1/4" socket |
| Supported Application | Stream Vision 2 |
| Weight & Size | |
| Body Material | Magnesium alloy |
| Dimensions, mm / inch | 197 x 140 x 72 / 7.8 x 5.5 x 2.8 |
| Weight, kg / oz | 0.95 / 34 (batteries included) |
| Operational | |
| Power Supply, V | 3.7 |
| Battery Type / Capacity / Output Voltage | Li-Ion Battery Pack APS3 / 3200 mAh / DC 3.7 V(removable) Li-Ion Battery Pack / 4000 mAh / DC 3.7 V (built-in) |
| External power supply | 5V |
| Operating Time on Battery Pack (att=22°C), h*** | 6 |
| * Depends on the characteristics of the object under observation and environmental conditions. ** The reception range may vary depending on various factors: obstacles, and other Wi-Fi networks. *** Actual operating time depends on the extent of use of Wi-Fi, an integrated video recorder, and an integrated laser rangefinder. |
|
Reviews
Additional Information
| SKU | PU-77486 |
|---|---|
| Manufacturer Part Code | PUL-77486 |
