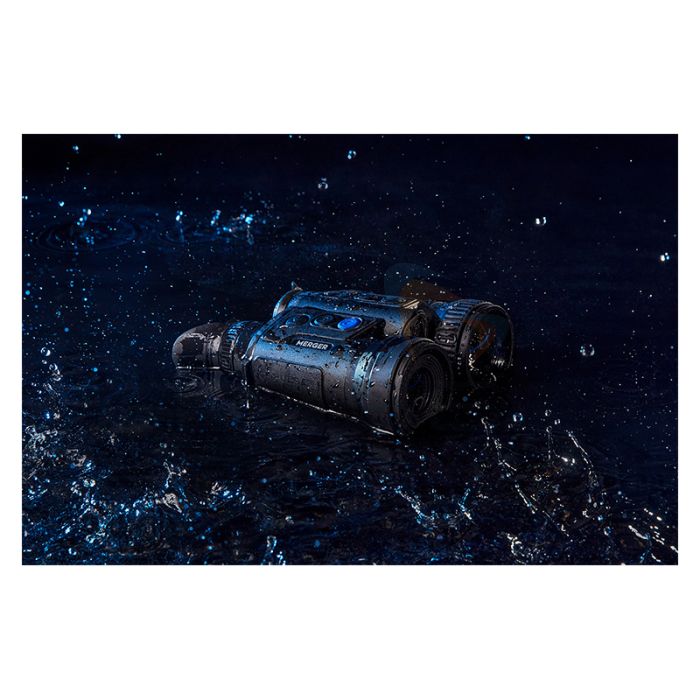

Ideal for outdoor applications such as hunting, scouting, and spotting, the Pulsar Merger LRF XP50 Pro Thermal Imaging Binoculars are comfortable, ergonomic, powerful infrared-imaging binoculars. Capturing clear, sharp thermal imaging even in challenging weather conditions such as rain and fog, they are equipped with a 640x480px IR resolution, <25mk thermal sensitivity, and a fast aperture F50/1.0 germanium lens. In addition to this, the Pulsar Merger LRF XP50 Pro Thermal Imaging Binoculars offer advanced image-enhancing algorithms, variable magnification, eight selectable thermal colour palettes, long 1800m detection range (for a 1.8m-tall object), and a precise laser rangefinder. Images and footage are visible on the high-contrast HD AMOLED display and can be captured and saved to the internal memory or Pulsar Cloud. Furthermore, integrated Wi-Fi and compatibility with Pulsar’s Stream Vision 2 App enables real-time image streaming, remote operation, and wireless software updates. Ergonomic, compact, and lightweight, the fully waterproof (IPX7) Pulsar Merger LRF XP50 Pro Thermal Imaging Binoculars are contained in a light yet strong magnesium alloy housing and will remain functional at temperatures ranging from -25°C to +50°C. To maximise user comfort, the interpupillary distance is adjustable between 56mm and 71mm and function buttons have been ergonomically placed with the most used functions able to be activated with a single touch. Finally, the Pulsar Merger LRF XP50 Pro Thermal Imaging Binoculars are powered by a built-in 4Ah battery and removable 3.2Ah battery; together, these cells offer ten hours of operating time.
Main | |
Sensor | 640x480 @ 17 µm (NETD <25 mK) |
Objective lens | F50/1.0 |
Magnification, x | 2.5 – 20 (x8 zoom) |
Field of view (HxV), degrees / m@100m | 12.4x9.3 / 21.8x16.3 |
Detection range, m | 1800 |
Sensor | |
Type | uncooled |
Resolution, pixels | 640x480 |
Pixel pitch, µm | 17 |
NETD, mK | <25 |
Frame rate, Hz | 50 |
Optics | |
Objective lens | F50/1.0 |
Magnification, x | 2.5 – 20 |
Field of view (HxV), degrees / m @ 100 m | 12.4x9.3 / 21.8x16.3 |
Interpupillary distance adjustment, mm | 56 - 71 |
Eye relief, mm | 15 |
Display | |
Type | AMOLED HD |
Resolution, pixels | 1024x768 |
Range Performance | |
Detection range, m | 1800 |
Laser Rangefinder | |
Safety class for laser equipment according to IEC 60825-1:2014 | 1 |
Wavelength, nm | 905 |
Max. measuring range, m | 1000 |
Measurement accuracy, m | ± 1 |
Video Recorder | |
Video/photo resolution, pixel | 1024x768 |
Video/photo format | .mp4 / .jpg |
Built-in memory, GB | 16 |
Wi-Fi | |
Wireless Protocol | Wi-Fi |
Wireless Standard | IEEE 802.11 b/g/n/ac (WPA) |
Frequency, GHz | 2.4 / 5 |
Environmental Characteristics | |
Degree of protection, IP code (IEC60529) | IPХ7 (waterproof) |
Operating temperature range, °С | -25 – +50 |
Connections & Compatibilities | |
Mount, type | 1/4" socket |
Supported Application | Stream Vision 2 |
Power Supply | |
Output voltage, V | 3.7 |
Battery type | Dual Li-Ion Power System: 3.2 A·h Changeable Battery (external) / 4.0 A·h Battery (internal) |
Capacity, mAh |
3200 (external) + 4000 (internal)
|
Operating time on the battery pack (at t=22°C), h *
|
10 |
External power supply, V | 5 (USB Type C) |
Weight & Size | |
Body material | Magnesium alloy |
Dimensions, mm | 196x143x76 |
Weight, kg | 0.8 |
