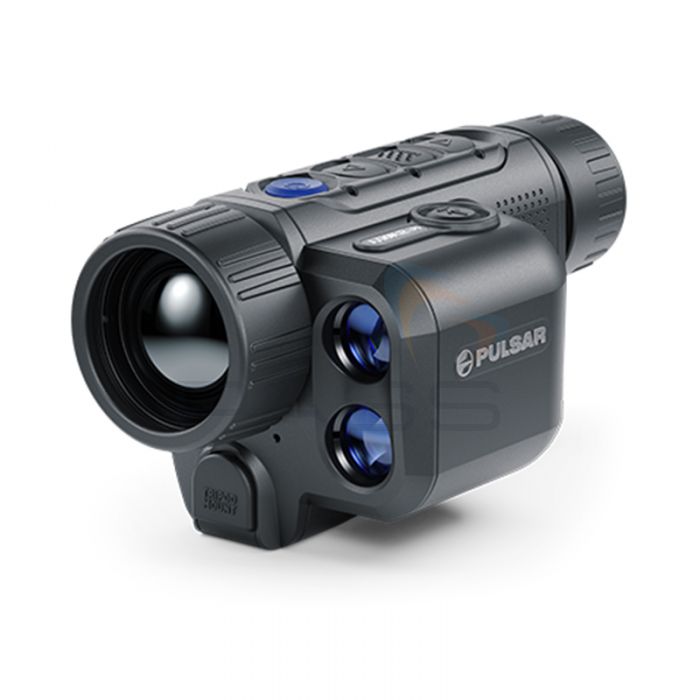

The Pulsar Axion 2 LRF XG35 Thermal Imaging Monocular is a thermal imager featuring a European Lynred sensor with a 640x480px resolution (12µm pixel size), 40mk thermal sensitivity, germanium F35/1.0 fast-aperture lens, enhanced image processing algorithms, smoothing filter, and fine brightness and contrast adjustments. It offers a 1750m detection range (for a 1.8m-tall object) even in complete darkness and also features imaging functions such as a variable magnification, Picture-in-Picture mode, and eight selectable colour palettes. Images and footage are visible via the high-contrast AMOLED display and may be saved to the Pulsar Axion 2 LRF XG35 Thermal Imaging Monocular or Pulsar Cloud. Built-in 2.4GHz and 5GHz Wi-Fi enable communication with Pulsar’s Stream Vision 2 App facilitating image streaming, remote operation, and wireless software updates. This compact, lightweight (350g), rugged thermal scope is housed in a light but strong magnesium alloy casing and is fully waterproof (IPX7). Finally, the Pulsar Axion 2 LRF XG35 Thermal Imaging Monocular is powered by a high-capacity APS5 rechargeable battery which delivers an 11-hour operating time. The Pulsar Axion 2 LRF XG35 Thermal Imaging Monocular is a small, sensitive, simple-to-use thermal imager suitable for scouting, spotting, and hunting.
Main | |
Sensor | 640x480 pix. @ 12 µm (NETD <40 mK) |
Objective lens | F35/1.0 |
Magnification, x | 2.5 – 20 (x8 zoom) |
Field of view (HxV), degrees / m@100m | 12.5x9.4 / 21.9x16.4 |
Detection range, m | 1750 |
Sensor | |
Type | uncooled |
Resolution, pixels | 640x480 |
Pixel pitch, µm | 12 |
NETD, mK | <40 |
Frame rate, Hz | 50 |
Optics | |
Objective lens | F35/1.0 |
Magnification, x | 2.5 – 20 |
Field of view (HxV), degrees / m @ 100 m |
12.5x9.4 / 21.9x16.4
|
Eye relief, mm | 14 |
Display | |
Type | AMOLED HD |
Resolution, pixels | 1024x768 |
Range Performance | |
Detection range, m | 1750 |
Laser Rangefinder | |
Safety class for laser equipment according to IEC 60825-1:2014 | 1 |
Wavelength, nm | 905 |
Max. measuring range, m | 1000 |
Measurement accuracy, m | ± 1 |
Video Recorder | |
Video/photo resolution, pixel | 1024x768 |
Video / photo format | .mp4 / .jpg |
Built-in memory, GB | 16 |
Wi-Fi | |
Wireless Protocol | Wi-Fi |
Wireless Standard | IEEE 802.11 b/g/n/ac |
Frequency, GHz | 2.4 / 5 |
Environmental Characteristics | |
Degree of protection, IP code (IEC60529) | IPХ7 (waterproof) |
Operating temperature range, °С | -25 – +40 |
Connections & Compatibilities | |
Mount, type | 1/4" |
Supported Application | Stream Vision 2 |
Power Supply | |
Output voltage, V | 3.0 – 4.2 |
Battery type | APS 5 Li-ion Battery Pack |
Capacity, mAh | 4900 |
Operating time on the battery pack (at t=22°C), h * | 7 |
External power supply, V | 5 V, 9 V (USB Type-C) |
Weight & Size | |
Body material | Magnesium alloy |
Dimensions, mm | 152x74x75 |
Weight, kg | 0.35 |
