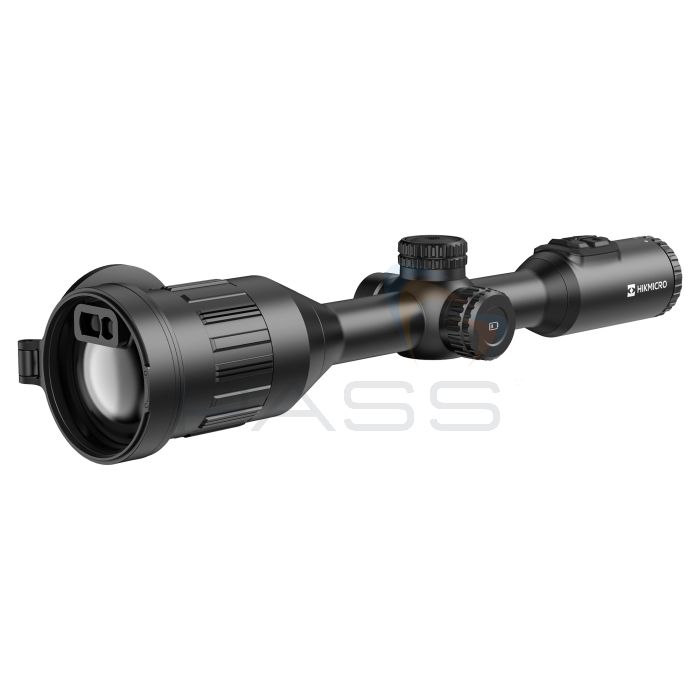

Hikmicro STELLAR 3.0 LRF Thermal Scope
- 2560 x 2560 resolution
- Built-in laser rangefinder up to 1000 m
- SH50L, SQ50L & SX60L models
- High shock resistance up to 1000 g/0.4 ms
SKU
STELLAR-3.0
The Hikmicro STELLAR 3.0 series revolutionizes thermal riflescopes with advanced sensor technology and innovative software. It combines features like shutterless technology and an integrated Laser Range Finder (LRF) into a traditional design, delivering a superior hunting experience.
With next-generation sensors, the STELLAR 3.0 provides highly detailed images for precise target identification and clear views, even in challenging conditions such as rain or fog. The integrated 1000m LRF discreetly measures target distance without compromising the scope's appearance, while the ballistic calculator automatically adjusts holdover points for various shooting distances, even in total darkness.
The scope’s viewfinder offers a wide field of view and customizable display for a familiar, user-friendly experience. Advanced features like Image Pro 2.0 enhance image clarity, and the innovative shutterless technology ensures smooth, uninterrupted operation.
Powered by internal and removable 18650 batteries, the STELLAR 3.0 provides up to nine hours of use, with a clear display that monitors battery levels for effective power management.
Key Features
- @12 μm thermal detector
- Resolution: 384 x 288 (SH50L) 640 x 512 (SQ50L) 280 x 1024 (SX60L)
- High-sensitivity thermal module
- SH50L & SQ50L - NETD<15 mK (@25°C, F# = 1.0)
- SX60L - NETD<18 mK (@25°C, F# = 1.0)
- 50 mm, F1.0 lens with a detection range of up to 2600 m (SH50L & SQ50L)
- 60 mm, F1.0 lens with a detection range of up to 3100 m (SX60L)
- 2560 x 2560 resolution 1.03-inch OLED display
- HIKMICRO Shutterless Image System (HSIS) (SH50L & SQ50L)
- Built-in laser rangefinder up to 1000 m, with ballistic calculation
- Rechargeable internal batteries and external battery
- Continuous operation: 9h (SH50L & SQ50L) 10h (SX60L)
- High shock resistance up to 1000 g/0.4 ms
Product Range
- Hikmicro SH50L STELLAR 3.0 Thermal Scope (50Hz) 384 x 288px
- Hikmicro SQ50L STELLAR 3.0 Thermal Scope (50Hz) 640 x 512px
- Hikmicro SX60L STELLAR 3.0 Thermal Scope (25Hz) 1280 x 1024px
Technical Information
Specification
| SH50L | SQ50L | SX60L | |
|---|---|---|---|
| Thermal Module | |||
| Image Sensor | VOx Uncooled Focal Plane Arrays | ||
| Max. Resolution | 384 x 288 | 640 x 512 | 1280 x 1024 |
| Frame Rate | 50 Hz | 25 Hz | |
| Pixel Interval | 12 μm | ||
| Response Waveband | 8 μm to 14 μm | ||
| NETD | Less than 15 mK (@25°C, F# = 1.0) | Less than 18 mK (@25°C, F# = 1.0) | |
| Lens (Focal Length) | 50 mm, F1.0 | 60 mm, F1.0 | |
| Focus Mode | Focus Ring | ||
| Detection Range | 2600 m | 3100 m | |
| Min. Focusing Distance | 5 m | 6 m | |
| Magnification | 6.0x - 24.0x Support 1x step value of continuous zooming |
3.6x - 26.6x Support 1x step value of continuous zooming |
2.5x-28.5x Support 1x step value of continuous zooming |
| Field of View(HxV), Degrees / m @100 m | 5.3° x 4.0°/9.3m x 7.0m | 8.8° x 7.0°/15.4m x 12.3m | 14.6° x 11.7°/25.6 m x 20.5 m |
| Image Display | |||
| Display | 2560 x 2560, 1.03-inch OLED | ||
| Palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome | ||
| FFC (Flat Field Correction) Mode | N/A | Auto, Manual, External Correction | |
| Exit Pupil | 6 mm | ||
| Eye Relief | 45 mm | ||
| Diopter (Range) | -5D to 3D | ||
| Brightness Adjustment | Yes | ||
| Tone Adjustment | Cold, Warm | ||
| Contrast Adjustment | Yes | ||
| Zoom Pro | Yes | No | |
| Image Pro 2.0 | Yes | ||
| HSIS (HIKMICRO Shutterless Image System) | Yes | No | |
| System | |||
| Record Video | On-board Video Recording | ||
| Capture Snapshot | Yes | ||
| Audio Recording | Yes | ||
| Recoil-activation Recording | Yes | ||
| Standby Mode | Yes | ||
| Storage | Built-in EMMC (64 GB) | ||
| PIP | Yes | ||
| Hotspot | Yes | ||
| Hot Track | Yes | ||
| Distance Measurement | Yes | ||
| Zeroing Profiles | 5 | ||
| Max. Recoil | 1000 g/0.4 ms | ||
| Freeze Zeroing | Yes | ||
| Local Album | Yes | ||
| Power Supply | |||
| Battery Type | Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external) | ||
| Battery Operating Time | 9 hours continuous running (@-20°C, Zoom Pro, LRF on) | 10 hours continuous running (@-20°C, LRF on) | |
| Type-C Power Supply | 5 V DC/2 A, USB Type-C interface Supports QC3.0 | ||
| General | |||
| Mounting | Standard 30 mm | ||
| Protection Level | IP67 | ||
| Dimension | 418.5 mm x 84 mm x 92.4 mm | 422.5 mm x 88.4 mm x 74.5 mm | 452.6 mm x 94.3 mm x 78.9 mm |
| Weight | 880 g without an external battery | 860 g without an external battery | 1000 g without an external battery |
| Working Temperature | -30°C to 55°C (-22°F to 131°F) | ||
| Center Height | 34 mm | 36 mm | 41 mm |
| Laser Rangefinder | |||
| LRF Module in Lens | No | Yes | |
| Safety Class for Laser | Class 1 | ||
| Wavelength | 905 nm | ||
| Max. Measuring Range | 1000 m | ||
| Measurement Accuracy | ±1 m | ||
| Min. Measuring Range | 10 m | ||
