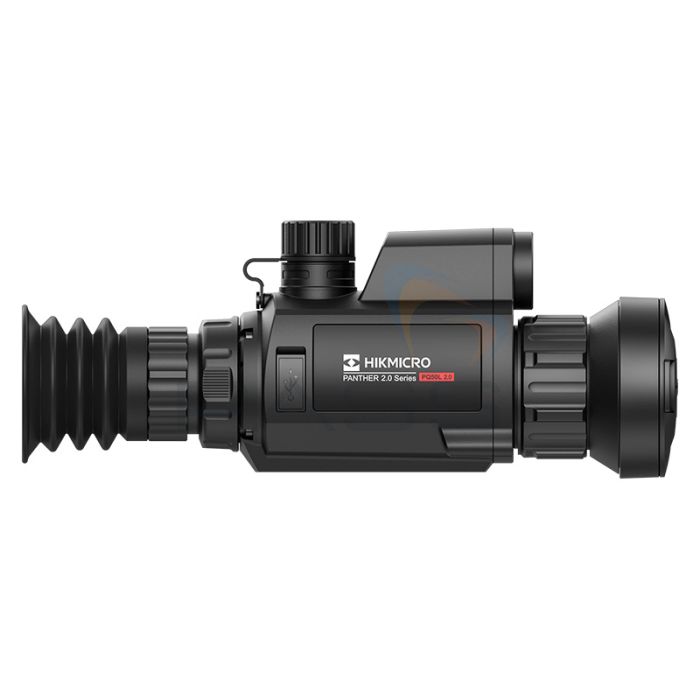

Hikmicro Panther 2.0 LRF Thermal Riflescope (384 x 288 or 640 x 512)
- Wide FoV
- 384 x 288 or 640 x 512 resolution
- Simple UI
SKU
HM-PANTH-2.0
These Hikmicro Panther 2.0 LRF Thermal Riflescopes deliver vivid and layered images and have less than 20 mK NETD to help identify small details of objects from the background. They also take advantage of a ballistic calculation algorithm. It calculates the suggested aiming point based on the exact distance measured by the built-in laser ranging finder to ensure precise long-range shooting.
The PQ50L2.0 has a FOV of 15m at 100 meters, it provides great performance wherever in the forest or field. The PH50L 2.0 magnifies @4.3x to help find the great details even in the open field area.
The scopes operate well in temperatures from -30 °C to +55 °C. They also have a detection range of up to 2600, an IP67 waterproof rating, a 50 mm lens, a shock resistance of up to 1000g/0.4ms, and a built-in LRF (Laser Rangefinder) with a 600m range.
Key Features
- Ultra clear image, impressive detail recognition
- High thermal sensitivity, perfect detail recognition
- Vivid, informative, and layered images
- Built-in laser range finder provides an accurate game
- Internal ballistic calculation for long-range shooting
- Compact Size and Rugged Design for High Reliability
- Integrated design provides a hassle-free experience
- Rugged and reliable for the toughest condition
- High shock resistance up to 1000 g/0.4 ms
- Replaceable and rechargeable battery
- Up to 2600m detection range
- Wide FoV
- Recoil-activation and audio recording
- Simple UI
- High sensitivity thermal module NETO < 20 mK [25°C, F# = 1.0]
- Laser rangefinder detection range of up to 600m
- 50 mm lens
- 1024 x 768 resolution 0.39-inch OLED display
- 384 x 288 thermal resolution with 12 µm detector (PH50L 2.0)
- Up to 6 hours of continuous operation (PH50L 2.0)
- 640 x 512 thermal resolution with 12 µm detector (PQ50L 2.0)
- Up to 5 hours of continuous operation (PQ50L 2.0)
What's Included?
- Hikmicro Panther 2.0 LRF Thermal Riflescope
- Quick Start Guide
- Battery
- Type C Cable
- Dust-Free Cloth
- Bag
- Battery Charger
Product Range
- Hikmicro PH50L 2.0 Panther 2.0 LRF Thermal Riflescope, 384 x 288
- Hikmicro PQ50L 2.0 Panther 2.0 LRF Thermal Riflescope, 640 x 512
Introduction
Technical Information
Specification
| PH50L 2.0 | PQ50L 2.0 | |
|---|---|---|
| Thermal Module | ||
| Image Sensor | Uncooled Focal Plane Arrays | Uncooled Focal Plane Arrays |
| Max. Resolution | 384 x 288 | 640 x 512 |
| Frame Rate | 50Hz | 50Hz |
| Pixel Interval | 12μm | 12μm |
| NETD | Less than 20mK (25 °C, F#=1.0) | Less than 20mK (25 °C, F#=1.0) |
| Lens (Focal Length) | 50mm | 50mm |
| Detection Range | 2600m | 2600m |
| Field of View(H x V), Degrees / m @100m | 5.3° x 4.0°/9.3m x 7.0m | 8.8° x 7.0°/15.4m x 12.2m |
| Min. Focusing Distance | 5m | 5m |
| Aperture | F1.0 | F1.0 |
| Magnification | 4.3x - 34.4x (8x) | 2.6 x - 20.8 x (8x) |
| Image Display | ||
| Display | 1024x768, 0.39 inch, OLED | 1024x768, 0.39 inch, OLED |
| Brightness Adjustment | Yes | Yes |
| Palettes | Black Hot, White Hot, Red Hot, Fusion | Black Hot, White Hot, Red Hot, Fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction | Auto, Manual, External Correction |
| Exit Pupil | 6mm | 6mm |
| Eye Relief | 45mm | 45mm |
| Diopter (Range) | -5D to 3D | -5D to 3D |
| Tone Adjustment | Cold, Warm | Cold, Warm |
| General | ||
| Protection Level | IP67 | IP67 |
| Weight | 585g without battery | 585g without battery |
| Dimension | 226.8 mm x 73.3 mm x 87.1 mm | 226.8 mm x 73.3 mm x 87.1 mm |
| Working Temperature | -30 °C to +55 °C (-22 °F to 131°F) | -30 °C to +55 °C (-22 °F to 131°F) |
| System | ||
| Record Video | On-board Video Recording | On-board Video Recording |
| Capture Snapshot | Yes | Yes |
| Hotspot | Yes | Yes |
| Standby Mode | Yes | Yes |
| Storage | Built-in EMMC (16 GB) | Built-in EMMC (16 GB) |
| PIP | Yes | Yes |
| Hot Track | Yes | Yes |
| Distance Measurement | Yes | Yes |
| Audio Recording | Yes | Yes |
| Recoil-activation Recording | Yes | Yes |
| Max. Recoil | 1000g/0.4ms | 1000g/0.4ms |
| Zeroing Profiles | 5 | 5 |
| Ballistic Calculation | Yes | Yes |
| Power Supply | ||
| Battery Type | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery |
| Battery Operating Time | ≥6h (25 °C, with hotspot off) | ≥5h (25 °C, with hotspot off) |
| Type-C Power Supply | 5V DC, 2 A Supports External Power Supply | 5V DC, 2 A Supports External Power Supply |
| Laser Rangefinder | ||
| Safety Class for Laser | Class 1 | Class 1 |
| Wavelength | 905nm | 905nm |
| Max. Measuring Range | 600m | 600m |
| Measurement Accuracy | ±1m | ±1m |
| Min. Measuring Range | 10m | 10m |
Document Downloads
Hikmicro Panther PH50L2 2.0 Thermal Riflescope Datasheet
Hikmicro Panther PQ50L2 2.0 Thermal Riflescope Datasheet
Hikmicro Panther 2.0 Thermal Riflescope Quick Start Guide
Hikmicro Panther Zoom 2.0 Thermal Riflescope User Manual
