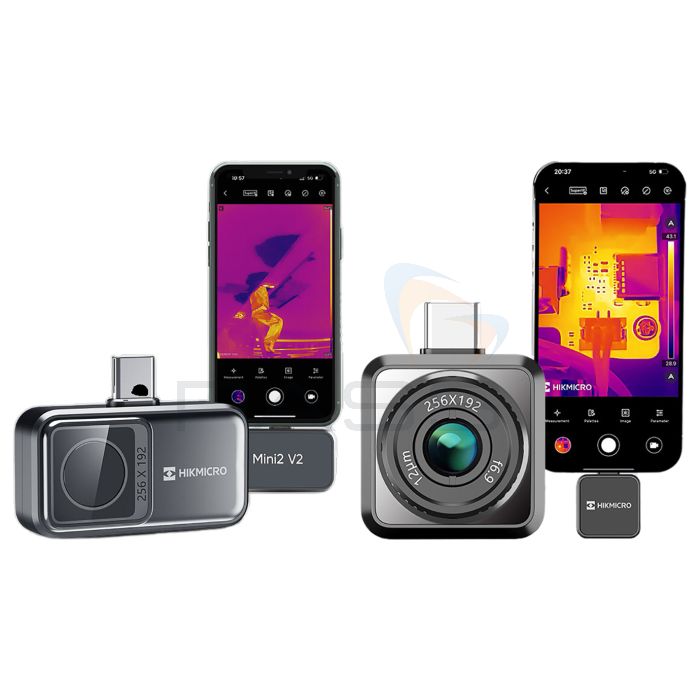

Hikmicro Mini2/Mini2Plus V2 Thermal Imaging Camera for Smartphones
The Mini2 V2 and Mini2Plus V2 are compatible with iOS and Android devices, including the latest iPhone 15 series. Your device powers the module, and you don't need batteries. The Mini2 V2 has a wide 50° field of view and focus-free mode, while the Mini2Plus V2 includes manual focus settings.
Both models incorporate a highly sensitive (NETD < 40 mK) VOx detector with a 256 x 192-pixel resolution and have IP40-rated aluminium alloy cases. These devices are built to withstand drops up to one metre and include features like PIP mode, 15 customizable palettes, video and image capture, and real-time data sharing via HIKMICRO apps.
| Mini2 V2 | Mini2Plus V2 | |
|---|---|---|
| Dimensions | 42 X 22.5 X 11.2 mm | 26.6 X 26.6 X 25 mm |
| Field of View | 50° X 37.2° | 25° X 18.8° |
| Focus | Focus Free | Manual Focus |
| Image |  |
 |
Key Features
- Thermal resolution: 256 x 192 (49,152 pixels)
- SuperIR image enhancement technology on live view and captured images
- 3-in-1: USB-C (iOS & Android), Lightning (Includes a Lightning to USB-C adapter)
- NETD: <40 mK (@ 25 °C, F#=1.0)
- Accuracy: ±2 ℃ (-20 °C to 100 °C); ±2% (100 °C to 400 °C)
- Weight: 20 g or 24 g
- Compatible with the latest iPhone15 series and Android devices
- Manual focus or focus-free depending on the model
- 50° wide-angle field of view (Mini2 V2)
- Manual focus for close-up inspections and small objects (Mini2Plus V2)
- Temperature range: -20°C to 400°C (-4°F to 752°F)
- PIP mode, custom palettes, and 15 preset colour palettes
- Battery-free design powered directly by your smartphone
- Durable IP40-rated aluminium alloy housing
- Lightweight and compact design for portability
- Real-time data sharing and reporting via the HIKMICRO Viewer and Analyzer apps
- Drop-tested for durability up to 1 meter (3.3 ft)
- Ideal for applications like HVAC, electrical inspections, and building diagnostics
What's Included?
-
Mini2 V2 or Mini2Plus V2 Module
- Carry case
- Extension cord
- Extra long lightning adaptor
- Extra long Type-C adaptor
Product Range
- HikMicro Mini2 v2 Smartphone Module for IOS and Android (25Hz), 50° X 37.2°
- HikMicro Mini2Plus v2 Smartphone Module for IOS and Android (25Hz), 25° X 18.8°
Videos
Mini2 V2 Introduction
📢 New Product Launch: HIKMICRO Mini2 V2 Thermal Camera!
Mini2Plus V2 Introduction
📢 New Product Launch: HIKMICRO Mini2Plus V2 Thermal Camera!
| Mini2 V2 | Mini2Plus V2 | |
|---|---|---|
| IR Resolution | 256 x 192 (49,152 pixels) | |
| NETD | < 40 mK (@ 25 °C, F#=1.0) | |
| Image Frequency | 25 Hz | |
| Detector Pitch | 12 μm | |
| Spectral Range | 7.5 to 14 μm | |
| Focal Length | 3.5 mm | 6.9 mm |
| F-number | F1.0 | |
| Field of View (FOV) | 50° X 37.2° | 25° X 18.8° |
| Focus Mode | Focus Free | Manual Focus |
| SuperIR | Yes, on captured images and live view | |
| Min. Focus Distance | 0.2 m (0.66 ft) | 0.1 m (0.33 ft) |
| Image Display | Thermal, PIP | Thermal, Visual (with the phone camera) |
| Image Modes | White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined | |
| Object Temperature Range | -20°C to 400°C (-4°F to 752°F) | |
| Accuracy | Max (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) | |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: 3 spots, 3 rectangles and 1 line |
|
| Level and Span Mode | Auto/Manual | |
| Power Consumption | 360 mW | |
| Protection Level | IP40 | |
| Drop Test Height | 1 m (3.28 ft) | |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) | |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) | |
| Weight | Approx. 20 g (0.044 lb) | Approx. 24 g (0.053 lb) |
| Dimension | 42 X 22.5 X 11.2 mm (1.65 X 0.89 X 0.44 in) | 26.6 X 26.6 X 25 mm (1.05 X 1.05 X 0.98 in) |
| Interface | USB-C Android, USB-C iOS, Lightning iOS (Includes a Lightning to USB-C adapter) | |
| Device Compatibility | iOS (version 14 and later), Android (version 7 and later) smartphones and tablets, or Windows devices | |
| Software Compatibility | HIKMICRO Viewer app for iOS and Android, HIKMICRO Analyzer software for Windows | |
Hikmicro Mini2 Plus V2 Thermal Imaging Camera Datasheet
Hikmicro Mini2 V2 Thermal Imaging Camera Datasheet
Hikmicro Mini2 V2 & Plus V2 Thermal Imaging Camera Smartphone Compatibility
Hikmicro Mini2 V2 & Plus V2 Thermal Imaging Camera User Manual
Hikmicro Mini2 V2 & Plus V2 Thermal Imaging Camera Quick Start Guide
Hikmicro Mini2 V2 & Plus V2 Thermal Imaging Camera Brochure
Reviews
Additional Information
| SKU | Mini2-Series-V2 |
|---|
