Hikmicro Lynx Pro LE10 Thermal Imaging Monocular

SKU
HM-LE10
Rating:
0%
(0)
Reward Points
:
457
£549.00 £457.50
2 in Stock
Free UK Delivery*
Advice & Support Call 01642 931329 or contact us
Price Match We won't be beaten, let us know

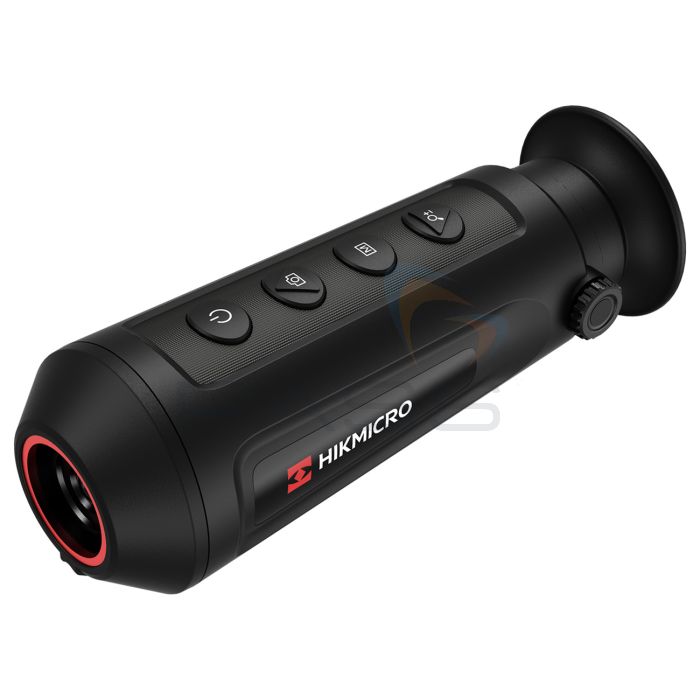

Hikmicro Lynx Pro LE10 Thermal Imaging Monocular
Description

Suitable for hunting, hiking, patrolling, and search and rescue applications, the Hikmicro Lynx Pro LE10 Thermal Imaging Monocular is a lightweight, compact infrared imager with a VOx 256 x 192px 12µm sensor, a thermal sensitivity of less than 35mK, and a large aperture lens. It has a detection range of 485m and imaging functions such as an 8x digital zoom, and four selectable colour palettes. Images and videos can be saved to the Hikmicro Lynx Pro LE10 Thermal Imaging Monocular’s 8GB memory and may be downloaded to a PC via a USB connection. An integrated Wi-Fi hotspot module facilitates communication with the Hikmicro Sight App, allowing you to use your smartphone/tablet as a second display and remote control. Finally, the Hikmicro Lynx Pro LE10 Thermal Imaging Monocular includes useful functions such as Standby mode, which conserves battery power, and Smart Range Measurement, which calculates the distance to the target.

Hikmicro Lynx Pro LE10 Thermal Imaging Monocular Key Features

  • Lightweight, compact infrared imager
  • Suitable for hunting, hiking, patrolling, and search and rescue
  • VOx 256 x 192 12µm sensor
  • Thermal sensitivity: less than 35mK
  • Large aperture lens
  • Delivers a clear picture of the target even in complete darkness
  • 8x digital zoom
  • Four colour palettes: Black Hot, White Hot, Red Hot, and Fusion
  • Video and image recording
  • 8GB memory
  • Transfer files to a PC via a USB connection
  • Long detection range: 458m
  • Smart Range Measurement
  • Standby mode
  • Small, simple-to-use, and sensitive thermal imager

What’s Included?

  • Hikmicro Lynx Pro LE10 Thermal Imaging Monocular
  • Wrist Strap
  • USB Cable
  • Non-dust Cloth
  • Protective Bag
  • Quick Start Guide
Downloads

Datasheets

Hikmicro Lynx Pro LE10 Thermal Imaging Monocular Datasheet Datasheets

Manuals & Guides

Hikmicro Lynx Pro Series User Manual Manuals & Guides
Tech Specs

Hikmicro Lynx Pro LE10 Thermal Imaging Monocular Technical Specifications

Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 256 × 192
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 35 mK (@ 25 °C),F# = 1.0
Lens (Focal Length) 9.7 mm
Field of View 18.00° × 13.55° (H × V)°
Digital Zoom 1 ×, 2 ×, 4 ×, 8 ×
Aperture F1.0
Magnification 1 to 8
Image Display
Display 0.2 inch, LCOS, 720× 540
FFC (Flat Field Correction) Mode Auto, Manual, External Correction
Palettes Black Hot, White Hot, Red Hot, Fusion
Frame Frequency 25 Hz
Smart Function
Hot Spot Yes
Standby Mode Yes
Detection Range 458 m
System
Built-in Memory 8 GB
Built-in Memory Capacity 220,000 pictures
Record Video Yes
Capture Snapshot Yes
Power Supply
Battery Type Lithium battery
Battery Operating Time 8 hours of continuous running with Wi-Fi hot spot function off (@ 25 °C)
6 hours continuous running with Wi-Fi hot spot function on (@ 25 °C)
Battery Capacity Display Yes
General
Power 5 VDC/2 A, 1.5 W, Type-C Interface
Work Temperature - 20 °C to 55 °C (- 4 °F to 131 °F)
Protection Level IP67
Dimension 158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24")
Weight 260 g (0.57 lb)

Reviews

Additional Information
SKU HM-LE10
Manufacturer Part Code HM-LE10S
