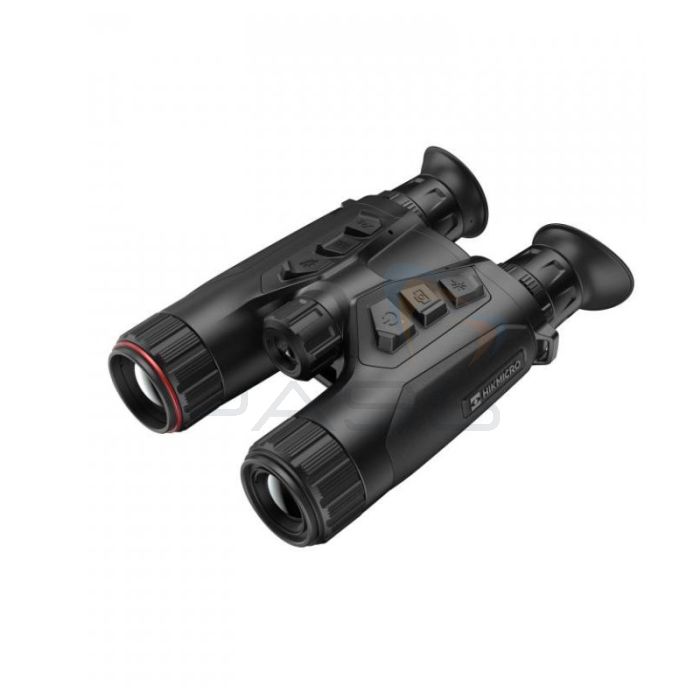

A perfect all-in-one solution for outdoor applications, the Hikmicro HH35L Habrok Multi-Spectrum Binoculars combine thermal and digital imaging to deliver sharp, detailed, precise footage. Capable of clearly identifying objects, details, and backgrounds in various weather and lighting conditions, the Hikmicro HH35L Habrok Multi-Spectrum Binoculars have a high-sensitivity (20mk) thermal detector; 384 x 288px infrared resolution; and a 0.001 Lux Starlight Camera with a 2560 x 1440px resolution. An IR emitter ensures the Hikmicro HH35L Habrok Multi-Spectrum Binoculars can be used in total darkness, while a Zoom Pro image algorithm reduces pixelation, and a Laser Rangefinder allows you to determine the distance to targets. Imaging is visible on the 0.49-inch OLED display with a 1920 x 1080px resolution. Media can be saved to the internal memory or streamed, via Wi-Fi to a smartphone or tablet with the Sight App installed. Sporting a lightweight, compact, ergonomic design with intuitively placed buttons, the Hikmicro HH35L Habrok Multi-Spectrum Binoculars are easy to use. Focus rings on each lens guarantee sharp imaging, while an adjustable interpupillary distance provides maximum comfort. A waterproof (IP67), robust magnesium alloy housing ensures suitability for harsh, outdoor environments. Finally, four batteries and a Smart Auto Screen Off function deliver up to six hours of continuous operation. Powerful, precise combined thermal- and digital-imager, the Hikmicro HH35L Habrok Multi-Spectrum Binoculars are ideal for use in fields and forests.
Thermal Module | |
Image Sensor | VOx Uncooled Focal Plane Arrays |
Max. Resolution | 384 × 288 |
Frame Rate | 50 Hz |
Pixel Interval | 12 μm |
Response Waveband | 8 μm to 14 μm |
NETD | Less than 20 mK (@25°C), F# = 1.0 |
Lens (Focal Length) | 35 mm, F1.0 |
Focus Mode | Focus Ring |
Detection Range | 1800 m |
Min. Focusing Distance | 3.5 m |
Magnification | 4.0x to 32x (8x) |
Field of View(H × V), Degrees/m @100 m | 7.5° × 5.7°/13.2 m × 9.9 m |
Optical Module | |
Image Sensor | 1.88'' Progressive Scan CMOS |
Max. Resolution | 2560 × 1440 |
Focal Length | 31 mm, F1.2 |
Min. Working Distance | 3 m |
Min. Illumination | 0.001 lux @ (F1.0 , AGC On) |
Focus Mode | Focus Ring |
Magnification | 2.9x to 23.2x(8x) |
Field of View (H × V), Degrees/m @100 m | 13.9° × 7.8°/24.4 m × 13.6 m |
Smart IR | Yes |
Viewing Range at Night | 400 m |
Image Display | |
Display | 0.49 inch, OLED, 1920 ×1080 |
Palettes | Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto |
FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
Exit Pupil | 8 mm |
Eye Relief | 15 mm |
Diopter (Range) | -5 D to +3 D |
Brightness Adjustment | Yes |
Tone Adjustment | Cold, warm |
Contrast Adjustment | Yes |
Zoom Pro | Yes |
System | |
Record Video | Yes |
Capture Snapshot | Yes |
Audio Recording | Yes |
Standby Mode | Yes |
Storage | Built-in EMMC (64 GB) |
PIP | Yes |
Hotspot | Yes |
Hot Track | Yes |
Digital Magnetic Compass | Yes |
GPS | Yes |
Local Album | Yes |
Power Supply | |
Battery Type | Replaceable and Rechargeable Li-ion Battery |
Battery Operating Time | ≥6 h (25°C, with hotspot off) |
Type-C Power Supply | 5 V DC, 2 A Supports External Power Supply |
General | |
Protection Level | IP67 |
Dimension | 138.2 mm × 68.4 mm × 212.4 mm (5.4" × 2.7" × 8.4") |
Weight | 780 g without batteries |
Working Temperature | -30℃ to +55℃ |
Interpupillary Adjustment Range |
60 mm to 70 mm |
Mounting Adapter | 1/4“-20-UNC |
Laser Rangefinder | |
Safety Class for Laser | Class 1 |
Wavelength | 905 nm |
Max. Measuring Range | 1000 m |
Measurement Accuracy | ±1 m |
Min. Measuring Range | 10 m |
Infrared Illuminator | |
Emitter | LED |
IR Wavelength | 850 nm |
Beam Angle | Adjustable 7.6 to 11.5° |
