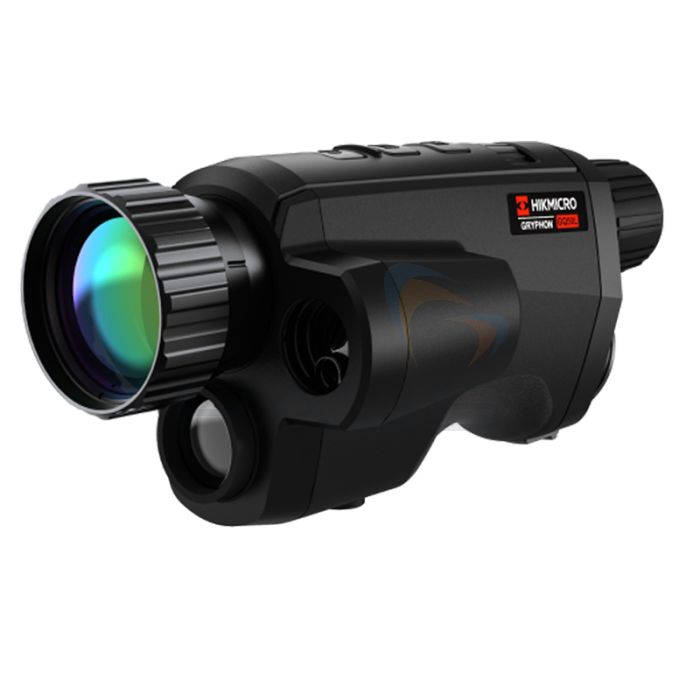

Hikmicro Gryphon Pro LRF GQ50L Thermal & Optical Monocular

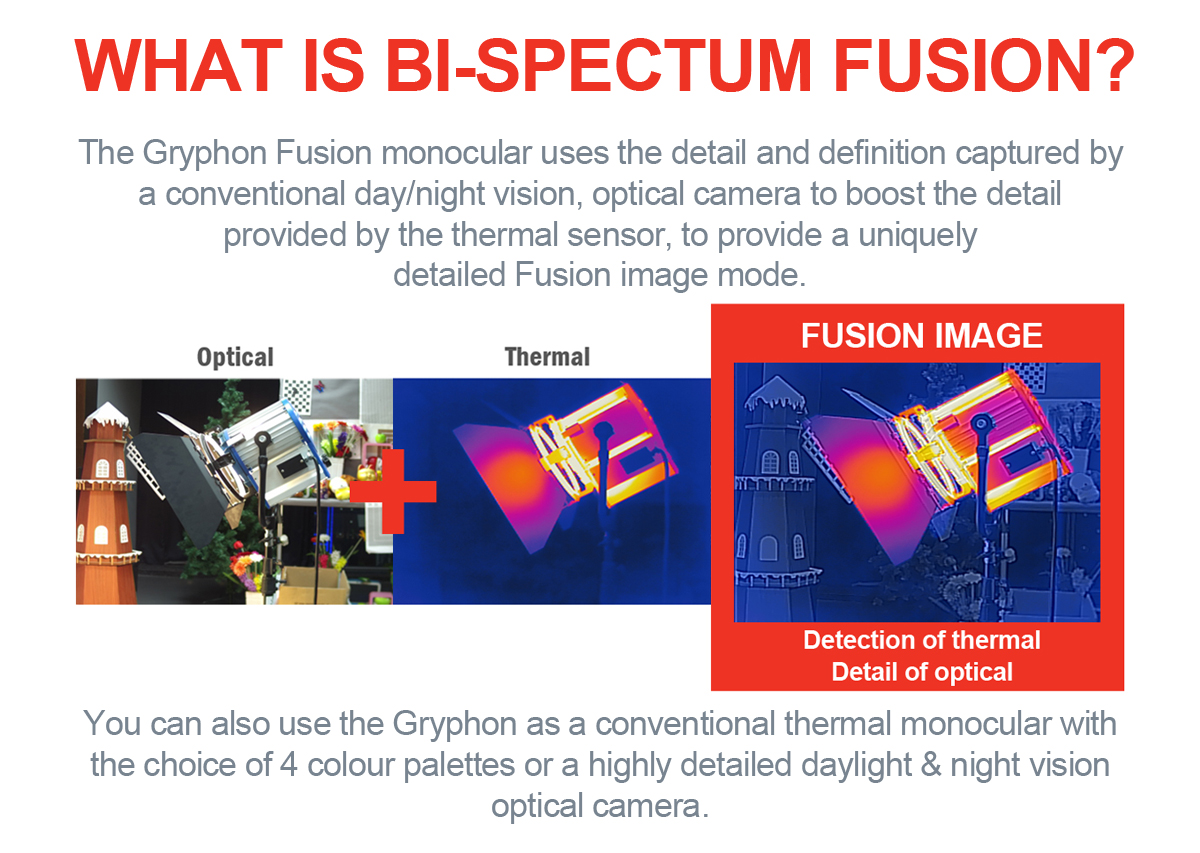

Ideal for patrolling, law enforcement, search and rescue, and hiking applications, the Hikmicro Gryphon Pro LRF GQ50L Thermal & Optical Monocular is a handheld thermal imager with a 640 x 512px infrared detector, VOx 12µm imaging sensor, and 35mK thermal sensitivity. In addition, it includes a low-light-level optical detector with a 1920 x 1080px resolution and useful imaging functions such as Bi-spectrum Fusion mode and an image optimising algorithm.
This ergonomically designed imager with a jog wheel is powered by two replaceable, rechargeable batteries and includes a built-in laser rangefinder with a maximum range of 600m and an accuracy of ±1m. The Hikmicro Gryphon Pro LRF GQ50L Thermal & Optical Monocular is an ergonomic, easy-to-use thermal- and visible-light-imaging scope.
Hikmicro Gryphon Pro LRF GQ50L Thermal & Optical Monocular Key Features
- A handheld thermal imager ideal for patrolling, law enforcement, search and rescue, and hiking applications
- 640 x 512px infrared detector
- VOx 12µm imaging sensor
- 35mK thermal sensitivity
- Image optimising algorithm
- Low-light optical detector with a 1920 x 1080px resolution
- Bi-spectrum Fusion mode
- Built-in Laser Rangefinder: 600m max range, ±1m accuracy
- Jog wheel for quick and easy menu selection and zooming
- Supplied with two replaceable, rechargeable batteries and a battery charger
- An ergonomic, easy-to-use thermal- and visible-light imaging scope
What’s Included?
- Hikmicro Gryphon Pro LRF GQ50L Thermal & Optical Monocular
- 2x Rechargeable Batteries
- Battery Charger
Hikmicro Gryphon Pro LRF GQ50L Thermal & Optical Monocular Technical Specifications
| Thermal Module | |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 640 × 512 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | <35 mK (@25 °C, F# = 1.2) |
| Lens (Focal Length) | 50 mm |
| Detection Range | 2600 m |
| Focus Mode | Manual |
| Field of View | 8.78° × 7.03° (H × V) |
| Min. Focusing Distance | 5 m |
| Aperture | F1.2 |
| Magnification | 2.9 |
| Digital Zoom | 1 ×, 2 ×, 4 ×, 8 × |
| Optical Module | |
| Image Sensor | 1/2” Progressive Scan CMOS |
| Focal Length | 22 mm |
| Wavelength | 400 nm to 1000 nm |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | 0.001 Lux@F1.0 |
| Image Display | |
| Frame Frequency | 50 Hz |
| Display | 0.39 inch, OLED, 1024 × 768 |
| Image Mode | White Hot, Black Hot, Red Hot, Fusion, Visible, Image Fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Smart Function | |
| Hot Spot | Yes |
| Hot Track | Yes |
| Distance Measurement | Yes |
| Standby Mode | Yes |
| System | |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Built-in Memory | 16 GB |
| Power Supply | |
| Battery Type | One 18650 battery |
| Battery Operating Time | 4.5 hours |
| Power | Removable Battery |
| General | |
| Protection Level | IP67 |
| Dimension | 87.2 mm × 73.3 mm × 183.6 mm |
| Weight | 548 g |
| Working Temperature | -30 to 55 °C |
| Eye-Relief | 19.5mm |
| Laser Rangefinder | |
| Safety Class for Laser | Class 1 |
| Wavelength | 905 nm |
| Max. Measuring Range | 600 m |
| Measurement Accuracy | ±1 m |
Reviews
Additional Information
| SKU | HM-GQ50L |
|---|---|
| Manufacturer Part Code | HM-GQ50L |
