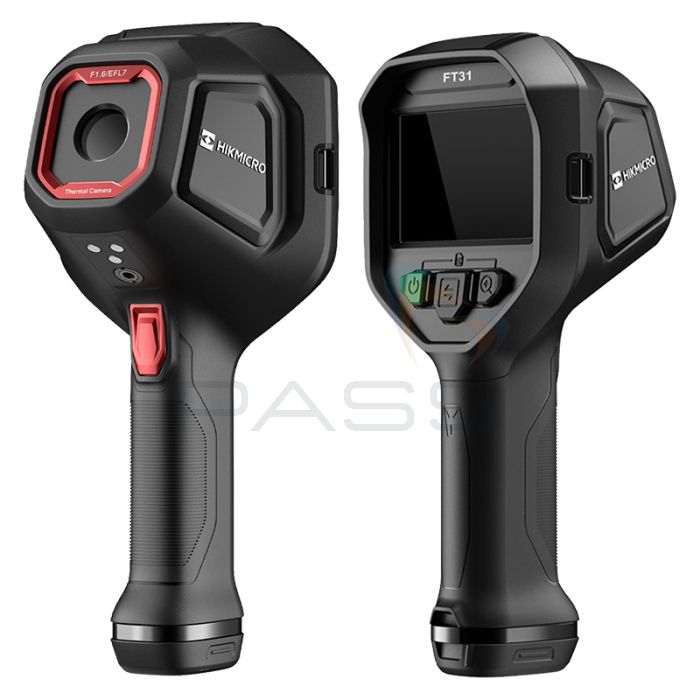

Hikmicro FT31 Firefighting Thermal Camera (60Hz)
The Hikmicro FT31 is a chief firefighting thermal imaging device. It helps to preserve life and property while ensuring firefighter safety, it enables firefighters to see clearly in conditions of complete darkness or heavy smoke.
The FT31 features a simplistic control method, a functional temperature range that extends to 260°C (500°F), eight colour palettes, and enhanced detail visibility.
Key Features
- Thermal resolution: 384 x 288 (110,592 pixels)
- NETD : < 30 mK (@ 25°C, F#=1.0)
- Start-up time: 5 seconds (with IR image), 10 seconds (with OSD)
- Support object details enhancement
- Temperature measurement range : -20°C to 1200°C (-4°F to 2192°F)
- Measurement presets: Center spot, Hot spot, Cold spot
- 60 Hz image frequency
- 4.3" LCD screen display
What's Included?
- Hikmicro FT31 Firefighting Thermal Camera (60Hz)
- 2-in-1 USB-C to USB-CA Cable
- Retractable Lanyard
- Neck Strap
- Lanyard
- Interchangeable Battery
- Charging Base with Adaptor and Plugs (UK/US/EU/AU)
- Hard Carrying Case
- Printed Quick Start Guide
- Calibration Certificate
| Infrared Image | |
|---|---|
| IR Resolution | 384 x 288 (110,592 pixels) |
| NETD | < 30 mK (@ 25°C, F#=1.0) |
| Image Frequency | 60 Hz |
| Detector Pitch | 17 µm |
| Spectral Range | 7.5 to 14 µm |
| Focal Length | 7 mm |
| F-number | F1.6 |
| Field of View (FOV) | 54.1° x 40.2° |
| Spatial Resolution (IFOV) | 2.42 mrad |
| Min. Focus Distance | 1 m (3.28 ft) |
| Focus Mode | Focus Free |
| Image Display | |
| Display | 800 x 480 Resolution, 4.3" LCD Screen |
| Digital Zoom | 1x, 2x, 4x |
| Colour Palettes | Basic, Black Hot, White Hot, Fire Detection, Rescue, Hot Area, Cold Area, Building |
| Image Modes | Thermal |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 1200°C (-4°F to 2192°F) |
| Accuracy | Max. (± 2°C/3.6°F, ± 2%), for ambient temperature -20°C to 50°C (-4°F to 122°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot |
| Data Storage and Communication | |
| Storage Media | Built-in 32 GB flash memory |
| Image Storage Capacity | Approx. 100,000 Images |
| General | |
| USB Interface | USB Type-C |
| Battery Type | Interchangeable and rechargeable Li-ion battery |
| Battery Operating Time | Approx. 6 hours |
| Battery Charging Time | Approx. 3 hours fully charged |
| Protection Level | IP67, IEC 60529 |
| Drop Test Height | 2 m (6.56 ft), IEC 60068-2-31 |
| Safety | IEC 61010-1 |
| EMC | EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3 |
| Vibration | 2g IEC 60068-2-6 |
| Shock | 25 g, IEC 60068-2-27 |
| Working Temperature Range | -20°C to 85°C (-4°F to 185°F) 150°C(302°F), 15min 260°C(500°F), 5min |
| Relative Humidity | < 95% non-condensing |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Weight | Approx. 1022g (2.25 lb) |
| Dimension | 132.7 x 276.3 x 114.6 mm (5.2 x 10.9 x 4.5 in) |
| Tripod Mounting | UNC ¼”-20 |
