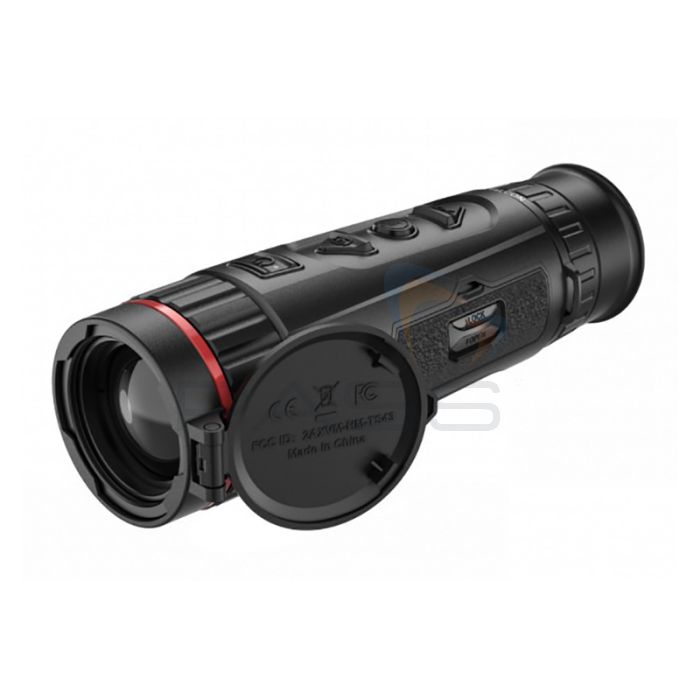

The Hikmicro Falcon FH25/FH35 Thermal Monocular is a highly sensitive, highly practical, and extremely simple-to-use handheld IR imager. It provides sharp, richly contrasted, precisely detailed thermal images and footage. As such it offers a <20mK thermal sensitivity and 1800m detection range and is equipped with a high-end 12µm 384 x 288px thermal sensor, f/1.0 aperture lens, and Image Pro image processing algorithm. In addition to this, it includes useful imaging functions such as an 8x digital zoom, four thermal colour palettes, and a Hot Tracking mode. Imaging can be viewed on the 1024 x 768px HD OLED display and may be saved as thermal videos and photos to the integrated 64GB memory. Media can be exported to the Hikmicro Sight App. To ensure simple, dependable, and constant operation, the Hikmicro Falcon FH25/FH35 Thermal Monocular features a cylindrical design with conveniently located different-shaped function buttons; a robust, IP67 waterproof-rated magnesium housing; and a replaceable, rechargeable battery. The Hikmicro Falcon FH25/FH35 Thermal Monocular is an ergonomic, easy-to-use handheld infrared imager designed to deliver detailed, ultra-clear thermal images and footage in all weather conditions.
FH25 | FH35 | |
---|---|---|
Thermal Module | ||
Image Sensor | VOx Uncooled Focal Plane Arrays | |
Frame Rate | 50Hz | |
Pixel Interval | 12µm | |
Response Waveband | 8µm to 14µm | |
NETD | Less than 20 mK (@25°C),F#=1.0 | |
Detection Range | 1200m | 1800m |
Field of View(H x V), Degrees / m @100m | 10.5°x7.9°/18.4mx13.8m | 7.53°x5.65°/13.2mx9.9m |
Min. Focusing Distance | 2.5m | 3.5m |
Aperture | F1.0 | |
Digital Zoom | 1x, 2x, 4x, 8x | |
Focal Length | 25mm | 35mm |
Resolution | 384 x 288 | |
Optical Magnification | 2.17 | 3.03 |
Image Display | ||
Palettes | Black hot, white hot, red hot, fusion | |
FFC (Flat Field Correction) Model | Auto, Manual, External Correction | |
Monitor | 0.39 inch, OLED, 1024 x 768 | |
General | ||
Protection Level | IP67 | |
Weight | 450g without battery | 455g without battery |
Dimension | 190.3 mm x 58.3mm x 65.2 mm (7.49″ x 2.29″ x 2.57″) | |
Work Temperature/Humidity | From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less | |
System | ||
Record Video | Yes | |
Capture Snapshot | Yes | |
Hotspot | Yes | |
Standby Mode | Yes | |
Storage | Built-in memory module (64 GB) | |
Hot Track | Yes | |
Power Supply | ||
Power | 5V, 1.5W | |
Battery Type | Replaceable and Rechargeable Li-ion Battery | |
Battery Operating Time | 7 hours of continuous running with CVBS and hotspot function off (@25°C) |
