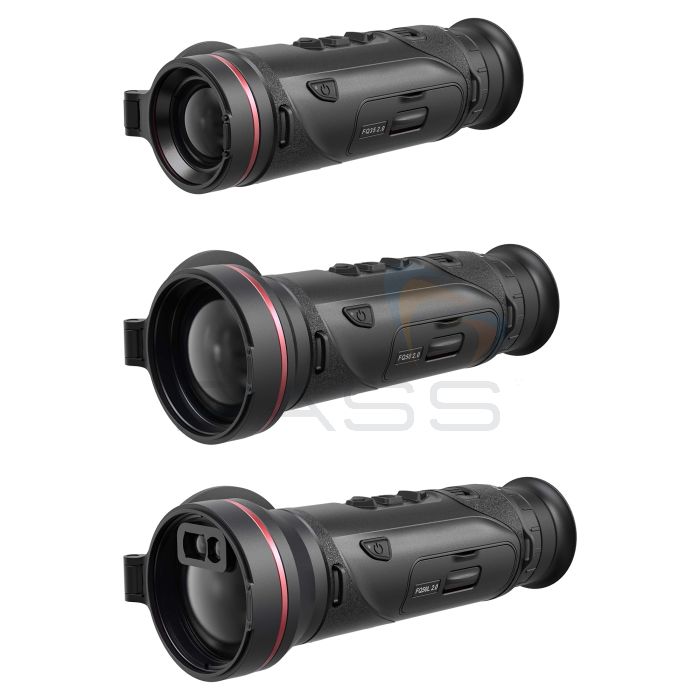

The HIKMICRO Falcon 2.0 series features a high-sensitivity 640 × 512 @12 μm thermal detector (NETD < 15 mK), a 0.49” 1920 × 1080 OLED display, and HIKMICROs Shutterless Image System (HSIS).
The FQ35 2.0 has a 35mm F1.0 lens, 1.9x magnification, and an 1800m detection range. The FQ50 2.0 has a 50mm F0.9 lens, 2.7x magnification, and a 2600m detection range. The FQ50L 2.0 includes a built-in LRF with a 1000m range and ±1m accuracy.
Image Pro 2.0 & Zoom Pro improve clarity and the HSIS provides fluid imaging. Quick adjustments can be made with the rear focus wheel and the button layout suits right- and left-handed users. The battery delivers 6 hours of operation, with auto screen-off to extend life. External power is also supported.
FQ35 2.0 | FQ50 2.0 | FQ50L 2.0 | |
---|---|---|---|
Thermal Module | |||
Image Sensor | VOx Uncooled Focal Plane Arrays | ||
Max. Resolution | 640x512 | ||
Frame Rate | 50Hz | ||
Pixel Interval | 12μm | ||
Response Waveband | 8μm to 14μm | ||
NETD | Less than 15 mK (@25°C),F#=1.0 | ||
Lens (Focal Length) | 35mm, F1.0 | 50mm, F0.9 | |
Focus Mode | Rear Focus Wheel | ||
Detection Range | 1800m | 2600m | |
Min. Focusing Distance | 3.5m | 5.0m | |
Magnification | 1.9x-15.2x (8x) | 2.7x-21.6x (8x) | |
Field of View (H X V), Degrees / m @100m | 12.5° X 10.0°/21.9m X 17.5m | 8.8° X 7.0°/15.4m X 12.2m | 8.8° X 7.0°/15.4m X 12.2m@100m |
Image Display | |||
Display | 1920x1080, 0.49 inch, OLED | ||
Palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome | ||
Exit Pupil | 8mm | ||
Eye Relief | 15mm | ||
Diopter (Range) | -5D to +3D | ||
Brightness Adjustment | Yes | ||
Tone Adjustment | Cold, Warm | ||
Contrast Adjustment | Yes | ||
Zoom Pro | Yes | ||
HSIS (HIKMICRO Shutterless Image System) | Yes | ||
System | |||
Record Video | Yes | ||
Capture Snapshot | Yes | ||
Audio Recording | Yes | ||
Standby Mode | Yes | ||
Storage | Built-in Memory Module (64 GB) | ||
PIP | Yes | ||
Hotspot | 2.4/5G WiFi Waveband | ||
Hot Track | Yes | ||
Distance Measurement | Yes | ||
Local Album | Yes | ||
Power Supply | |||
Battery Type | Replaceable and rechargeable 21700 battery | ||
Battery Operating Time | ≥6.5h (@25°C, WiFi, Zoom Pro on) | ≥6h (@25°C, WiFi, Zoom Pro, LRF on) | |
Type-C Power Supply | 5V DC, 2A Supports External Power Supply, Support Direct Charging | ||
General | |||
Protection Level | IP67 | ||
Dimension | 191.3mm X 70.4mm X 63.7mm | 205mm x 69.6mm x 82.9mm | 213.4mm x 69.6mm x 82.9mm |
Work Temperature/Humidity | From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less | ||
Weight | 485.5g with Battery | 569.5g with Battery | 583g with Battery |
Laser Rangefinder | |||
Safety Class for Laser | N.A. | Class 1 | |
Wavelength | N.A. | 905nm | |
Max. Measuring Range | N.A. | 1000m | |
Measurement Accuracy | N.A. | ±1m | |
Min. Measuring Range | N.A. | 10m |
