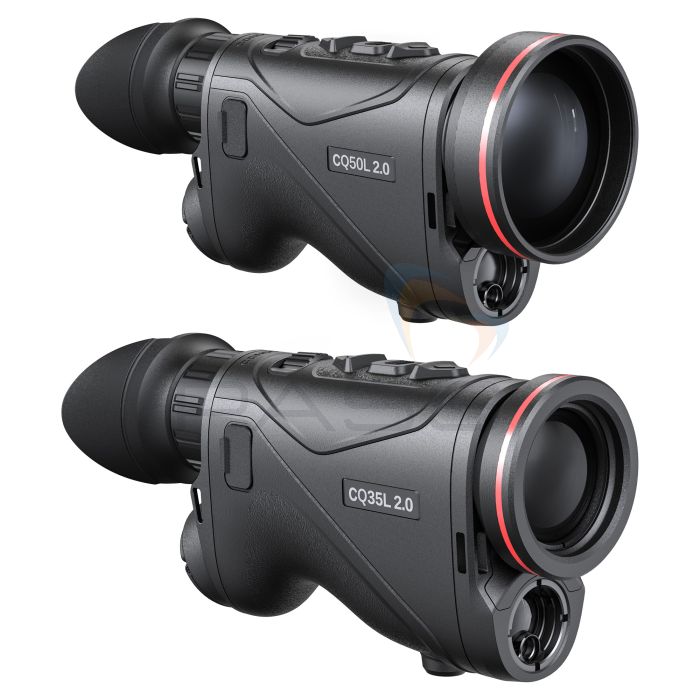

HIKMICRO Condor Pro LRF 2.0 Thermal Monocular (50Hz)
- 35mm, F1.0 or 50mm, F0.9 lens
- Detection ranges up to 1800m or 2600m
- HIKMICRO Shutterless Image System
SKU
CONDOR-2.0
The HIKMICRO Condor LRF 2.0 series features a 640 × 512 @12 μm thermal detector (NETD < 15 mK), a 0.49” 1920 × 1080 OLED display, and a shutterless imaging system (HSIS). Its laser rangefinder measures distances up to 1000m, while the rear focus wheel allows quick adjustments.
The CQ35L 2.0 has a 35mm F1.0 lens, 1.9x magnification, a 22m field of view at 100m, and an 1800m detection range. The CQ50L 2.0 features a 50mm F0.9 lens, 2.7x magnification, and a 2600m detection range.
HSIS eliminates imaging freezes and adapts to background changes. Image Pro 2.0 and Zoom Pro optimize sharpness and contrast, even when zoomed in.
The 21700 battery provides 6.5 hours of operation, with a Type-C power bank option for extended use. An auto screen-off function conserves power based on device position.
Key Features
- High sensitivity thermal module NETD < 15 mK (@25°C, F#=1.0)
- 640 X 512 resolution with 12 μm detector
- 1920 X 1080 resolution 0.49-inch OLED display
- 35mm, F1.0 or 50mm, F0.9 lens
- Detection ranges up to 1800m or 2600m
- HIKMICRO Shutterless Image System (HSIS)
- 6.5 hours continuous operation time
- Replaceable and rechargeable 21700 battery
- Lightweight, ergonomic compact shape
- Intergrated laser rangefinder up to 1000 m
- PRO image algorithm, PRO image details
- Fingertip rear focus wheel
- Multiple carrying ways
- Highlights captured in the local album and SIGHT APP
- Detection & observation mode
- Green and red monochrome palette
- IP67 protection rating
What's Included?
- Choice of Monocular
- Type-C Cable
- Batteries
- Neck Strap
- Hand Strap
- Battery Charger
- Lint-Free Cloth
- Carrying Bag
- Quick Start Guide
Product Range
- HIKMICRO CQ35L2.0 Condor Pro LRF 2.0 Thermal Monocular, 35mm, F1.0 Lens
- HIKMICRO CQ50L2.0 Condor Pro LRF 2.0 Thermal Monocular, 50mm, F0.9 Lens
Videos
HIKMICRO Condor LRF & Falcon 2.0 | Mastery Made Easy
HIKMICRO CONDOR LRF& FALCON 2.0| Mastery Made Easy
Technical Information
Specification
| CQ35L 2.0 | CQ50L 2.0 | |
|---|---|---|
| Thermal Module | ||
| Image Sensor | VOx Uncooled Focal Plane Arrays | |
| Max. Resolution | 640x512 | |
| Frame Rate | 50Hz | |
| Pixel Interval | 12μm | |
| Response Waveband | 8μm to 14μm | |
| NETD | Less than 15 mK (@25°C),F#=1.0 | |
| Lens (Focal Length) | 35mm, F1.0 | 50mm, F0.9 |
| Focus Mode | Rear Focus Wheel | |
| Detection Range | 1800m | 2600m |
| Min. Focusing Distance | 3.5m | 5.0m |
| Magnification | 1.9X-15.2x (8x) | 2.7X-21.6x (8x) |
| Field of View(H X V), Degrees / m @100m | 12.5° X 10.0°/21.9m X 17.5m | 8.7° x7.0°/15.2m x 12.2m@100m |
| Image Display | ||
| Display | 1920x1080, 0.49 inch, OLED | |
| Contrast Adjustment | Yes | |
| Palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome | |
| Brightness Adjustment | Yes | |
| Exit Pupil | 8mm | |
| Eye Relief | 15mm | |
| Diopter (Range) | -5D to +3D | |
| Tone Adjustment | Cold, Warm | |
| Image Pro 2.0 | Yes | |
| Zoom Pro | Yes | |
| HSIS (HIKMICRO Shutterless Image System) | Yes | |
| System | ||
| Record Video | Yes | |
| Capture Snapshot | Yes | |
| Audio Recording | Yes | |
| Standby Mode | Yes | |
| Storage | Built-in Memory Module (64 GB) | Built-in EMMC (64GB) |
| PIP | Yes | |
| Hotspot | 2.4/5G WiFi Waveband | |
| Hot Track | Yes | |
| Distance Measurement | Yes | |
| Local Album | Yes | |
| General | ||
| Protection Level | IP67 | |
| Dimension | 179.2 mm X 87.7 mm X 64.5 mm | 193 mm X 71.5 mm X 93.3mm |
| Work Temperature/Humidity | From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less | |
| Weight | 458 g with Battery | 537g with Battery |
| Power Supply | ||
| Battery Type | Replaceable and rechargeable 21700 battery | |
| Battery Operating Time | ≥6.5h (@25°C, WiFi, Zoom Pro, LRF on) | |
| Type-C Power Supply | 5V DC, 2A Supports External Power Supply, Support Direct Charging | |
| Laser Rangefinder | ||
| Safety Class for Laser | Class 1 | |
| Wavelength | 905nm | |
| Max. Measuring Range | 1000m | |
| Measurement Accuracy | ±1m | |
| Min. Measuring Range | 10m | |
Document Downloads
HIKMICRO CQ35L2.0 Condor Pro LRF 2.0 Thermal Monocular Datasheet
HIKMICRO CQ50L2.0 Condor Pro LRF 2.0 Thermal Monocular Datasheet
HIKMICRO Condor Pro LRF 2.0 Thermal Monocular Quick Start Guide
HIKMICRO Condor Pro LRF 2.0 Thermal Monocular User Manual
