Reward Points
:
1899
£1,899.00
£1,582.50

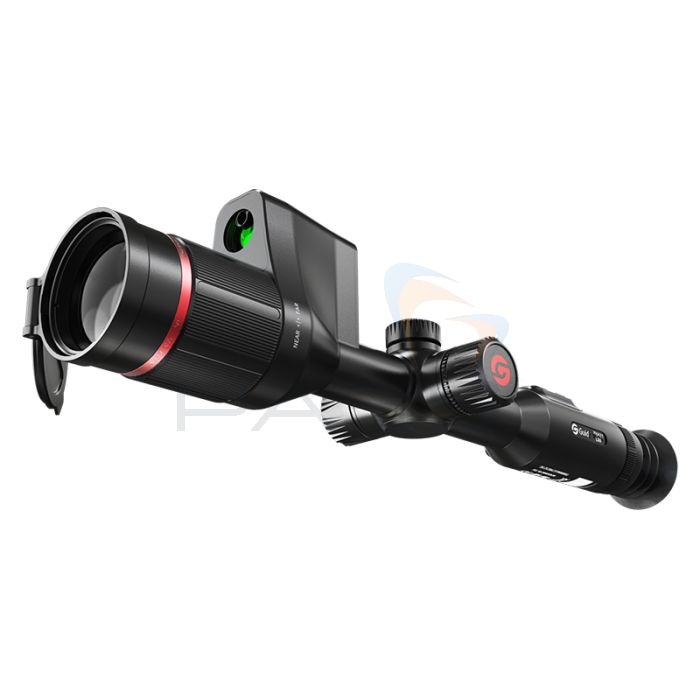

Guide TU LRF Series Thermal Imaging Scope with Laser Ranging, 400x300px - Choice of Model
Description
The Guide TU LRF Series scopes include a laser rangefinder, and the laser pointer can be configured to a red, yellow, or green colour. The LRF enhances your hunting efficiency by delivering accurate and rapid detection identifying targets up to 1000 metres away. The laser can also be calibrated using the menu knob.
Suitable for night hunting, law enforcement agencies, border control agencies, search and rescue operations, and outdoor activities.
Choose from 35mm or 50mm lenses with 12μm.
Key Features
- HD AMOLED display for higher image quality and reduced visual fatigue
- The PureIR algorithm for high-sensitivity thermal images
- Built-in laser rangefinder for 1000m accurate target detection
- Super long battery life of up to 12 hours
- OTA firmware upgrade by connecting to the APP
- Photo and video recording to keep the best moments
- IP67 encapsulation, resistant to 800G shock
- User-friendly improved left-hand operation experience and optimized opening direction of USB cover
What's Included?
- Thermal Imaging Scope
- Lens cap
- Eye mask
- 5V2A adapter (US, UK, AU, and EU)
- Desktop charger
- Customised battery x 2
- Extended clip x 2
- USB Type-C cable
- Micro HDMI cable
- Quick start guide
Product Range
- Guide TU431-LRF Thermal Scope with Laser Ranging - 400 x 300 px, 12μm, 35mm Lens (50Hz)
- Guide TU451-LRF Thermal Scope with Laser Ranging - 400 x 300 px, 12μm, 50mm Lens (50Hz)
Downloads
Brochures & Catalogues
Tech Specs
| TU431 LRF | TU451 LRF | |
|---|---|---|
| Sensor | ||
| Type | Uncooled VOx Infrared Detector, 8 to 14 μm | |
| Resolution | 400 x 300, 12 μm | |
| NETD | ≤30mk | |
| Frame Rate | 50Hz | |
| Lens | ||
| Focal Length | 35 mm; F1.0 | 50 mm, F1.0 |
| Field of View | 7.8° x 5.9° | 5.5° x 4.1° |
| Optical Zoom | 2.65x | 3.78x |
| Digital Zoom | 1x ~ 4x | |
| Focus | Manual | |
| Display | ||
| Display Type | 0.39' AMOLED | |
| Resolution | 1440 x 1080 | |
| Eyepiece | Exit pupil distance ≥ 48 mm; Diopter ± 4 | |
| Eyepiece Zoom | 14x | |
| Video Output | Digital video | |
| Hardware | ||
| Laser Rangefinder | Max. measuring range: 1000m | |
| Range Performance | ||
| Detection Range | 1000 m | 1400 m |
| Functions | ||
| Scene Modes | Enhanced, Highlight, and Natural | |
| Colour Palettes | White Hot, Black Hot, adjustable Red Hot, Green Hot, Iron Red, Blue Hot | |
| Recording Function | Photo/Video | |
| WiFi | 2.4G | |
| Supported Application | TargetIR | |
| Firmware OTA | Upgrade device firmware via app connection | |
| Others | PIP, Hot spot tracking | |
| Power | ||
| Battery Type | Single 18650 battery (built-in) and customised battery (external) | |
| Operating Time | ≥ 12 hours | |
| Environmental | ||
| Operating temperature | -30 °C to 50 °C | |
| Storage temperature | -40 °C to 70 °C | |
| Humidity | 10 % to 95 % non-condensing | |
| Shock | 800 G at 1 ms half-sine pulse (as per IEC60068-2-27) | |
| Encapsulation | IP67 | |
| Certification | FCC, CE, RoHS, EAC, un38.3 | |
| Interface | ||
| USB | USB Type-C | |
| Video Interface | Micro HDMI | |
| Mechanical Interface | Picatinny | |
| Tube Diameter | Standard 30 mm | |
| System | ||
| Language Settings | English / Russian / German / French / Italian / Spanish / Japanese / Korean / Polish | |
| Memory Capacity | 128GB | |
| Physical | ||
| Weight | ≤1250 g (without eye mask and battery) | |
| Size | ≤377 x 107 x 69 mm (without eye mask) | |
Reviews
Additional Information
| SKU | GU-TU-LRF |
|---|
