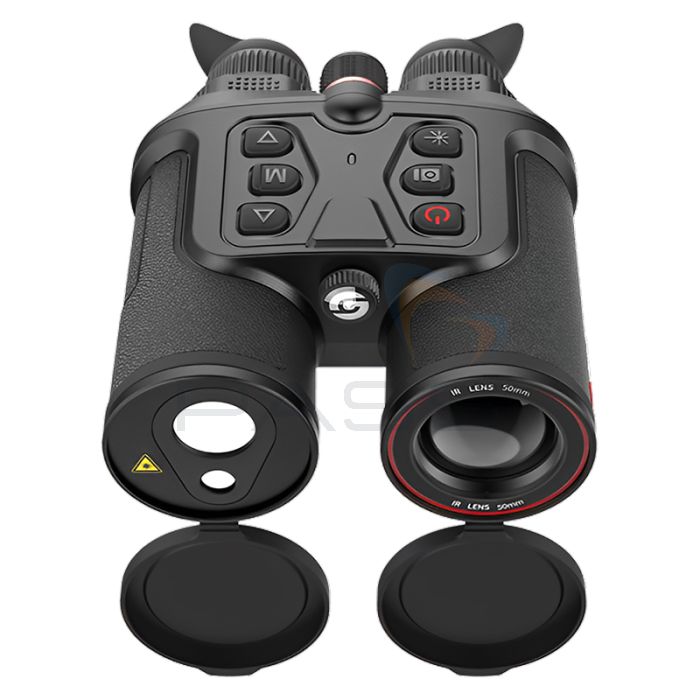

Guide TN Series Handheld Thermal Imaging Binoculars, 400x300px - Choice of Lens
- 17μm
- 35mm, or 50mm lenses
- Quick location, laser ranger finder
SKU
GU-TN-SERIES
The Guide TN Series Handheld Thermal Imaging Binoculars improve the users viewing comfort with their 1027 x 768 full-colour HD OLED display. The laser ranging feature ensures quick and accurate locations with distance information. The detection ranges for the instruments are 1000 & 1400 metres.
The adjustable interpupillary distance ranges between 60mm and 70mm allowing the binoculars to cater to larger groups. The Type-C cable & Micro HDMI interface makes for convenient data transmission. Suitable for law enforcement officers, security, search & rescue, and night hunting.
Choose from 35mm or 50mm lenses with 17μm.
Key Features
- IR resolution 400 x 300, Superior image quality
- Quick location, laser ranger finder with 1000m/1500m accuracy
- Full color AMOLED 1024 x 768 high-definition display, easy observation
- Adjustable interpupillary distance between 60mm~70mm
- Well-designed PIP mode, highlighting the target
- Realize live image and remote control via WIFI connection
What's Included?
- Thermal Imaging Binoculars
- Power adapter (in compliance with FCC, CE, EAC, and ROHS)
- Type C cable
- Micro HDMI cable
- Lens cap
- Shoulder strap
- 2 detachable eye masks
- Carry bag
- 2 replaceable 18650 batteries (UN38.3)
- Battery charger
- Quick start guide
Product Range
- Guide TN430 Thermal Binocular - 400 x 300 px, 17μm, 35mm Lens (50Hz)
- Guide TN450 Thermal Binocular - 400 x 300 px, 17μm, 50mm Lens (50Hz)
Technical Information
Specification
| TN430 | TN450 | |
|---|---|---|
| Sensor | ||
| Type | Uncooled VOx Infrared Detector, 8 to 14 μm | |
| Resolution | 400 x 300, 17 μm | |
| NETD | ≤30mK | |
| Frame Rate | 50Hz | |
| Lens | ||
| Focal Length | 35 mm, F1.2 | 50 mm, F1.2 |
| Field of View | 11.1° x 8.33° | 7.78° x 5.84° |
| Optical Zoom | 2.3x | 3.2x |
| Digital Zoom | 1 ~ 4x | |
| Focus | Manual | |
| Display | ||
| Display Type | 0.39' AMOLED x 2 | |
| Resolution | 1024 x 768 | |
| Eyepiece | Exit pupil distance≥16 mm; Diopter: -6 to +6; Interpupillary distance adjustment: 60mm to 70mm; Zoom: 13.8x | |
| Video Output | Digital video | |
| Range Performance | ||
| Detection Range | 1000 m | 1400 m |
| Hardware | ||
| Laser Rangefinder | Max. measuring range: 1000m | |
| Others | GPS, Compass, Gyroscope, Bluetooth | |
| Functions | ||
| Scene Modes | Enhanced, Highlight, and Natural | |
| Colour Palettes | Black Hot, White Hot, Adjustable Red Hot, Iron Red, Blue Hot, Green Hot | |
| Recording Function | Photo/Video | |
| WiFi | 2.4 G | |
| Supported Application | TargetIR | |
| Others | PIP, Hot spot tracking | |
| Power | ||
| Battery Type | 2 replaceable 18650 batteries | |
| Operating Time | ≥ 5.5 hours | |
| Interface | ||
| USB | USB Type-C | |
| Video Interface | Micro HDMI | |
| Mechanical Interface | UNC ¼"-20 (Tripod mounting, L-bracket is required), Mechanical expansion interface | |
| System | ||
| Language Settings | Chinese / English / Russian / German / French | |
| Memory Capacity | 16 GB | |
| Environmental | ||
| Operating temperature | -30 °C to 50 °C | |
| Storage temperature | -40 °C to 60 °C | |
| Humidity | 10 % to 95 % non-condensing | |
| Shock | 30 G at 11 ms half-sine pulse (as per IEC60068-2-27) | |
| Drop | 1 m | |
| Encapsulation | IP66 | |
| Certification | IP66, FCC, CE, RoHS, EAC, un38.3 | |
| Physical | ||
| Weight | ≤860 g | ≤880 g |
| Size | 162 x 146 x 70 mm | |
