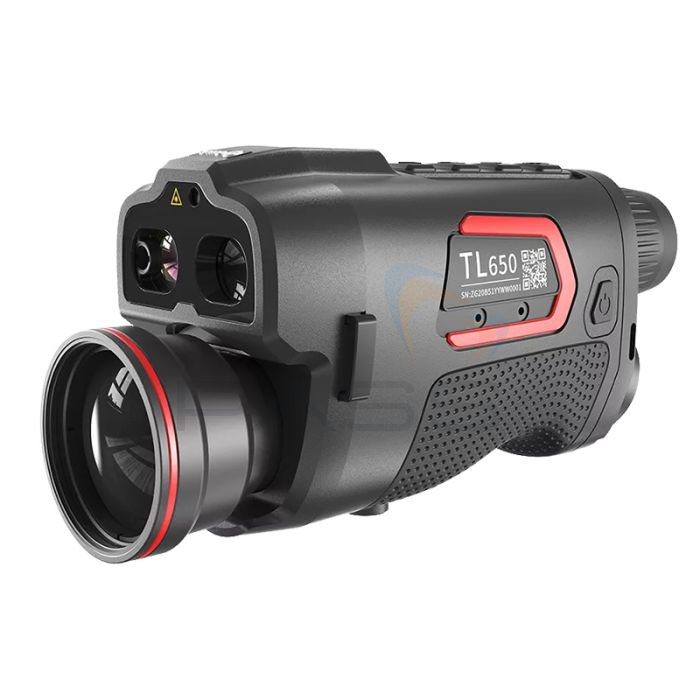

Guide TL Series Multispectral Fusion Thermal Monocular, 640x480px - Choice of Model
- 12μm
- 35mm or 50mm lenses
- All weather observation
SKU
GU-TL-SERIES-640
The Guide TL Series has an all-in-one design for all-day and all-night observation. The thermal and night vision modes are integrated to consider the time of day and perform a quick search to identify a target. Ideal for entertainment, outdoor activities, and law enforcement officials.
Choose from 35mm or 50mm lenses with 12μm.
Key Features
- Integrated thermal and night vision for all-day and all-weather observation
- 12μm HD thermal sensor and AMOLED display for reduced visual fatigue
- Built-in laser rangefinder for 600m accurate target detection
- Built-in GPS for accurate target positioning
- Combined multispectral viewing modes for faster observation
- Removable single 18650 battery for 5 hours of battery life
- OTA firmware upgrade by connecting to the APP
- IP67 encapsulation, rugged and durable
What's Included?
- Multispectral Fusion Thermal Monocular
- Lens cover
- Wrist strap
- Battery charger
- Single 18650 battery
- USB Type-C cable
- Quick use guide
- Guide warranty card
Product Range
- Guide TL630 Multispectral Fusion Thermal Monocular - 640 x 480 px, 12μm, 35mm Lens (50Hz)
- Guide TL650 Multispectral Fusion Thermal Monocular - 640 x 480 px, 12μm, 50mm Lens (50Hz)
£1,574.17
£1,889.00 inc vat
1 Option in Stock:
Available Next Working Day*
Technical Information
Specification
| TL630 | TL650 | |
|---|---|---|
| Thermal | ||
| Sensor Type | Uncooled VOx Infrared Detector, 8 to 14 μm | |
| Resolution | 640 x 480, 12 μm | |
| NETD | ≤30mk | |
| Frame Rate | 50Hz | |
| Lens | ||
| Focal Length | 35 mm; F1.0 | 50 mm, F1.2 |
| Field of View | 12.4° x 9.3° | 8.7° x 6.6° |
| Optical Zoom | 1.5x | 2.0x |
| Digital Zoom | 1x, 2x, 4x, 8x | |
| Focus | Manual | |
| Display | ||
| Display Type | 0.39' AMOLED | |
| Resolution | 1920 x 1080 | |
| Eyepiece | Exit pupil distance ≥ 15 mm; Diopter: -4 to +4 | |
| Eyepiece Zoom | 13.8x | |
| Video Output | Analog video | |
| Hardware | ||
| Laser Rangefinder | Max. measuring range: 600m | |
| Others | GPS, Compass, Gyroscope, Bluetooth | |
| Range Performance | ||
| Detection Range | 1000 m | 1400 m |
| Functions | ||
| Image Modes | IR, Visible, Fusion 1, Fusion 2, Fusion 3 | |
| Scene Modes | IR: Enhanced, Highlight and Natural; Visible: Day, Night and Low-light | |
| Colour Palettes | IR: White Hot, Black Hot, Red Hot, Iron Red, Blue Hot | |
| Recording Function | Photo/Video | |
| WiFi | 2.4G | |
| Supported Application | TargetIR | |
| Firmware OTA | Upgrade device firmware via app connection | |
| Others | PIP, Hot spot tracking, Target localisation | |
| Power | ||
| Battery Type | Single, replaceable 18650 battery | |
| Operating Time | ≥ 5 hours | |
| Environmental | ||
| Operating temperature | -20 °C to 50 °C | |
| Storage temperature | -40 °C to 60 °C | |
| Humidity | 10 % to 95 % non-condensing | |
| Shock | 30 G at 11 ms half-sine pulse (as per IEC60068-2-27) | |
| Drop | 1 m | |
| Encapsulation | IP67 | |
| Certification | IP67, FCC, CE, RoHS, EAC, WEEE, un38.3, IEC 60825-1 Class 2 | |
| Interface | ||
| USB | USB Type-C | |
| Mechanical Interface | UNC ¼"-20 (Tripod mounting), Mechanical expansion interface | |
| System | ||
| Language Settings | English / Russian / German / French / Italian / Spanish / Japanese / Korean / Polish | |
| Memory Capacity | 64GB | |
| Physical | ||
| Weight | ≤530g | ≤567g |
| Size | 180 x 70 x 90mm | 190 x 70 x 90mm |
