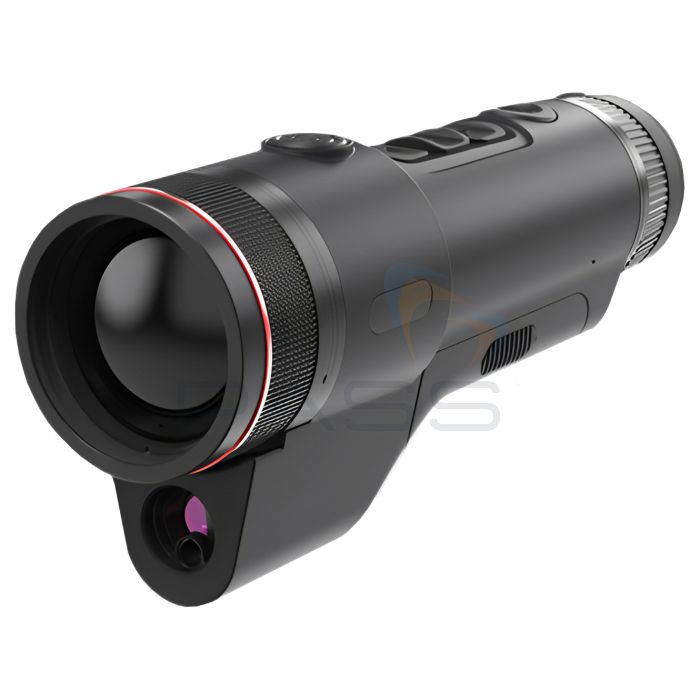

Guide TJ LRF Pro Series Handheld Thermal Imaging Monocular
- 35/50mm F1.0 lens
- 1800m/2600m detection range
- Unique design for easy operation in the dark
SKU
TJ-LRF-PRO
The Guide TJ LRF Pro Series is equipped with a 12μm high-sensitivity infrared detector, providing clear and realistic visibility of targets in low-light conditions. Its 0.5” large AMOLED display delivers a visual experience comparable to a home theatre. Furthermore, the integrated 1500m laser rangefinder, which can be activated with a single button, enhances the safety and ease of your explorations.
The TJ LRF Pro Series features an advanced 12μm infrared detector with a NETD of 20mK, enabling it to detect minute temperature differences even in total darkness. Its large 1600 x 1200 AMOLED display offers an exceptional visual experience, similar to watching a 90” home theatre screen from 2.5 metres away, enhancing both image clarity and viewing comfort.
The TJ LRF Pro Series provides flexibility with its various focal lengths, making it perfect for long-range observation and hunting. The 50mm F1.0 lens can identify targets up to 2600 metres away, while the 35mm F1.0 lens has a detection range of 1800 metres.
Utilising standard 18650 batteries with an integrated safety circuit protection design, you simply need to ensure the positive and negative poles of the two cells are positioned oppositely during replacement. This makes the process easier and minimizes the need for identification and memorisation.
The device is user-friendly for both left and right-handed operation, with easily interchangeable eye masks and hand straps. It also features photo and video capture capabilities, complete with a built-in microphone for audio recording.
Key Features
- 12μm advanced thermal detector, NETD down to 20mK
- Stunning visual effects like a 90” home theatre at 2.5m distance
- Laser Range Finder up to 1500m
- Video recording including sound
- 0.5" AMOLED display, top-notch visual effect
- 35/50mm F1.0 lens
- 1800m/2600m detection range
- Unique design for easy operation in the dark
- Ambidextrous design
- Video recording including sound
What's Included?
- Choice of Guide TJ LRF Pro Handheld Thermal Imaging Monocular
- Wrist strap
- Battery charger
- 18650 battery x 2, 5V2A adapter (US, Britain, Australia and Europe)
- USB Type-C cable
- Quick use guide
- Guide warranty card
Product Range
- Guide TJ630LP Handheld Thermal Imaging Monocular, 35mm (50Hz)
- Guide TJ650LP Handheld Thermal Imaging Monocular, 50mm (50Hz)
Videos
TJ LRF Series Introduction
Introducing the #guidesensmart TJ LRF Series Handheld Thermal Imaging Monocular
TJ 630/650LP Models
Introducing the #guidesensmart TJ 630/650LP Handheld Thermal Imaging Monocular
Technical Information
Specification
| TJ630LP | TJ650LP | |
|---|---|---|
| Sensor | ||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |
| Resolution | 640 x 512@12μm | |
| NETD | 20mK | |
| Frame Rate | 50Hz | |
| Lens | ||
| Objective Lens | 35mm, F1.0 | 50mm, F1.0 |
| Field of View | 12.5° x 9.4° | 8.8° x 6.6° |
| FOV m@100m | 22 x 16 | 15 x 12 |
| Magnification | 3.31x~26.48x | 4.73x~37.84x |
| Detection Range | 1800m/1950yd | 2600m/2800yd |
| Display | ||
| Display Type | 0.5'' AMOLED 1600 x 1200 | |
| Colour Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |
| Eyepiece | Exit pupil distance 16 mm; Diopter: -6 to +6; Zoom: 18x | |
| Hardware | ||
| Laser rangefinder | 1500m/1630yd | |
| WiFi | 2.4G, 5G | |
| Interface | USB Type-C (Power supply/USB2.0) | |
| Others | Microphone, Compass, Gyroscope, Bluetooth | |
| System | ||
| Recording Function | Photo/Video (Audio recording included) | |
| Memory Capacity | 64GB | |
| Power | ||
| Battery Type | 2 replaceable 18650 batteries | |
| Operating Time | 9 hours | |
| Environmental | ||
| Operating Temperature | -20°C to 50°C / -4°F to +122°F | |
| Encapsulation | IP67 | |
| Physical | ||
| Weight(g/oz) | 584/20.60 | 618/21.80 |
| Size(mm/in) | 247 x 101 x 70/9.72 x 3.98 x 2.76 | |
| Optional | Bluetooth remote control, 18650 battery | |
Document Downloads
Additional Information
SKU
TJ-LRF-PRO
Guide TJ LRF Pro Series Handheld Thermal Imaging Monocular
£2,185.00
£2,622.00 inc vat
£2,185.00
£2,622.00 inc vat
