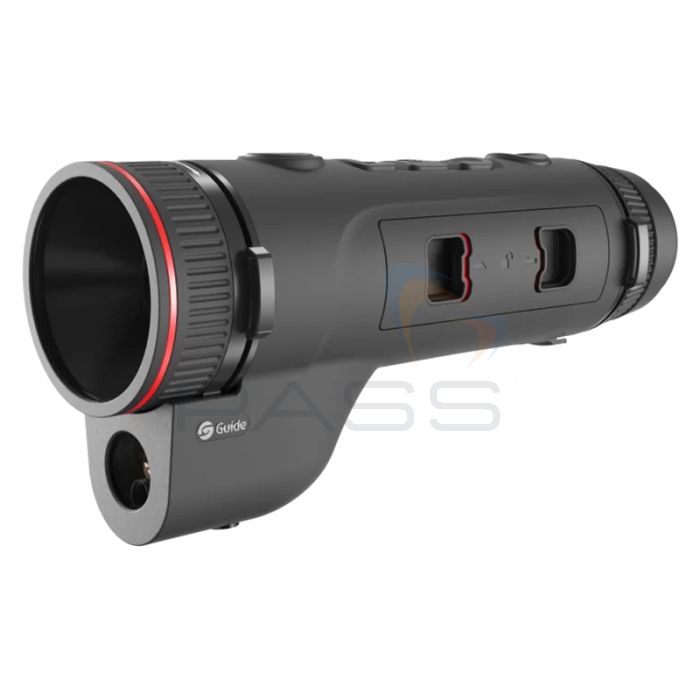

Guide TJ L Series Handheld Thermal Imaging Monocular (400×300)
- 25/35mm F1.0 focal length
- 1000m laser ranging
- 1000/1400m detection range
SKU
TJ-L-420/30
The Guide TJ L Series monoculars feature cutting-edge thermal imaging technology, utilizing a high-sensitivity infrared detector to provide clear vision in the dark. The full-HD display enhances these capabilities. Designed for two-hand operation, it includes laser ranging, and video recording, and offers a 12-hour battery life, making it perfect for nighttime activities.
A highly sensitive IR detector with a NETD of less than 25mK can detect even minor temperature variations, producing clearer images. The 1920x1080 HD AMOLED screen delivers vibrant colours and superior image quality, enhancing the comfort of observation.
The integrated laser rangefinder can detect targets up to 1000 metres, improving distance accuracy. The 25mm F1.0 lens can identify targets up to 1000 metres away, while the 35mm F1.0 lens extends this range to 1400 metres, providing adaptability in different settings.
Key Features
- 12µm advanced thermal detector, NETD<25mK
- Full-HD 1920x1080 AMOLED display
- Laser Range Finder up to 1000m
- The design of the buttons and battery facilitates blind operation in the dark
- Adaptable for left-and right-handed use
- Video recording including sound
- IP67, 12 hours of operation
- 25/35mm F1.0 focal length
- 1000m laser ranging
- 1000/1400m detection range
What's Included?
- Choice of Guide TJ L Series Handheld Thermal Imaging Monocular
- Wrist strap
- Battery charger
- 18650 batteryx2, 5V2A adapter (US, Britain, Australia and Europe)
- USB Type-C cable
- Quick use guide
- Guide warranty card
Product Range
- Guide TJ420L Handheld Thermal Imaging Monocular, 25mm (50Hz)
- Guide TJ430L Handheld Thermal Imaging Monocular, 35mm (50Hz)
Videos
TJ LRF Series Introduction
Introducing the #guidesensmart TJ LRF Series Handheld Thermal Imaging Monocular
Technical Information
Specification
| TJ420L | TJ430L | |
|---|---|---|
| Sensor | ||
| Type | Uncooled VOx Infrared Detector, 8 to 14 µm | |
| Resolution | 400 x 300@12µm | |
| NETD | 25mK | |
| Frame Rate | 50Hz | |
| Lens | ||
| Objective Lens | 25mm, F1.0 | 35mm, F1.0 |
| Field of View | 11.0° x 8.2° | 7.9° x 5.9° |
| FOV m @100m | 19 x 14 | 14 x 10 |
| Magnification | 3.04x~12.16x | 4.25x~17.0x |
| Detection Range | 1000m/yd | 1400m/yd |
| Display | ||
| Display Type | 0.39" AMOLED 1920x1080 | |
| Colour Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |
| Eyepiece | Exit pupil distance 16 mm; Diopter: -6 to +6; Zoom: 18x | |
| Hardware | ||
| Laser Rangefinder | 1000m/yd | |
| WiFi | 2.4G, 5G | |
| Interface | USB Type-C (Power supply/USB2.0) | |
| Others | Microphone, Compass, Gyroscope, Bluetooth | |
| System | ||
| Recording Function | Photo/Video (Audio recording included) | |
| Memory Capacity | 32GB | |
| Power | ||
| Battery Type | 2 replaceable 18650 batteries | |
| Operating Time | 12 hours | |
| Environmental | ||
| Operating Temperature | -20 °C to 50 °C/ -4°F to +122°F | |
| Encapsulation | IP67 | |
| Physical | ||
| Weight(g/ oz) | 558/ 19.68 | 583/ 20.56 |
| Size(mm/ in) | 234 x 97 x 66/9.21 x 3.82 x 2.60 | 243 x 97 x 66/9.57 x 3.82 x 2.60 |
| Optional | Bluetooth remote control, 18650 battery | |
