Guide TE Series Handheld Thermal Imaging Monocular
The TE Series Monoculars have a single-button and single-ring design for easy operation. They also have a sensitive infrared detector compatible with various resolutions and lens options.
A quick-charge function provides an hour of use from a 10-minute charge, while the rechargeable battery offers up to 6 hours of runtime. The monoculars include a 0.32-inch AMOLED display with 25mm eye relief. The TE Series supports photos, videos, and audio recordings and has dual-band WiFi with 16GB of built-in storage.
Key Features
- 12μm infrared detector
- Multiple resolutions and lens options
- Weight: Over 200 grams
- Runtime: Up to 6 hours
- Charging: 20W quick charge
- 10-minute charge = 1 hour use
- Screen: 0.32-inch AMOLED
- Resolution: 800 x 600
- Eye relief: 25mm
- Built-in storage: 16GB
- WiFi: Dual-band with 26.5 meters max range
- Download speed: Upgrade packages in 10 seconds
What's Included?
- Device
- Lens cover
- Eye mask
- Wrist strap
- USB Type-C cable
- Quick use guide
- Safety Information Manual
- Warranty card
- Quick charging adapter (TE411 & TE421 only)
Product Range
- Guide TE211 Handheld Thermal Imaging Monocular, 10mm, F1.0
- Guide TE411 Handheld Thermal Imaging Monocular, 19mm, F1.0

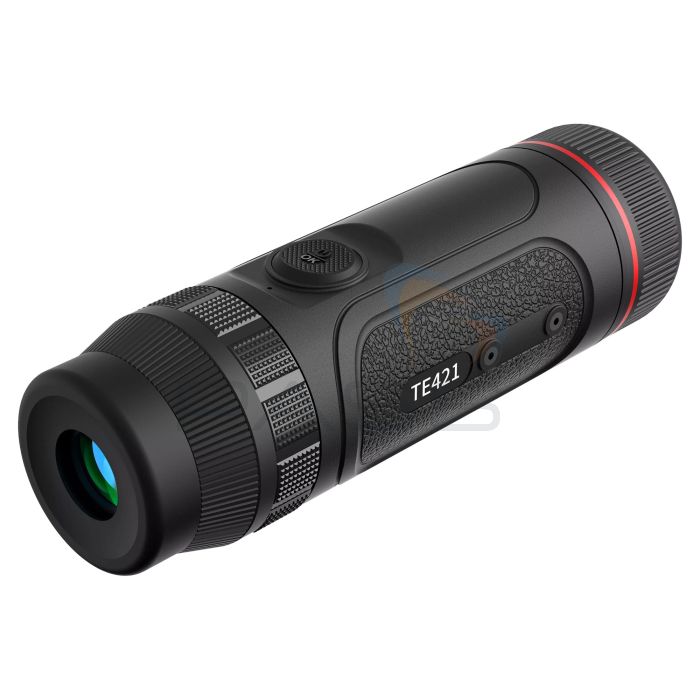

- Guide TE421 Handheld Thermal Imaging Monocular, 25mm, F1.0
| TE211 | TE411 | TE421 | |
|---|---|---|---|
| Sensor | |||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | ||
| Resolution | 256 x 192@12μm | 400 x 300@12μm | |
| NETD | 30mK | 25mK | |
| Frame Rate | 50Hz | ||
| Lens | |||
| Objective Lens | 10mm, F1.0 | 19mm, F1.0 | 25mm, F1.0 |
| Field of View | 17.5° x 13.1° | 14.4° x 10.8° | 11° x 8.2° |
| FOV m@100m | 31 x 23 | 25 x 19 | 19 x 14 |
| Magnification | 1.2x~4.8x | 1.4x~5.6x | 1.9x~7.6x |
| Detection Range | 500m/550yd | 1000m/1090yd | 1300m/1400yd |
| Focus | Focus-free | Manual | |
| Display | |||
| Display Type | 0.32'' AMOLED 800 x 600 | ||
| Colour Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | ||
| Eyepiece | Eye relief: 25mm; Diopter: -5 to +5; Zoom: 14x | ||
| Hardware | |||
| WiFi | 2.4G, 5G | ||
| Interface | USB Type-C, Support charging | ||
| Others | Microphone, Bluetooth | ||
| System | |||
| Recording Function | Photo/Video (Audio recording included) | ||
| Memory Capacity | 16GB | ||
| Power | |||
| Battery Type | Built-in battery | ||
| Operating Time | 6 hours (Support 20W quick charging) | 5 hours (Support 20W quick charging) | |
| Environmental | |||
| Operating Temperature | -20°C to 50°C / -4°F to +122°F | ||
| Encapsulation | IP67 | ||
| Physical | |||
| Weight (g/oz) | 248/8.75 | 308/10.86 | 315/11.11 |
| Size (mm/in) | 47 x 47 x 132/1.85 x 1.85 x 5.20 | 47 x 47 x 148/1.85 x 1.85 x 5.83 | 47 x 47 x 155/1.85 x 1.85 x 6.10 |
