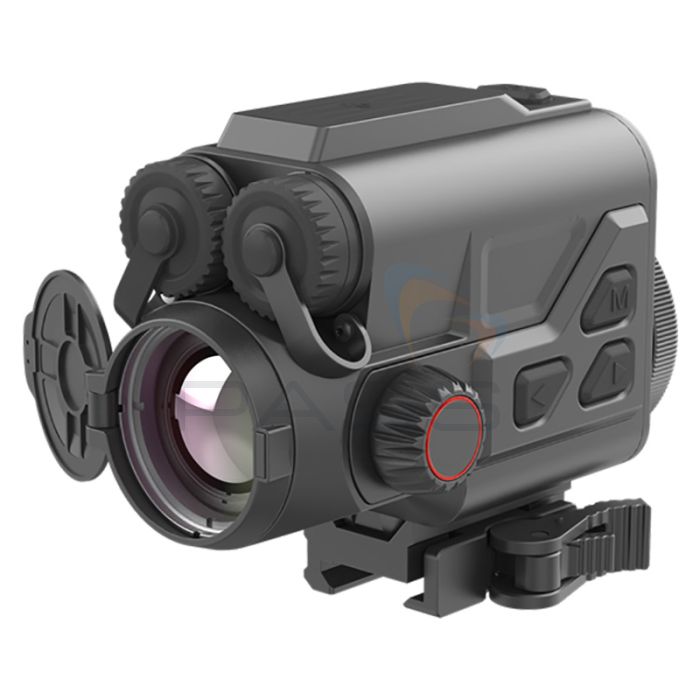

Guide TB630 LRF Clip-on Thermal Imaging Attachment
- Shock resistance up to 1000G/ms
- Compact design, lightweight and portable
- IP68 submersion waterproof
SKU
GU-TB630LRF
MPN
TB630LRF
The Guide TB TB630 LRF combines precision and portability. Its lightweight magnesium alloy housing enhances accuracy, weighing over 20% less than similar products. With a full-HD AMOLED display providing a wider viewing angle and richer colours, it’s the perfect choice for relaxed hunting.
The TB630 LRF combines a highly sensitive 12µm infrared detector with NETD down to 20mK for clear imaging day and night. Its built-in laser rangefinder extends up to 1000 meters (1090 yards), aiding swift target detection.
Featuring a large 0.39” AMOLED display (1920x1080 pixels) for superior image quality and detailed target information. Its rugged design, including IP68 encapsulation, 2-metre drop resistance, and 1000G/ms shock resistance, makes it an ideal outdoor companion in challenging conditions.
Key Features
- Thermal detector: 640 x 512@12μm, NETD<20mK
- Full-HD 1920 x 1080 AMOLED display
- Magnesium alloy housing, compact design, lightweight but powerful
- Laser Range Finder up to 1000m
- Double-side focus knob for easy operation
- Video recording including sound
- Shock resistance up to 1000G/ms
- Compact design, lightweight and portable
- IP68 submersion waterproof
What's Included?
- Guide TB630 LRF Clip-on Thermal Imaging Attachment
- Battery charger
- 18650 battery x 2
- 5V2A adapter (US, Britain, Australia and Europe)
- USB Type-C cable
- Quick use guide
- Guide warranty card
Videos
Introduction
Introducing the #guidesensmart TB630 LRF Thermal Imaging Attachment
Technical Information
Specification
| Sensor | |
|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm |
| Resolution | 640 x 512@12μm |
| NETD | 20mK |
| Frame Rate | 50Hz |
| Lens | |
| Objective Lens | 35mm, F1.0 |
| Field of View | 12.5° x 9.4° |
| FOV m@100m | 22 x 16 |
| Magnification | 1x |
| Detection Range | 1800m/1950yd |
| Display | |
| Display Type | 0.39" AMOLED 1920 x 1080 |
| Colour Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Eyepiece | Exit pupil distance 20mm; Zoom: 9.5x |
| Hardware | |
| Laser Rangefinder | 1000m/1090yd |
| WiFi | 2.4G, 5G |
| Interface | USB Type-C (Power supply/USB2.0) |
| Others | Microphone, Bluetooth |
| System | |
| Recording Function | Photo/Video (Audio recording included) |
| Memory Capacity | 64GB |
| Power | |
| Battery Type | Single, replaceable 18650 battery |
| Operating Time | 6 hours |
| Environmental | |
| Operating Temperature | -20°C to 50°C / -4°F to +122°F |
| Shock | 1000 G at 1 ms half-sine pulse (as per IEC60068-2-27) |
| Encapsulation | IP68 |
| Physical | |
| Weight(g/oz) | 447/15.77 |
| Size(mm/in) | 130 x 80 x 79/5.12 x 3.15 x 3.11 |
| Optional | 18650 battery, Bluetooth remote control, Cover ring adapter |
