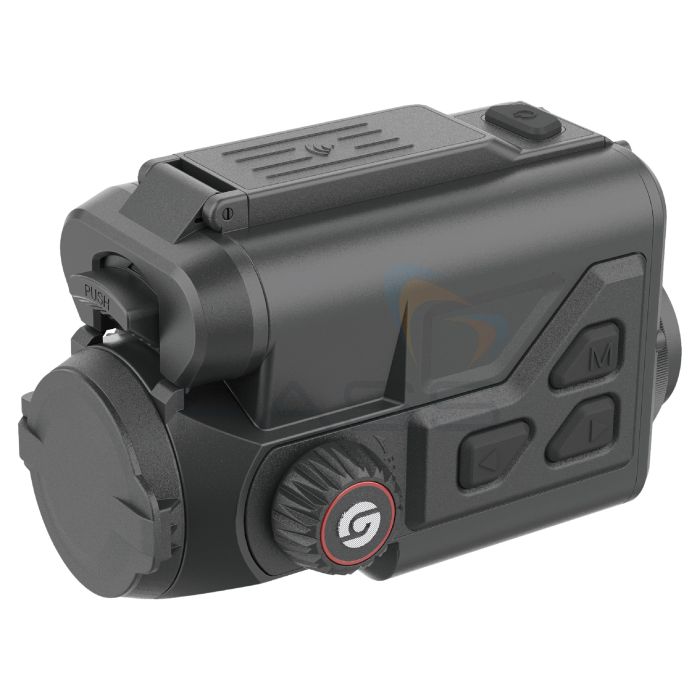

Guide TB Series Clip-on Thermal Imaging Attachment
- IP68, Shock resistance up to 1000G/ms
- NETD<25m / NETD<20m (TB630)
- 25mm, F1.0 or 35mm, F1.0
- 400×300@12μm or 640×512@12μm (35mm lens)
SKU
TB-42/30/650
The Guide TB Series balances precision and portability. Its magnesium alloy housing is over 20% lighter than comparable products while maintaining enhanced precision. The compact design features a full-HD AMOLED display, perfect for relaxed hunting adventures.
Encounter your journey of rugged adventures with confidence. The superior waterproof performance and shock resistance up to 1000G/ms, combined with a lightweight yet powerful magnesium alloy housing, ensure enduring performance even in challenging conditions.
The eyepiece features a 1920x1080 high-definition AMOLED screen, delivering vibrant colours and excellent image quality. This enhancement significantly improves observation comfort. Additionally, the highly sensitive IR detector with a NETD of less than 25mK (20mK for the TB630 model) enables precise temperature differentiation, resulting in sharper and clearer imaging.
The devices, compatible with standard 18650 batteries, incorporate a safety circuit protection design. When replacing the batteries, align the positive and negative poles of the two cells oppositely, streamlining the process and minimizing the need for identification and memory.
Three lens options: a 25mm, F1.0 lens with 400 x 300@12μm resolution, a 35mm, F1.0 lens with the same resolution, and a 35mm, F1.0 lens with 640 x 512@12μm resolution.
Key Features
- 12μm advanced thermal detector
- NETD<25m (TB420 & TB430) / NETD<20m (TB630)
- Full-HD 1920x1080 AMOLED display
- Magnesium alloy housing, compact design, lightweight but powerful
- Two Standard 18650 batteries
- Blind-mountable universal battery
- 12 hours of operation (TB420 & TB430) / 10 hours of operation (TB630)
- Double Side focus knob for easy operation
- Video recording including sound
- IP68, Shock resistance up to 1000G/ms
- 25mm, F1.0 or 35mm, F1.0
- 400×300@12μm or 640×512@12μm (35mm lens)
What's Included?
- Choice of Clip-on Thermal Imaging Attachment
- Battery charger
- 18650 battery x 2
- 5V2A adapter (US, Britain, Australia and Europe)
- USB Type-C cable
- Quick use guide
- Guide warranty card
Product Range
- Guide TB420 Clip-on Thermal Imaging Attachment, 25mm, 400 x 300 (50Hz)
- Guide TB430 Clip-on Thermal Imaging Attachment, 35mm, 400 x 300 (50Hz)
- Guide TB630 Clip-on Thermal Imaging Attachment, 35mm, 640 x 512 (50Hz)
Videos
Introduction
Introducing the #guidesensmart TB Series Clip-on Thermal Imaging Attachment
Ultra-light, Ultra-precise
Meet the #guidesensmart TB series clip-on thermal imaging attachment: ultra-light, ultra-precise.
Technical Information
Specification
| TB420 | TB430 | TB630 | |
|---|---|---|---|
| Sensor | |||
| Type | Uncooled VOx Infrared Detector, 8 to 14 µm | ||
| Resolution | 400 x 300@12µm | 640 x 512@12μm | |
| NETD | 25mK | 20mK | |
| Frame Rate | 50Hz | ||
| Lens | |||
| Objective Lens | 25mm, F1.0 | 35mm, F1.0 | |
| Field of View | 10.9° x 8.2° | 7.8° x 5.9° | 12.5° x 9.4° |
| FOV m @100m | 19 x 14 | 14 x 10 | 22 x 16 |
| Magnification | 1x | ||
| Detection Range | 1000m/yd | 1400m/yd | |
| Display | |||
| Display Type | 0.39" AMOLED 1920x1080 | ||
| Eyepiece | Exit pupil distance 20 mm; Zoom: 8.9x | Exit pupil distance 20 mm; Zoom: 6.4x | Exit pupil distance 20 mm; Zoom: 9.5x |
| Hardware | |||
| WiFi | 2.4G, 5G | ||
| Interface | USB Type-C (Power supply/USB2.0) | ||
| Others | Microphone, Bluetooth | ||
| System | |||
| Recording Function | Photo/Video | ||
| Memory Capacity | 32GB | 64GB | |
| Power | |||
| Battery Type | 2 replaceable 18650 batteries | ||
| Operating Time | 12 hours | 10 hours | |
| Environmental | |||
| Operating Temperature | -20 °C to 50 °C/ -4°F to +122°F | ||
| Shock | 1000 G at 1 ms half-sine pulse (as per IEC60068-2-27) | ||
| Encapsulation | IP68 | ||
| Physical | |||
| Weight(g/ oz) | 420/ 14.82 | 425/ 14.99 | 440/ 15.52 |
| Size(mm/ in) | 128 x 79 x 79/ 5.04 x 3.11 x 3.11 | ||
| Optional | 18650 battery, Bluetooth remote control, Cover ring adapter | ||
