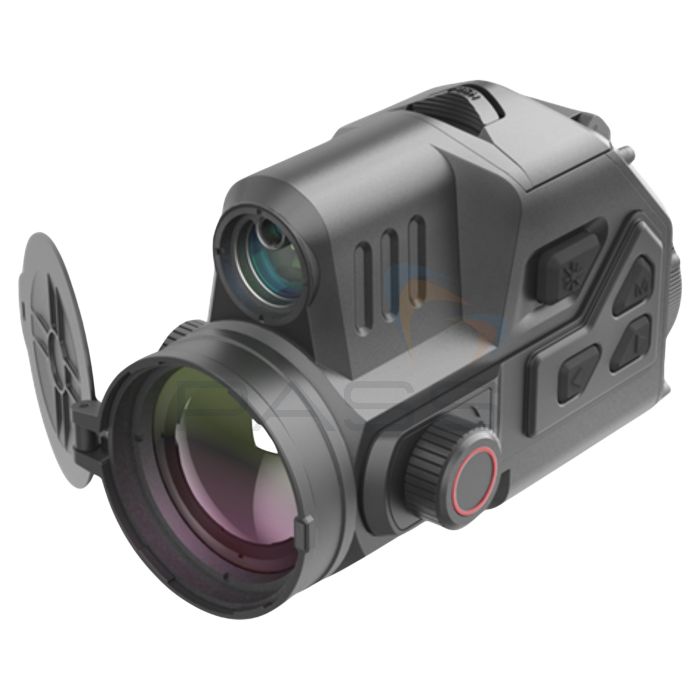

Guide TB LRF Pro Series Clip-on Thermal Imaging Attachment
- Shock resistance up to 1000G/ms
- IP68 dustproof & waterproof
- 35mm, F1.0 or 50mm, F1.
SKU
TB-LRF-PRO
The Guide TB LRF Pro Series offers precision and portability. With a lightweight design, it includes a built-in laser rangefinder (up to 1,000 metres range), dual batteries for extended use, and a full HD AMOLED display. Intelligent features enhance its capabilities.
The TB LRF Pro Series includes a 12μm infrared detector with exceptional sensitivity (NETD as low as 20mK). This advanced detector can detect subtle temperature variations. Additionally, it boasts a 0.39” AMOLED display with a vivid 1920x1080 resolution, enhancing image details.
The attachments feature a built-in laser rangefinder with a 1,000-metre range, perfect for precise target detection. Their rugged, waterproof design suits outdoor adventures. Choose from two models: one with a 35mm, F1.0 lens, and another with a 50mm, F1.0 lens.
Key Features
- 12μm advanced thermal detector, NETD down to 20mK
- Full-HD 1920 x 1080 AMOLED display
- Built-in laser rangefinder up to 1000m
- Support image tracing, automatic recording, AI tracking, etc.
- Double-side focus knob for easy operation
- Video recording including sound
- Shock resistance up to 1000G/ms
- IP68 dustproof & waterproof
- 35mm, F1.0 or 50mm, F1.0
What's Included?
- Choice of Guide TB LRF Pro Series Thermal Imaging Attachment
- Battery charger
- 18650 battery x 2
- 5V2A adapter (US, Britain, Australia and Europe)
- USB Type-C cable
- Quick use guide
- Guide warranty card
Product Range
- Guide TB630LP LRF Pro Clip-on Thermal Imaging Attachment, 35mm (50Hz)
- Guide TB650LP LRF Pro Clip-on Thermal Imaging Attachment, 50mm (50Hz)
Videos
TB LRF Pro Series Introduction
Introducing the #guidesensmart TB630 LRF Thermal Imaging Attachment
Technical Information
Specification
| TB630LP | TB650LP | |
|---|---|---|
| Sensor | ||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |
| Resolution | 640 x 512@12μm | |
| NETD | 20mK | |
| Frame Rate | 50Hz | |
| Lens | ||
| Objective Lens | 35mm, F1.0 | 50mm, F1.0 |
| Field of View | 12.5° x 9.4° | 8.8° x 6.6° |
| FOV m@100m | 22 x 16 | 15 x 12 |
| Magnification | 1x | |
| Detection Range | 1800m/1950yd | 2600m/2800yd |
| Display | ||
| Display Type | 0.39" AMOLED 1920 x 1080 | |
| Colour Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |
| Eyepiece | Exit pupil distance 20mm; Zoom: 9.5x | Exit pupil distance 20mm; Zoom: 6.8x |
| Hardware | ||
| Laser rangefinder | 1000m/1090yd | |
| WiFi | 2.4G, 5G | |
| Interface | USB Type-C (Power supply/USB2.0) | |
| Others | Microphone, Bluetooth | |
| System | ||
| Recording Function | Photo/Video (Audio recording included) | |
| Memory Capacity | 64GB | |
| Power | ||
| Battery Type | 2 replaceable 18650 batteries | |
| Operating Time | 9 hours | |
| Environmental | ||
| Operating Temperature | -20°C to 50°C / -4°F to +122°F | |
| Shock | 1000 G at 1 ms half-sine pulse (as per IEC60068-2-27) | |
| Encapsulation | IP68 | |
| Physical | ||
| Weight(g/oz) | 561/19.79 | 582/20.53 |
| Size(mm/in) | 161 x 89 x 97/6.34 x 3.50 x 3.82 | |
| Optional | 18650 battery, Bluetooth remote control, Cover ring adapter | |
