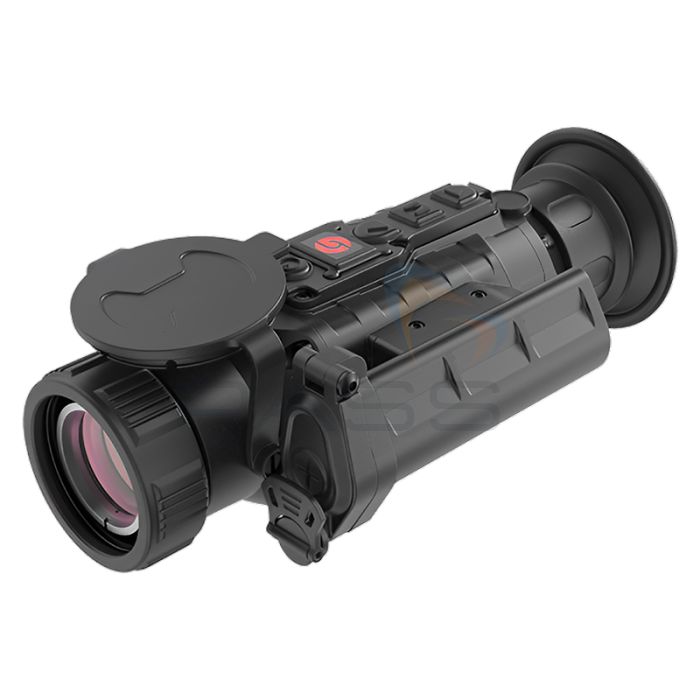

Guide TA Gen2 Aquila Series Clip-On Thermal Imaging Attachment, 400x300px - Choice of Model
Description
The Guide TA Gen2 Aquila Series Clip-On Thermal Imaging Attachment can be attached to a daytime scope to enable night vision. The attachments are suitable for law enforcement officers, hunting, outdoor sports, and security detail. They are easy to install with no re-zeroing required and the battery provides 7 hours of life and can be easily replaced.
Highlight your target using the six colour palettes and the one-button switch, while the lower NETD provides excellent sensitivity and high stability. The Aquila series are available in lenses sized 25mm, 35mm, or 50mm with a pitch of 17 µm.
Key Features
- 400 x 300 IR resolution for clear images
- TDE Tech and PureIR algorithm for detail enhancement of targets
- Fast and easy replaceable 18650 battery for 7 hours of operation
- One-step installation and no re-zeroing
- Wireless remote control for easy operation
- IP67 dustproof and waterproof rated
- 6 colour palettes for tasks in changing conditions
- A wide range of operating temperatures (-30 to 50 C)
- High-resolution thermal imaging detectors
- 400x300 pixel resolutions
- HD OLED displays
- Exceptional quality with high contrast and rich detail
- Long battery life
- Multiple scene modes
- Operate in temperatures ranging from -30°C to 50°C
- Compensation methods
- Colour palettes
What's Included?
- Choice of Thermal Imaging Attachment
- Eye mask
- Carry bag
- 7-pin LEMO to USB cable
- Battery charger
- 18650 battery
- Quick start guide
Product Range
- Guide TA421 Clip-on Thermal Imaging Attachment - 400x300 px, 17μm, 25mm lens (50Hz)
- Guide TA431 Clip-on Thermal Imaging Attachment - 400x300 px, 17μm, 35mm lens (50Hz)
- Guide TA451 Clip-on Thermal Imaging Attachment - 400x300 px, 17μm, 50mm lens (50Hz)
Downloads
Brochures & Catalogues
Tech Specs
| TA421 | TA431 | TA451 | |
|---|---|---|---|
| Infrared Detector | |||
| Detector Type | VOx | ||
| Detector Resolution and Pitch | 384 x 288, 17 μ m | ||
| Spectral Range | 8 to 14 μ m | ||
| NETD | ≤40 mk | ||
| Frame Rate | 50 Hz | ||
| Lens | |||
| Focal Length | 25 mm; F1.1 | 35 mm; F1.2 | 50 mm; F1.2 |
| Focus | Manual | ||
| Field of Angle | 14.9° x 11.2 | 10.7° x 8 | 7.5° x 5.6 |
| Optical Zoom | 1x | ||
| Digital Zoom | 1x, 2x and 4x | ||
| Power | |||
| Battery Type | Single 18650 battery | ||
| Battery Life | ≥ 7 hours | ||
| Interface | |||
| Video Interface | LEMO | ||
| External Expansion | External Display, Bluetooth remote control, and Picatinny | ||
| Mechanical Interface | Picatinny | ||
| Display | |||
| Display Type | 0.39' OLED | ||
| Resolution | 1024 x 768 | ||
| Eyepiece | Exit pupil distance ≥ 10 mm, Exit pupil diameter ≥ 20 mm | ||
| Video Output | Analog video | ||
| Functions | |||
| Scene Modes | Enhanced, Highlight, and Natural | ||
| Colour Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot | ||
| Hot Spot Tracking | Available | ||
| Compensation Modes | Shutter and scene compensation | ||
| System | |||
| Start-Up | 10 s | ||
| Environmental | |||
| Operating Temperature Range | -30°C to 50°C | ||
| Storage Temperature Range | -45°C to 70°C | ||
| Humidity | 10 % to 95 % non-condensing | ||
| Shock | 500 G at 1 ms half-sine pulse (as per IEC60068-2-27) | ||
| Vibration | 5Hz - 200Hz - 5Hz 0.15mm (as per IEC60068-2-6) | ||
| Encapsulation | IP67 | ||
| Certification | IP67, FCC, CE, RoHS, EAC, WEEE, un38.3, Certification for Air transport | ||
| Physical | |||
| Weight | ≤475 g | ≤490 g | ≤550 g |
| Size (L x W x H) | 153 x 57 x 79 mm | 157 x 58 x 79 mm | 178 x 62 x 83 mm |
