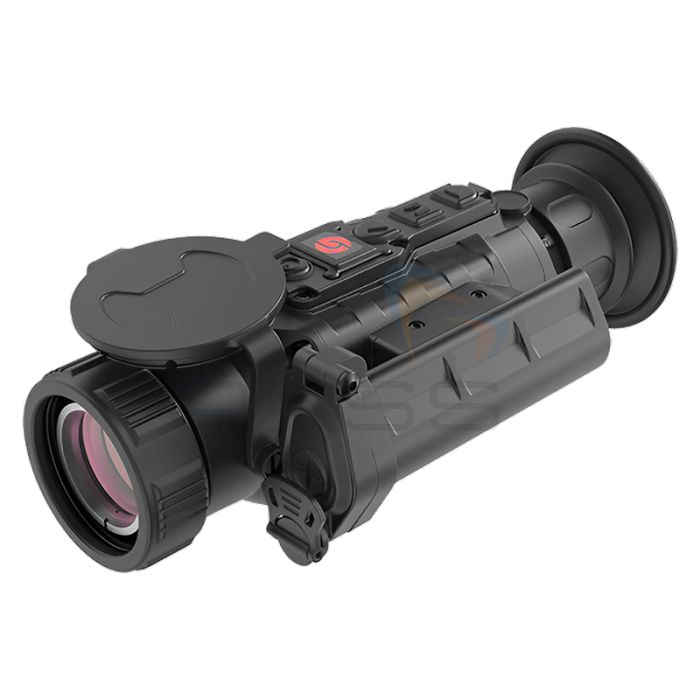

Guide TA Gen2 Aquila Series Clip-On Thermal Imaging Attachment, 640x480px - Choice of Model
Description
The Guide TA Gen2 Aquila Series Clip-On Thermal Imaging Attachment is suitable for people in the Marine Navigation, Search & Rescue, and Law Enforcement sectors. However, the attachments can also be enjoyed by anyone up for an outdoor adventure. They can help you hunt your prey and highlight the intended target to ensure the opportunity for the perfect shot.
The Aquila Series has a wide range of operating temperatures and a wireless remote control to make your life easier. Available in three lens sizes, 25mm, 35mm, or 50mm.
Key Features
- 640 x 480 IR resolution for clear images
- TDE Tech and PureIR algorithm for detail enhancement of targets
- Fast and easy replaceable 18650 battery for 7 hours of operation
- One-step installation and no re-zeroing
- Wireless remote control for easy operation
- IP 67 dustproof and waterproof-rated
- 6 color palettes for tasks in changing conditions
- A wide range of operating temperatures (-30 to 50 C)
What's Included?
- Choice of Thermal Imaging Attachment
- Eye mask
- Carry bag
- 7-pin LEMO to USB cable
- Battery charger
- 18650 battery
- Quick start guide
Product Range
- Guide TA621 Clip-on Thermal Imaging Attachment - 640x480 px, 12μm, 25mm lens (50Hz)
- Guide TA631 Clip-on Thermal Imaging Attachment - 640x480 px, 12μm, 35mm lens (50Hz)
- Guide TA651 Clip-on Thermal Imaging Attachment - 640x480 px, 12μm, 50mm lens (50Hz)
Downloads
Brochures & Catalogues
Tech Specs
| TA621 | TA631 | TA651 | |
|---|---|---|---|
| Infrared Detector | |||
| Detector Type | VOx | ||
| Detector Resolution and Pitch | 640 x 480, 12 μ m | ||
| Spectral Range | 8 to 14 μ m | ||
| NETD | ≤40 mk | ||
| Frame Rate | 50 Hz | ||
| Lens | |||
| Focal Length | 25 mm; F1.0 | 35 mm; F1.0 | 50 mm; F1.0 |
| Focus | Manual | ||
| Field of Angle | 17.5° x 13.1 | 12.5° x 9.4 | 8.8° x 6.6 |
| Optical Zoom | 1x | ||
| Digital Zoom | 1x, 2x, 4x and 8x | ||
| Power | |||
| Battery Type | Single 18650 battery | ||
| Battery Life | ≥ 7 hours | ||
| Interface | |||
| Video Interface | LEMO | ||
| External Expansion | External Display, Bluetooth remote control, and Picatinny | ||
| Mechanical Interface | Picatinny | ||
| Display | |||
| Display Type | 0.5' OLED | ||
| Resolution | 800 x 600 | ||
| Eyepiece | Exit pupil distance ≥ 20 mm, Exit pupil diameter ≥ 20 mm | ||
| Video Output | Analog video | ||
| Functions | |||
| Scene Modes | Enhanced, Highlight, and Natural | ||
| Color Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot | ||
| Hot Spot Tracking | Available | ||
| Compensation Modes | Shutter and scene compensation | ||
| System | |||
| Start-Up | 10 s | ||
| Environmental | |||
| Operating Temperature Range | -30°C to 50°C | ||
| Storage Temperature Range | -45°C to 70°C | ||
| Humidity | 10 % to 95 % non-condensing | ||
| Shock | 500 G at 1 ms half-sine pulse (as per IEC60068-2-27) | ||
| Vibration | 5Hz - 200Hz - 5Hz 0.15mm (as per IEC60068-2-6) | ||
| Encapsulation | IP67 | ||
| Certification | IP67, FCC, CE, RoHS, EAC, WEEE, un38.3, Certification for Air transport | ||
| Physical | |||
| Weight | ≤540 g | ≤550 g | ≤660 g |
| Size (L x W x H) | 161 x 57 x 79 mm | 161 x 60 x 79 mm | 177 x 66 x 87 mm |
Reviews
Additional Information
| SKU | TA-GEN2-SERIES-640 |
|---|
