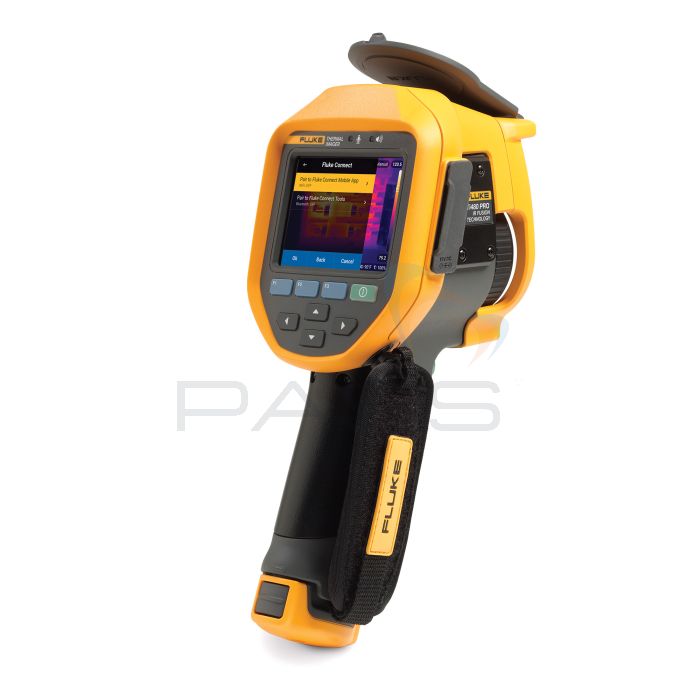

Fluke Ti480 PRO Handheld Thermal Imaging Camera (9Hz) - Ex-Demo Like New

The Fluke Ti480 PRO Handheld Thermal Imaging Camera has an IR resolution of 640 x 480 pixels, a field-of-view of 34° (H) x 24° (V) and a minimum focus distance of 15cm. It can detect and display temperatures between -20°C and +1000°C with an accuracy of ±2°C/ 2%. The Ex-Demo model is in excellent condition, as shown in the images; these are actual images of the product.

For further information about the Fluke Ti480 PRO please visit our Fluke Ti480 PRO Handheld Thermal Imaging Camera page.

Key Features

• Inspect electrical and mechanical apparatus to find potential problems before they become critical issues
• Reduces downtime and costs
• 9 Hz frame rate
• IR resolution: 640 x 480 pixels
• FOV: 34° (H) x 24° (V)
• Minimum focus distance: 15cm
• Temperature range -20°C to +1000°C
• Temperature accuracy: ±2°C/ 2%
• Increased thermal sensitivity allows the user to capture smaller temperature differences
• Supplied with a standard IR lens constructed from 100% diamond-turned germanium with speciality coatings
• Standard IR lens provides the best optics for transmitting energy to create high-quality IR images
• LaserSharp™ Auto Focus: built-in laser distance meter calculates and displays the distance to the target, the camera then automatically adjusts the focus
• MultiSharp™ Focus captures multiple images which are combined to create an image in which near and far targets are clear and in focus
• Use the MultiSharp™ Focus with the SuperResolution function and Fluke Connect SmartView Desktop Software to view 1280 x 960-pixel IR images
• Compatible with Fluke Infrared Smart Lenses, including macro, telephoto and wide-angle lenses
• Fluke Infrared Smart Lenses are interchangeable and do not require calibration when connected to the thermal camera
• Edit and analyse thermal images on the camera
• Nine user-selectable colour palettes in standard and ultra-contrast versions: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale and Grayscale Inverted
• Clearer colour differentiation and a greater array of yellows and greens for obvious heat differentiation
• Apply multiple rectangular markers to determine the minimum, maximum and average temperatures within specific areas of the image
• Apply multiple Delta-T markers to visualise and quantify temperature differences
• Select one Delta-T marker to serve as the default value, all other Delta-T markers will indicate temperatures as a difference concerning the default value
• IR-Fusion™ blending technology combines thermal and visible-light images to varying degrees
• Integrated 5MP visible-light camera
• Save images to the supplied 4GB microSD card
• IR-PhotoNotes™ function allows the user to attach notes and voice annotations to thermal images
• Intuitive touchscreen interface
• Pistol-shaped design enables single-handed operation
• Rugged design for use in industrial environments
• Compatible with Fluke’s Fluke Connect SmartView Desktop Software (available for free download from Fluke)
• Use the Fluke Connect SmartView Desktop Software to view streamed IR images and operate the thermal cameras remotely
• Organise IR images and measurement data in accordance with the corresponding piece of equipment
• Fluke Connect-enabled
• Use in conjunction with the Fluke Connect App and a smartphone or tablet
• Send footage to the Fluke Connect app and the thermographers smartphone or tablet
• Analyse, edit and organise IR images into customisable reports using the Fluke Connect App
• Attach images and data to relevant asset records via the Fluke Connect App
• Dynamic, dependable and durable infrared imagers
• Ideal for troubleshooting and preventative maintenance applications
