Fluke RSE600/C Mounted Thermal Imaging Camera – Choice of Frame Rate
Description

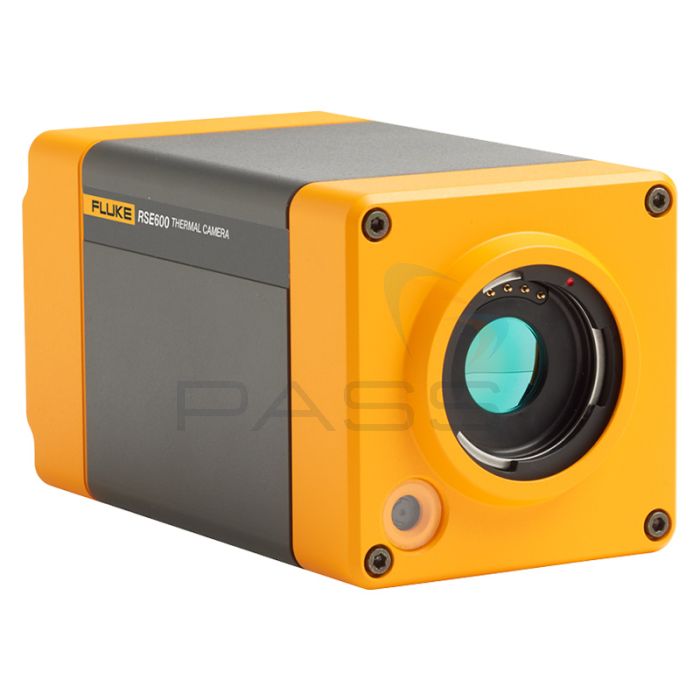

Fluke RSE600/C Mounted Thermal Imaging Camera
Optimised for research, science, and engineering applications, the Fluke RSE600/C Mounted Thermal Imaging Camera is Fluke’s first fully radiometric, mounted infrared imager. MATLAB® and LabVIEW® Software plugins enable the integration of thermal data, images, and videos to support research and development (R&D) analysis. It also includes a 640 x 480px IR resolution, advanced features, and MultiSharp™ Focus which provides automatic focus and superior image quality throughout the field of view.
The Fluke RSE600/C is compatible with optional 2x and 4x telephoto, wide angle, and macro lenses which allow you to see close-up or far-away details (lens dependent). There are two versions of this camera available: one with a 9Hz frame rate and one with a 60Hz frame rate. The Fluke RSE600/C Mounted Thermal Imaging Camera can be used with Fluke’s free SmartView® desktop software to analyse videos remotely frame by frame.
The Fluke RSE600/C Mounted Thermal Imaging Camera is a high-performance, high-resolution, highly adaptable infrared imager ideal for continuously streaming and analysing IR data; it may be used to enhance testing and quality assurance.
How To Videos
How to Connect the Fluke RSE Infrared Cameras to SmartView Software
How to Launch MATLAB Software on the Fluke RSE Thermal Cameras
Key Features
- Fluke’s first fully radiometric, mounted infrared imager
- Optimised for research, science, and engineering applications
- MATLAB® and LabVIEW® Software plugins
- IR resolution: 640 x 480px
- Advanced features
- MultiSharp™ Focus provides automatic focus and superior image quality throughout the field-of-view
- Compatible with optional 2x and 4x telephoto, wide angle, and macro lenses
- Available with a 9Hz or 60Hz frame rate
- SmartView® desktop software for analysing videos remotely frame by frame
- A high-performance, high-resolution, highly adaptable infrared imager
- Ideal for continuously streaming and analysing IR data
- Enhance testing and quality assurance
What’s Included?
- Your Choice of Fluke RSE600/C Mounted Thermal Camera
- Standard IR Lens
- AC Power Supply
- Ethernet Cable
- Antenna
Fluke’s SmartView® Desktop Software and User Manual are available as a free download.
Downloads
Datasheets
Manuals & Guides
Fluke RSE300 & RSE600 Mounted Thermal Imaging Camera - Quick Reference Guide
Fluke RSE300 & RSE600 Mounted Thermal Imaging Camera - Quick Reference Guide Supplement
Fluke RSE300 & RSE600 Mounted Thermal Imaging Camera - User Manual
Fluke RSE300 & RSE600 Mounted Thermal Imaging Camera - Safety Information
Notes & Other
Tech Specs
Fluke RSE Series Mounted Thermal Imaging Camera Technical Specifications
| RSE300 | RSE600 | |
|---|---|---|
| Key Features | ||
| Infrared Resolution | 320x240 (76,800 pixels) | 640x480 (307,200 pixels)** |
| IFOV with standard lens (spatial resolution) | 1.85 mRad | 0.93 mRad |
| Field of view | 34 °H x 25.5 °V | 34 °H x 25.5 °V |
| Minimum focus distance | 15 cm (approx. 6 in) | |
| Camera focus options | Focus is adjusted in SmartView® desktop software | |
| MultiSharp™ Focus | Yes, focused near and far, throughout the field of view | |
| IR-Fusion® technology | Yes, in SmartView® desktop software. Five modes of image blending (AutoBlend™ mode, Picture-in-Picture (PIP), IR/Visible alarm, Full IR, Full visible light) add the context of the visible details to your infrared image | |
| Interfaces for image/data transfer | Supported in camera data ports: GigE Vision | |
| Thermal sensitivity (NETD) | ≤ 0.030 °C at 30 °C target temp (30 mK)* | ≤ 0.040 °C at 30 °C target temp (40 mK)* |
| Filter mode (NETD improvement) | Yes | |
| Level and span | Smooth auto and manual scaling, in SmartView® desktop software | |
| Fast auto toggle between manual and auto modes | Yes, in SmartView® desktop software | |
| Fast auto-rescale in manual mode | Yes, in SmartView® desktop software | |
| Minimum span (in manual mode) | 0.1 °C (0.18 °F), in SmartView® desktop software | |
| Minimum span (in auto mode) | <1.0 °C (<1.8 °F), in SmartView® desktop software | |
| Built-in digital camera (visible light) | 5-megapixel industrial performance | |
| Frame rate | 60 Hz or 9 Hz versions | |
| Digital zoom | Variable up to 16x in SmartView® desktop software | |
| Data Storage and Image Capture | ||
| Memory options | Connect to SmartView® desktop software for storage on the device | |
| Image capture, review, and save mechanism | Capture, save, and analyze images in SmartView® desktop software | |
| Image file formats | Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software is required for non-radiometric (.bmp, .jpg, and .avi) files | |
| Software | SmartView® desktop software—full analysis and reporting software Compatible with MATLAB® and LabVIEW® software |
|
| Export file formats with SmartView® desktop software |
Bitmap (.bmp), GIF, JPEG, PNG, TIFF | |
| Voice annotation | Yes, in SmartView® desktop software | |
| IR PhotoNotes™ | Yes, in SmartView® desktop software | |
| Text annotation | Yes, in SmartView® desktop software | |
| Video recording | Radiometric, in SmartView® desktop software, with exports to standard non-radiometric formats | |
| File formats video | Non-radiometric (MPEG-encoded .AVI) and fully-radiometric (.IS3), in SmartView® software | |
| Remote display viewing | Yes, see the live stream of the camera display on your PC, or TV monitor, via Ethernet cable to SmartView® desktop software | |
| Remote control operation | Yes, through SmartView® desktop software | |
| Temperature Measurement | ||
| Temperature measurement range (not calibrated below -10 °C) | -10 °C to +1200 °C (14 °F to +2192 °F) | |
| Accuracy | ± 2 °C or ± 2 %, whichever is greater | |
| Auto Capture | Yes, in SmartView® desktop software | |
| Reflected background temperature compensation | Yes, in SmartView® desktop software | |
| Transmission correction | Yes, in SmartView® desktop software | |
| Colour palettes | Available through IR-Fusion® technology in desktop software | |
| Standard palettes | 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted | |
| Ultra Contrast™ palettes | 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra | |
| General Specifications | ||
| Colour alarms (temperature alarms) | Yes, in SmartView® desktop software–high temperature, low temperature, and isotherms (within range) | |
| Infrared spectral band | 8 μm to 14 μm (long wave) | |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) | |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) | |
| Relative humidity | 10 % to 95 % non-condensing | |
| Centre-point temperature measurement | Yes, in SmartView® desktop software | |
| Spot temperature | Yes, in SmartView® desktop software–hot and cold spot markers | |
| User-definable spot markers | Unlimited user-definable spot markers, in SmartView® desktop software | |
| Centre box | Expandable-contractible measurement box with MIN-MAX-AVG temp display, in desktop software | |
| Electromagnetic compatibility | EN 61326-1:2013 IEC 61326-1:2013; (Industrial) | |
| US FCC | CFR 47, Part 15 Subpart B Class A | |
| Vibration | IEC 60068-2-26 (sinusoidal vibration): 3G, 11–200 Hz, 3 axis. | |
| Shock | IEC 60068-2-27 (mechanical shock): 50G, 6 ms, 3 axis. | |
| Size (HxWxL) | 8.3 cm x 8.3 cm x 16.5 cm (3.3 in x 3.3 in x 6.5 in) | |
| Weight | 1 kg (2.2 lbs) | |
| Enclosure rating | IEC 60529: IP67 (protected against dust, limited ingress; protection against water spray from all directions) | |
| Recommended calibration cycle | Two years (assumes normal operation and normal aging) | |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish | |
|
||
