Fluke RSE300/C Mounted Thermal Imaging Camera – Choice of Frame Rate
Description

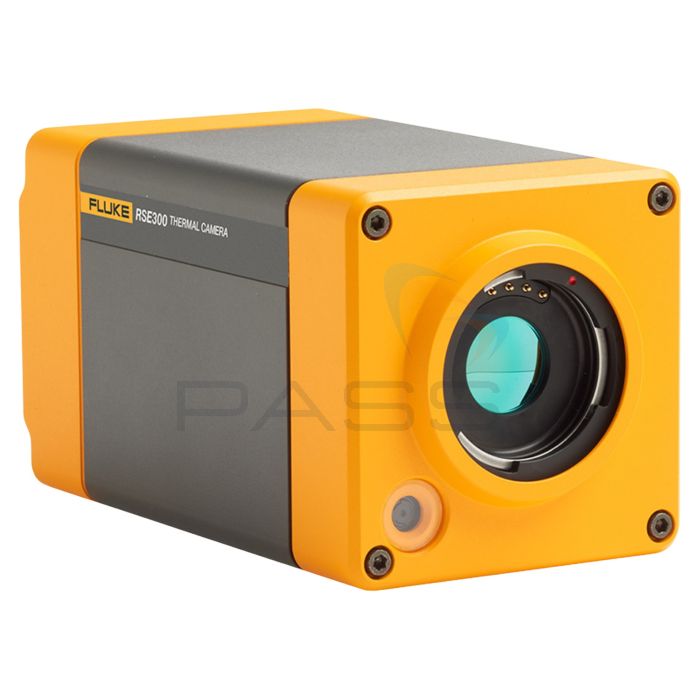

Fluke RSE300/C Mounted Thermal Imaging Camera
Fluke’s first fully radiometric, mounted infrared imager, the Fluke RSE300/C Mounted Thermal Imaging Camera is designed for research, science, and engineering applications. To this end, it features a 320 x 240px IR resolution, advanced features, and software plug-ins for MATLAB® and LabVIEW® which enable the integration of thermal data, images, and videos to support research and development (R&D) analysis. As a result, the Fluke RSE300/C Mounted Thermal Camera is ideal for continuously steaming and analysing infrared data and can be used to enhance testing and quality assurance procedures.
MultiSharp™ Focus delivers automatic focus and superior image quality throughout the field of view. Optional 2x and 4x telephoto, wide angle, and macro lenses allow you to see close-up details or analyse areas from a distance. Furthermore, SmartView® desktop software can be used to analyse videos frame-by-frame remotely. The Fluke RSE300/C Mounted Thermal Camera is available with a 9Hz or 60Hz frame rate.
The Fluke RSE300/C Mounted Thermal Imaging Camera is ideal for research, science, and engineering applications.
How To Videos
How to Connect the Fluke RSE Infrared Cameras to SmartView Software
How to Launch MATLAB Software on the Fluke RSE Thermal Cameras
Key Features
- Fluke’s first fully radiometric, mounted infrared imager
- For research, science, and engineering applications
- IR resolution: 320 x 240px
- Advanced features
- MATLAB® and LabVIEW® software plug-ins
- Ideal for continuously streaming and analysing infrared data
- Enhance testing and quality assurance procedures
- MultiSharp™ Focus: deliver automatic focus and superior image quality throughout the field-of-view
- Optional 2x and 4x telephoto, wide angle, and macro lenses are available
- SmartView® desktop software for analysing videos frame-by-frame remotely
- Available with a 9Hz or 60Hz frame rate
- Ideal for research, science, and engineering applications
What’s Included?
- Your Choice of Fluke RSE300/C Mounted Thermal Imaging Camera
- Standard IR Lens
- AC Power Supply
- Ethernet Cable
- Antenna
Fluke’s SmartView® Desktop Software and User Manual are available as a free download.
Downloads
Datasheets
Manuals & Guides
Fluke RSE300 & RSE600 Mounted Thermal Imaging Camera - Quick Reference Guide Supplement
Fluke RSE300 & RSE600 Mounted Thermal Imaging Camera - User Manual
Fluke RSE300 & RSE600 Mounted Thermal Imaging Camera - Safety Information
Fluke RSE300 & RSE600 Mounted Thermal Imaging Camera - Quick Reference Guide
Notes & Other
Tech Specs
Fluke RSE Series Mounted Thermal Imaging Camera Technical Specifications
| RSE300 | RSE600 | |
|---|---|---|
| Key Features | ||
| Infrared Resolution | 320x240 (76,800 pixels) | 640x480 (307,200 pixels)** |
| IFOV with standard lens (spatial resolution) | 1.85 mRad | 0.93 mRad |
| Field of view | 34 °H x 25.5 °V | 34 °H x 25.5 °V |
| Minimum focus distance | 15 cm (approx. 6 in) | |
| Camera focus options | Focus is adjusted in SmartView® desktop software | |
| MultiSharp™ Focus | Yes, focused near and far, throughout the field of view | |
| IR-Fusion® technology | Yes, in SmartView® desktop software. Five modes of image blending (AutoBlend™ mode, Picture-in-Picture (PIP), IR/Visible alarm, Full IR, Full visible light) add the context of the visible details to your infrared image | |
| Interfaces for image/data transfer | Supported in camera data ports: GigE Vision | |
| Thermal sensitivity (NETD) | ≤ 0.030 °C at 30 °C target temp (30 mK)* | ≤ 0.040 °C at 30 °C target temp (40 mK)* |
| Filter mode (NETD improvement) | Yes | |
| Level and span | Smooth auto and manual scaling, in SmartView® desktop software | |
| Fast auto toggle between manual and auto modes | Yes, in SmartView® desktop software | |
| Fast auto-rescale in manual mode | Yes, in SmartView® desktop software | |
| Minimum span (in manual mode) | 0.1 °C (0.18 °F), in SmartView® desktop software | |
| Minimum span (in auto mode) | <1.0 °C (<1.8 °F), in SmartView® desktop software | |
| Built-in digital camera (visible light) | 5-megapixel industrial performance | |
| Frame rate | 60 Hz or 9 Hz versions | |
| Digital zoom | Variable up to 16x in SmartView® desktop software | |
| Data Storage and Image Capture | ||
| Memory options | Connect to SmartView® desktop software for storage on the device | |
| Image capture, review, and save mechanism | Capture, save, and analyze images in SmartView® desktop software | |
| Image file formats | Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software is required for non-radiometric (.bmp, .jpg, and .avi) files | |
| Software | SmartView® desktop software—full analysis and reporting software Compatible with MATLAB® and LabVIEW® software |
|
| Export file formats with SmartView® desktop software |
Bitmap (.bmp), GIF, JPEG, PNG, TIFF | |
| Voice annotation | Yes, in SmartView® desktop software | |
| IR PhotoNotes™ | Yes, in SmartView® desktop software | |
| Text annotation | Yes, in SmartView® desktop software | |
| Video recording | Radiometric, in SmartView® desktop software, with exports to standard non-radiometric formats | |
| File formats video | Non-radiometric (MPEG-encoded .AVI) and fully-radiometric (.IS3), in SmartView® software | |
| Remote display viewing | Yes, see the live stream of the camera display on your PC, or TV monitor, via Ethernet cable to SmartView® desktop software | |
| Remote control operation | Yes, through SmartView® desktop software | |
| Temperature Measurement | ||
| Temperature measurement range (not calibrated below -10 °C) | -10 °C to +1200 °C (14 °F to +2192 °F) | |
| Accuracy | ± 2 °C or ± 2 %, whichever is greater | |
| Auto Capture | Yes, in SmartView® desktop software | |
| Reflected background temperature compensation | Yes, in SmartView® desktop software | |
| Transmission correction | Yes, in SmartView® desktop software | |
| Colour palettes | Available through IR-Fusion® technology in desktop software | |
| Standard palettes | 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted | |
| Ultra Contrast™ palettes | 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra | |
| General Specifications | ||
| Colour alarms (temperature alarms) | Yes, in SmartView® desktop software–high temperature, low temperature, and isotherms (within range) | |
| Infrared spectral band | 8 μm to 14 μm (long wave) | |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) | |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) | |
| Relative humidity | 10 % to 95 % non-condensing | |
| Centre-point temperature measurement | Yes, in SmartView® desktop software | |
| Spot temperature | Yes, in SmartView® desktop software–hot and cold spot markers | |
| User-definable spot markers | Unlimited user-definable spot markers, in SmartView® desktop software | |
| Centre box | Expandable-contractible measurement box with MIN-MAX-AVG temp display, in desktop software | |
| Electromagnetic compatibility | EN 61326-1:2013 IEC 61326-1:2013; (Industrial) | |
| US FCC | CFR 47, Part 15 Subpart B Class A | |
| Vibration | IEC 60068-2-26 (sinusoidal vibration): 3G, 11–200 Hz, 3 axis. | |
| Shock | IEC 60068-2-27 (mechanical shock): 50G, 6 ms, 3 axis. | |
| Size (HxWxL) | 8.3 cm x 8.3 cm x 16.5 cm (3.3 in x 3.3 in x 6.5 in) | |
| Weight | 1 kg (2.2 lbs) | |
| Enclosure rating | IEC 60529: IP67 (protected against dust, limited ingress; protection against water spray from all directions) | |
| Recommended calibration cycle | Two years (assumes normal operation and normal aging) | |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish | |
|
||
