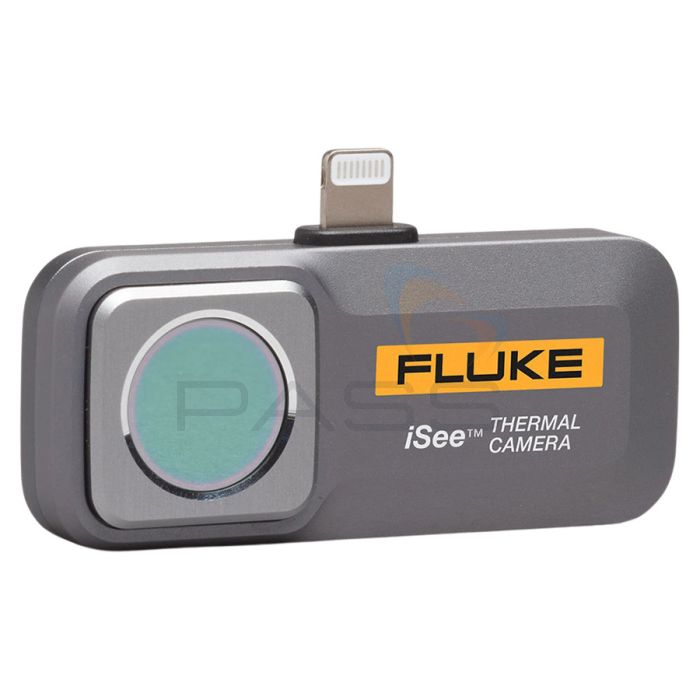

Fluke iSee Mobile Thermal Camera - TC01A/TC01B
- 256 x 192 pixels, detailed image quality
- 9 Hz (Android) or 25 Hz frame rate
- Smooth video without lag
- Android or IOS
SKU
TC01A/TC01B
Ready for immediate use in just seconds, the Fluke iSee Mobile Thermal Camera makes inspections quick and straightforward. Weighing only 22 grams, this device is compatible with both iOS and Android systems. Its extensive temperature measurement range reaches up to 550°C (1022°F), making it suitable for numerous applications.
Featuring a resolution of 256 x 192 pixels, the iSee camera provides smooth video recording at frame rates of 25Hz (IOS & Android) and 9Hz (Android). The Fluke iSee App facilitates detailed temperature analysis through spot, line, and area measurements, ensuring accurate diagnostics. This app is essential for operation and can be downloaded from the Apple Store and Google Play.
Key Features
- 256 x 192 pixels, detailed image quality
- -10 to 550 °C (14 to 1022 °F) range, covering wide applications
- 50 mk (0.05 °C) thermal sensitivity for fine screening
- ± 2% or ± 2 °C (3.6 °F) accuracy, reliable and stable
- 9 Hz (Android) or 25 Hz frame rate
- Smooth video without lag
- Android or IOS
- More than 10 standard and custom colour palettes
- Real-time high and low-temperature capture, without missing any details
- Adjustable emissivity to cope with different materials
- Comprehensive temperature analysis for spot, line and area, professional-grade thermal imaging software
- Real-time temperature alarm, timely response, and handling
- Unattended automatic time-lapse photography
- Infrared and visible light image comparison for locating, comparing, and archiving
- Real-time image and video sharing and management, fast and efficient communication
- It is easy to add image annotations, and communication without barriers
- Compact design as light as 22 g (0.78 oz), perfect for your mobile phone size
- High-quality aluminium material for the airway, with uniquely treated and laser-etched surface
- 1-metre drop test, IP54 ingress protection
- Optimised application interfaces and menus
What's Included?
- Choice of Thermal Camera
- Packaging box
- User manual
Product Range
- Fluke 5589280 TC01B iSee Mobile Thermal Camera, 25Hz, IOS
- Fluke 5518338 TC01A iSee Mobile Thermal Camera, 9Hz, Android
- Fluke 6016119 TC01A iSee Mobile Thermal Camera, 25Hz, Android
IOS Compatibility
- iPhone 14 Pro Max
- iPhone 14 Pro
- iPhone 14 Plus
- iPhone 14
- iPhone SE (3rd generation)
- iPhone 13 Pro Max
- iPhone 13 Pro
- iPhone 13
- iPhone 13 mini
- iPhone 12 Pro Max
- iPhone 12 Pro
- iPhone 12
- iPhone 12 mini
- iPhone SE (2nd generation)
- iPhone 11 Pro Max
- iPhone 11 Pro
- iPhone 11
- iPhone XS Max
- iPhone XS
- iPhone XR
- iPhone X
- iPhone 8 Plus
- iPhone 8
- iPad (9th generation)
- iPad (8th generation)
- iPad Pro 10.5-inch
- iPad Pro 12.9-inch (2nd generation)
- iPad Pro 9.7-inch
- iPad Pro 12.9-inch (1st generation)
- iPad Air (3rd generation)
- iPad mini (5th generation)
- iPad mini 4
- iPad (7th generation)
- iPad (6th generation)
- iPad (5th generation)
Videos
Introduction
Fluke iSee™ Mobile Thermal Imager
Portable. Powerful. Precise.
Portable. Powerful. Precise. | Fluke iSee™ Mobile Thermal Camera
Technical Information
Specification
| TC01A | TC01B | |
|---|---|---|
| Performance | ||
| IR Resolution | 256 x 192 | |
| Pixel Size | 12 μm | |
| Temperature Range | -10 °C to 550 °C/14 °F to 1022 °F | -20 °C to 550 °C/-4 °F to 1022 °F |
| Temperature Accuracy | ± 2 % of rdg or ± 2 °C/3.6 °F, whichever is greater (@ 23 °C ± 5°C/73.4 °F ± 9 °F ambient temperature) |
|
| Temperature Measurement Distance | 0.25 m to 5 m > (* -20 ℃/-4 °F to 10 ℃/50 °F, only for 0.25 m to 3 m) |
|
| Frame Rate | 9 Hz or 25 Hz models | 25 Hz |
| Warm-up Time | 1 minute | |
| Focal Length | Fixed focal length: 3.2 mm | |
| Shutter Mode | Internal | |
| Thermal Sensitivity (NETD) | 50 mK | |
| Spectral Range | 8 to 14 μm | |
| Field of View (H x V) | 56° x 42° | |
| Spatial Resolution | 3.81 mrad | |
| General | ||
| USB Interface | Type-C | Lightning |
| Operating Temperature | 0 ℃ to 40 ℃/32 °F to 104 °F | |
| Storage Temperature | -30 ℃ to 60 ℃/-22 °F to 140 °F | |
| Operating Humidity | 10 % to 90 % RH, non-condensing | |
| Power Consumption | 350 mW (Typical) | 200 mW (Typical) |
| Drop Test | 1 m/3.3 ft | |
| Ingress Protection | IEC 60529: IP54 (with the protective cover for Type C) |
IEC 60529: IP56 |
| Operating Altitude | 2 000 m/6 562 ft | |
| Storage Altitude | 12 000 m/39 370 ft | |
| Dimensions (L x W x H) | 60 x 33.5 x 11.2 mm/2.36 x 1.32 x 0.44 in | |
| EMC Environment | International IEC 61326-1: Electromagnetic environment for portable equipments CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or uses conductively coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. Korea (KCC) Class A Equipment (Industrial Broadcasting and Communication Equipment) Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes. United States (FCC) 47 CFR 15 Subpart B. This product is considered an exempt device per clause 15.103. |
|
| Fluke Warranty | 2 years | |
Document Downloads
Fluke iSee™ Mobile Thermal Camera - TC01A/TC01B Datasheet
Fluke iSee™ Mobile Thermal Camera - TC01A/TC01B Instruction Guide
Fluke iSee™ Mobile Thermal Camera - TC01A User Manual
Fluke iSee™ Mobile Thermal Camera - TC01B User Manual
