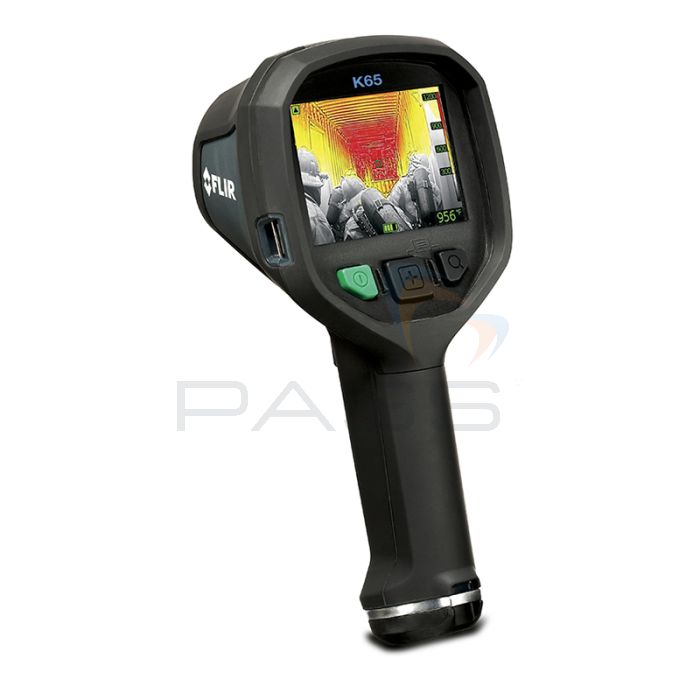

FLIR K65 National Fire Protection Association Approved Thermal Camera

FLIR's K65 is an NFPA-approved thermal camera for use by firefighters.

New 2024 Improvements

Teledyne FLIR has updated the Kxx-Series Thermal Cameras to improve the precision and speed of critical decision-making. First responders will benefit from:

Improved image clarity and sharpness
Greater contrast in low and high-contrast areas
More astute room and depth perception
Better image performance

These enhanced features work together to provide more efficient navigation and orientation in low and non-visibility areas and prevent user disorientation As a result firefighters can deliver more efficient and safe search and rescue operations, as well as faster fire location.

FLIR K65 Thermal Camera Overview

Rugged, robust and reliable with drop-proofing to a height of 2m onto concrete, high heat resistance and water damage protection, the FLIR K65 is an excellent tool for taking with you into even the most demanding conditons.

With a FLIR K65 as part of your kit, you'll be able to work faster, smarter and safer. This camera allows you to see through the dark and smoke, helps to pinpoint the body heat of trapped people and can even be used to instantly determine the hottest part of an area to help you plan your strategies much more efficiently.

FLIR FSX

Firefighters need to have clarity when they're working; that's why all FLIR K65 units come with FLIR FSX as standard.

This unique mode enhances the detail level of thermal images significantly, helping firefighters to spot objects and plan their movements much more carefully.

FLIR K65 Firefighting Thermal Camera Key Features

Advanced, NFPA-approved thermal camera for use by professional firefighters
See through smoke, detect body heat, identify thermal hotspots and make critical decisions in half the time
Easy to use, even when wearing gloves - controlled by three simple large buttons designed for gloved users
320 x 240 pixel thermal resolution for excellent quality thermal images
FLIR FSX enabled - enhances thermal images using real-time digital processing to show structural, edges and other details in exceptional clarity
Rugged, reliable design - withstands drops to 2m onto concrete, IP67 rated against water damage and fully operational up to 260°C for up to five minutes
Video and image capturing - store up to 200 images or video clips with maximum length of 5 minutes each
2x digital zoom
High thermal sensitivity for spotting minor temperature differences

What's Included?

FLIR K65 Thermal Camera
2 x Rechargeable Batteries
Battery Charger
Hard Transport Case
Power Supply
Printed Documentation
USB Cable
User Documentation CD-ROM

Tech Specs

Teledyne FLIR Kxx-Series Thermal Camera Technical Specifications

	K33	K45	K53	K55	K65
Imaging and Optical Data
IR resolution	240 × 180 (43,200 pixels)	240 × 180 (43,200 pixels)	320 × 240 (76,800 pixels)
Thermal sensitivity/NETD	<40 mK @ 30°C (86°F)		<30 mK @ 30°C (86°F)
Field of view (FOV)	51° × 38°
Image frequency	60 Hz
Detector type	Focal plane array (FPA), uncooled microbolometer
Spectral range	7.5 - 13.5 µm
Pitch	25 µm
Image Presentation
Display	4-inch LCD, 320 × 240 pixels, backlit
Auto range	Yes, selectable on/off using FLIR K-series camera configurator
Contrast optimization	Digital image enhancement using FSX
Image modes	Basic mode	Basic Black and white Fire Search and rescue Heat detection	Basic mode	Basic Black and white Fire Search and rescue Heat detection	TI Basic NFPA Black and white TI Basic PLUS NFPA Search and rescue Heat detection
Measurement
Object temperature range	-20°C to 150°C (-4°F to 302°F), 0°C to 650°C (32°F to 1202°F)
Accuracy	±4°C (±7.2°F) or ±4% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F)
Video and Images
Storage media	-	Internal flash memory
Non-radiometric IR video recording	-	-	MPEG-4 to internal flash memory
Storage capacity	-	Up to 200 images	200 files in total, with a maximum duration of 5 minutes each. The total number of files is co-dependent on the number of saved images.
Non-radiometric IR video streaming	Uncompressed colorized video using USB
USB	USB Mini-B
Data Communication Interfaces
Interfaces	Update from PC devices Data transfer to and from PC
General
Battery	3.6V / 4.4Ah Li-ion, approximately 4-hour operating time
Charging system	2-bay charger Optional In-truck charger
Charging time	2 h to 85% capacity, charging status indicated by LEDs
Start-up time	<17 s. (IR image, no GUI)
Camera weight, including battery	1.1 ±0.05 kg (2.4 ±0.1 lb)
Camera size (L × W × H)	120 mm × 125 mm × 280 mm (4.7 in × 4.9 in × 11 in)
Tripod mounting	UNC ¼"-20 (adapter needed)
Operating temperature range	-20°C to 60°C (-4°F to 140°F) 150°C (302°F): 15 min. 260°C (500°F): 5 min.
Storage temperature range	-40°C to 85°C (-40°F to 185°F)
Compliance	-				NFPA 1801-2021 Ex-certified according to ANSI/ UL 121201-2017 and meets Class I Division 2 Groups C and D, Class II Division 2 Groups F and G, Temperature Code T4/T135°C
Magnetic fields	EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment)
Encapsulation	IP 67 (IEC 60529)
Shock and vibration	25 g (IEC 60068-2-27), 2 g (IEC 60068-2-6)
Drop	2 m (6.6 ft.) on concrete floor (IEC 60068-2-31)
