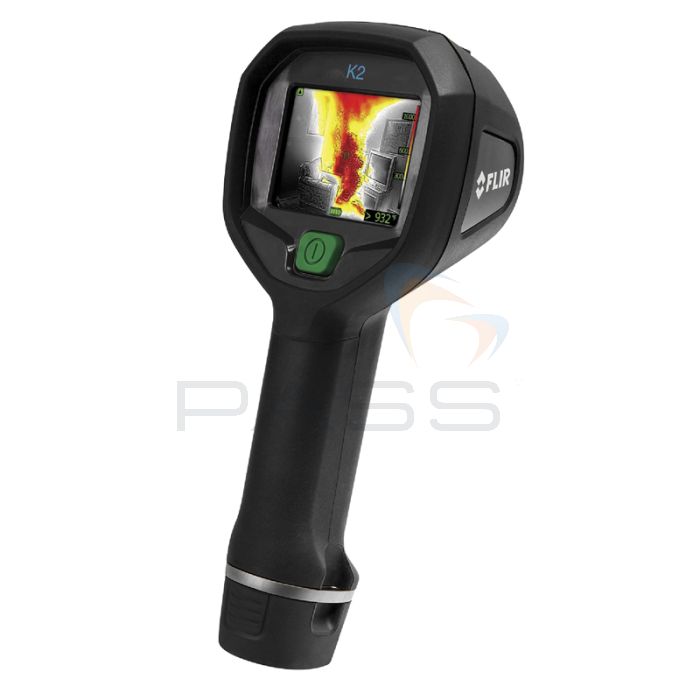

FLIR K2 Firefighting Thermal Camera
- Rugged and reliable thermal camera for firefighting professionals
- 160 x 120 pixel thermal resolution
- Work faster, smarter and make decisions quicker
SKU
73701-0101
MPN
73701-0101
Seeing through smoke, detecting body heat and even automatically detecting the hottest part of an area are just a few of the functions of FLIR's K2 thermal camera, please see the video below for a quick introduction to this camera.
Designed purely for use by firefighters, this camera uses FLIR's high-quality thermal imaging to aid firefighters with making decisions, detecting trapped individuals and much more, allowing you to act quicker and safer in difficult environments.
Rugged and reliable with 2m dropprofiing onto concrete plus IP67 protection against water damage, the K2 is comfortable to operate even when wearing heavy gloves (with a single button for easy access) and the camera's pistol-shaped grip is designed to fit snugly in the hand at all times.
FLIR K2 Firefighting Thermal Camera Key Features
- Made for firefighting professionals - see through thick smoke, assess situations with confidence and make decisions faster
- Ideal for detecting human body heat and for detecting areas to attack first
- Affordable price point for use by individual firefighters in the field
- Rugged and reliable with drop-proofing to 2m onto concrete, IP67 water protection and wide operating temperature range
- Infrared thermal resolution of 160 x 120 pixels
- Image quality enhanced via FLIR MSX, a unique mode which adds visible light (digital) image detail to thermal images
- Fast start up times (30 seconds from idle, under 10 seconds from sleep mode)
- 3 inch backlit LCD screen with resolution of 320 x 240 pixels
- Use FLIR's Tools software to switch the image mode - choice of TI basic firefighting, black and white firefighting, fire mode, search and rescue mode and heat detection mode
- Temperature measurements range from -20 to +150°C and 0 to +500°C
- Automatic heat detection - the hottest 20% of the scene is automatically coloured
- USB interface for connection to PC
- 4 hour rechargeable battery life (can be swapped out in the field)
- Designed to meet NFPA 1801 specifications
What's Included?
- FLIR K2 Firefighting Thermal Camera
- 2 x Rechargeable Batteries
- Battery Charger
- Lanyard Strap
- Power Supply
- Printed Documentation
- USB Cable
- User Documentation CD-ROM
£1,399.00
£1,678.80 inc vat
Stock Due:
Typically 1-2 Weeks
Technical Information
Specification
FLIR K2 Technical Specifications
| Imaging and Optical Data | |
|---|---|
| Field of View (FOV) / Focus | 47° x 31.5° |
| Image Frequency | 9Hz |
| IR Resolution | 160 x 120 pixels |
| Focal Plane Array (FPA) / Spectral Range | Uncooled microbolometer / 7.5 to 13μm |
| Startup Time | <30 seconds (IR-image, no GUI) |
| Startup Time from Sleep Mode | <10 seconds |
| Thermal Sensitivity/NETD | <100mK @ +30°C (+86°F) |
| F-Number | 1,1 |
| Visual Camera | |
| Built-In Digital Camera | 640 x 480 pixels |
| Digital Camera, FOV | 73 x 61°, adapts to the IR lens |
| Sensitivity | Minimum 10lux |
| image Presentation | |
| Display | 3 inches, 320 x 240 pixels, backlit |
| Image Modes - Switchable using FLIR Tools Software | TI Basic fire-fighting mode Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode (default) |
| Auto-Range | Auto, non-selectable |
| Measurement | |
| Object Temperature Range | –20°C to +150°C (–4°F to +302°F) 0°C to +500°C (+32°F to +932°F) |
| Accuracy | ±4°C (±7.2°F) or ±4% of reading, for ambient temperature 10°C to 35°C (+50°F to 95°F) |
| Measurement Analysis | |
| Spotmeter | 1 |
| Isotherm | Yes |
| Automatic Heat Detection | Heat detection mode (the hottest 20% of the scene is automatically coloured) |
| Data Communication Interfaces | |
| Interfaces | Update from PC and Mac |
| USB | USB micro-B |
| Power System | |
| Battery | Li-Ion, 4 hours operating time |
| Charging System | 2-bay charger, truck charger available |
| Charging Time | 2.5h to 90% capacity, charging status indicated by LEDs |
| Charging Temperature | 0 to 45°C (32 to 113°F) |
| Environmental Data | |
| Designed to meet NFPA 1801 Specification | Vibration, impact acceleration resistance, corrosion, viewing surface abrasion, heat resistance, heat and flame, product label durability |
| Operating Temperature Range | –20°C to +55°C (–4°F to +131°F) +85°C (+185°F): 15 minutes +150°C (+302°F): 10 minutes +260°C (+500°F): 3 minutes |
| Storage Temperature Range | –40°C to +70°C (–40°F to +158°F) |
| Encapsulation | IP 67 (IEC 60529) |
| Drop | 2m (6.6ft) on concrete floor (IEC 60068-2-31) |
| Physical Data | |
| Camera Weight, Including Battery | 0.7kg (1.54lbs) |
| Camera Sie (L x W x H) | 250 x 105 x 90mm (9.8 x 4.1 x 3.5 inches) |
| Tripod Mounting | UNC ¼" - 20 |
