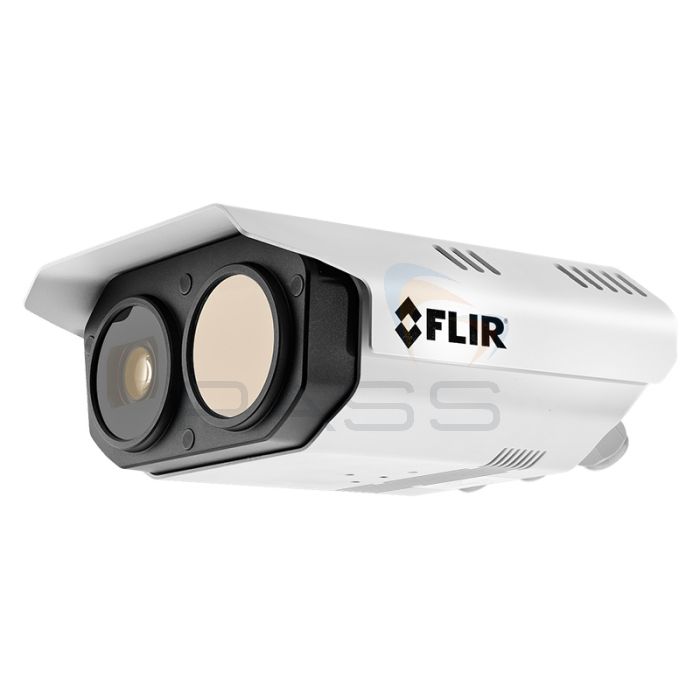

FLIR FH-Series R Multispectral Fixed Cameras
Description

The FLIR FH-Series R are ruggedized, multispectral fixed cameras that integrate industry-leading thermal imaging with 4K visible imaging to provide rapid visual verification of hot spots in early fire detection applications. When a hot spot or temperature change is detected, the contactless temperature measurement is sent to the operator through a connected Video Management System (VMS) for instantaneous assessment and deployment of response tactics.

Custom scheduling provides security personnel the flexibility to enable and disable alarms depending on business hours and seasonality. Combining the power of thermal hot-spot detection with intelligent vehicle detection, false alarms from hot exhaust pipes can be dramatically reduced.

RAPID DETECTION AND VISUAL VERIFICATION

Integrates a high-resolution thermal and visible sensor for hot-spot detection and visual verification from a single device.

INTELLIGENT ALARMS

Detect hot spots and intruders without false alarms with onboard video analytics; make detections based on time of day, business hours, and seasonality using the built-in scheduling tool.

EASY INTEGRATION

Deploy the FH-Series R as part of a Teledyne FLIR end-to-end solution or in combination with preferred third-party solutions.

Key Features

  • Detect hot spots instantly
  • Up to 640 x 512 thermal resolution and <35 mK thermal sensitivity
  • See the smoke and immediately verify threats with the 4K visible camera
  • Combines a two-camera installation in one physical connection for a cost-efficient solution
  • 10-year thermal sensor warranty
  • Detect threats from intruders as well as hot spots with on-board video analytics
  • Eliminate false temperature alarms from hot exhaust pipes with 'vehicle exclusion mode'
  • On-board scheduling tool
  • Strengthen end-to-end systems with onboard NEXUS® technology
  • Tightly integrated with FLIR United VMS and major third-party VMS
  • ONVIF® Conformant S/G/T profiles
  • Receive radiometric alarms through compatible VMS platforms
Downloads

Datasheets

FLIR FH-Series R Multispectral Fixed Thermal Camera Datasheet Datasheets

Manuals & Guides

FLIR FH-Series R Multispectral Fixed Thermal Camera User Manual Manuals & Guides FLIR FH-Series R Multispectral Fixed Thermal Camera Quick Start Guide Manuals & Guides
Tech Specs
SPECIFICATIONS
Thermal Sensor & Optics
Array Format (NTSC) 640 x 512, 320 x 256
Detector Type Long-life, uncooled VOx microbolometer
Pixel Pitch 17 µm
Thermal Frame Rate NTSC: 30 Hz
PAL: 25 Hz / 8.3 Hz
Optical Characteristics
Model FOV Focal Length F#
369 69° x 56° 9 mm F/1.4
324 24° x 18° 13 mm F/1.0
313 13° x 10° 25 mm F/1.1
669 69° x 56° 9 mm F/1.4
644 44° x36° 13 mm F/1.0
625 25° x18° 25 mm F/1.1
617 17° x14° 35 mm F/1.1
Spectral Range 7.5 µm to 13.5 µm
Sensitivity (NEdT) <35 mK @ 25°C (77°F) F# 1.0
Visible Light Camera
Sensor Type 4K 2160p (3840 x 2160)
Optical Characteristics
Model Default FOV Focal Length F#
369 98° x 55° 3.6-10 mm 1.5 - 2.8
324 34° x19° 9-22 mm 1.4 - 1.7
313 18° x10° 13-55 mm 1.6 - 2.2
669 98° x55° 3.6-10 mm 1.5 - 2.8
644 63° x35° 3.6-10 mm 1.5 - 2.8
625 36° x20° 9-22 mm 1.4 - 1.7
617 24° x14° 13-55 mm 1.6 - 2.2
Temperature Measurement
Measurement Accuracy Target below 100°C (212°F): ± 5°C (±9°F) accuracy
Target below 150°C (302°F): ± 5% accuracy
Target above 150°C (302°F): ± 15% accuracy
Measured at 25°C (77°F) ambient temperature. Error may be greater at extreme temperatures
Object Temperature Range High Gain Mode: 0°C to 160°C (32°F to 320°F)
Low Gain Mode: 0°C to 600°C (32°F to 1112°F)
Video analytics only functional in High Gain Mode
Video
Video Type IP and analog video
Sensitivity Color: 0.25 Lux (@ (f1.6 AGC On, 30 fps))
B/W: 0.10 Lux (@ (f1.6 AGC On, 30 fps))
Visible Frame Rate 30 Hz
Video Compression Two independent channels of H.264/H.265 or M-JPEG (except 4K) for visible and thermal
Streaming Resolution Primary stream:
Thermal: VGA (640 x 512), QVGA (320 x 256)
Visible: 4K (3840 x 2160), 1080p (1920 x 1080), 720p (1280 x 720) & VGA (640 x 480)
Secondary stream:
Thermal: VGA (640 x 512), QVGA (320 x 256)
Visible: 1080p (1920 x 1080), 720p (1280 x 720) & VGA (640 x 480)
Thermal Image Settings Auto AGC, Dynamic Detail Enhancement (DDE), Brightness, Contrast
Thermal AGC Region of Interest (ROI) Default, Presets, and User definable to ensure optimal image quality on subjects of interest
Image Uniformity Optimization Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers
System Integration
Ethernet 100/1000 Mbps
Network APIs NEXUS® SDK
NEXUS® CGI
ONVIF Profile S, G, T
Digital I/O Input: two dry alarm contacts
Output: two relay contacts 1A max at 24 VAC/30 VDC
Configurable between normally open and normally closed
Network
Supported Protocols IPV4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X
General
Input Voltage 12 VDC (±10%)
24 VDC (±10%)
24 VAC (±10%)
802.3bt
Power Consumption Nominal: 15 W
Heaters enabled, 12 VDC: 48 W
Heaters enabled, all other inputs: 70 W
Environmental
IP Rating (Dust & Water Ingress) IP66, IP67
Operating Temperature Range -40°C to 70°C (-40°F to 158°F)
Storage Temperature Range -55°C to 85°C (-67°F to 185°F)
Corrosion MIL-STD 810G, 1000 hr salt spray
Humidity 0-95% relative
Shock IEC 60068-2-27
Vibe IEC 60068-2-64
Vandalism IK10 except for windows
Surge Immunity on AC Power Lines EN 50130- 4
Surge Immunity on Signal Lines EN 50130- 4
Surge/Lightning Protection TVS 6000 V lightning protection, surge protection, voltage transient protection
Compliance & Certifications
FCC Part 15 (Subpart B, Class A)
UL Listed
CE Marked
RoHS
IP66
WEEE (Waste Electrical and Electronic Equipment Directive)
IEC 62368
ONVIF Profile S, G, T
Video Analytics
Region entrance/Intrusion detection
Tampering
Loitering
CNN classifier
Cyber Security
IEEE 802.1x
TLS/HTTPS
User authentication
Access control via firewall
User credentials with policy enforcement
Digest authentication
