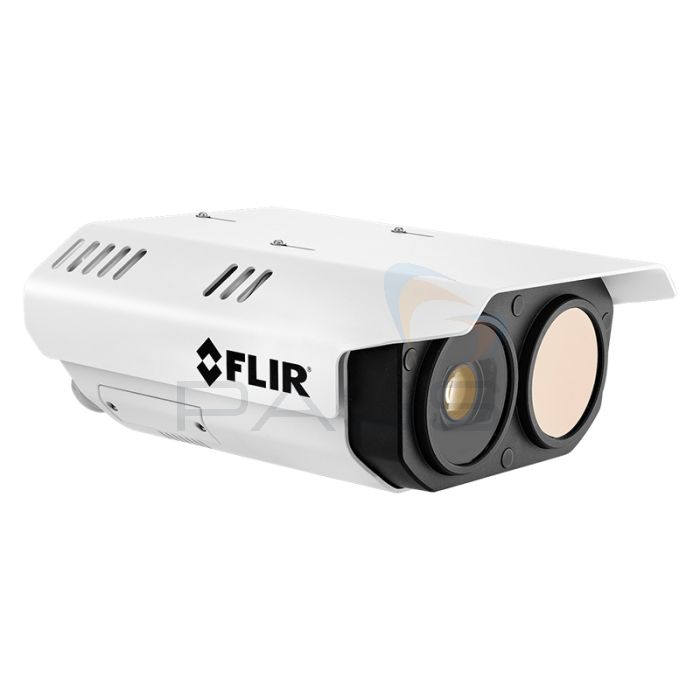

FLIR FH-Series ID Multispectral Fixed Cameras
Description

The FLIR FH-Series ID are ruggedized, multispectral fixed cameras that integrate industry-leading thermal imaging with 4K visible imaging to provide reliable intruder-detection capabilities for perimeter security. Built-in convolutional neural network (CNN) analytics accurately detect and classify human and vehicle threats moving at high or low speeds, minimizing false alarms and daily operations costs.

Custom scheduling enables security operators to set intrusion analytics to run on visible streams during the day and on thermal streams throughout the night, establishing optimized coverage for any lighting condition.

ALWAYS READY, ALWAYS WORKING

Integrates 640 x 512 resolution thermal imaging and a 4K visible sensor into a single camera for optimal performance in any environment or lighting condition.

HIGH-ACCURACY INTRUSION DETECTION

Minimize false alarms and the cost of daily operations by using on-camera video analytics that run on both the visible and thermal spectrum for robust intrusion detection of humans and vehicles.

EASY INTEGRATION

Deploy this camera as part of a Teledyne FLIR end-to-end solution or in combination with preferred third-party solutions.

Key Features

  • Gain 24/7 situational awareness in the most challenging perimeters
  • 640 x 512 thermal imager and market-leading <30 mK thermal sensitivity
  • Assess threats in real-time and see forensic detail with the 4K visible camera
  • Combines a two-camera installation in one physical connection for a cost-efficient solution
  • 10-year thermal sensor warranty
  • Minimize false alarms and the cost of daily operations
  • On-board scheduling tool
  • Detect intruders in challenging poses
  • ONVIF® Conformant to S/G/T profiles
  • Tightly integrated with FLIR United VMS and major third-party VMS
  • Strengthen end-to-end systems with onboard NEXUS® technology
  • Connect to FLIR edge devices
Downloads

Datasheets

FLIR FH-Series ID Multispectral Fixed Thermal Camera Datasheet Datasheets

Manuals & Guides

FLIR FH-Series ID Multispectral Fixed Thermal Camera User Manual Manuals & Guides FLIR FH-Series ID Multispectral Fixed Thermal Camera Quick Start Guide Manuals & Guides
Tech Specs
SPECIFICATIONS
Thermal Sensor & Optics
Array Format (NTSC) 640 x 512
Detector Type Long-life, uncooled VOx microbolometer
Pixel Pitch 17 µm
Thermal Frame Rate NTSC: 30 Hz
PAL: 25 Hz / 8.3 Hz
Optical Characteristics
Model FOV Focal Length F#
669 69° x 56° 9 mm F/1.4
644 44° x 36° 13 mm F/1.0
625 25° x 18° 25 mm F/1.1
617 17° x 14° 35 mm F/1.1
612 12° x 10° 50 mm F/1.2
610 10° x 8.2° 60 mm F/1.2
608 8.6° x 6.6° 75 mm F/1.1
Spectral Range 7.5 µm to 13.5 µm
Sensitivity (NEdT) <30 mK @ 25°C (77°F) F# 1.0
Visible Light Camera
Sensor Type 4K 2160p (3840 x 2160)
Optical Characteristics
Model Default FOV Focal Length F#
669 98° x 55° 3.6-10 mm 1.5 - 2.8
644 63° x 35° 3.6-10 mm 1.5 - 2.8
625 36° x 20° 9-22 mm 1.4 - 1.7
617 24° x 14° 13-55 mm 1.6 - 2.2
612 17° x 10° 13-55 mm 1.6 - 2.2
610 14° x 8° 13-55 mm 1.6 - 2.2
608 11° x 6° 13-55 mm 1.6 - 2.2
Video
Video Type IP and analog video
Sensitivity Color: 0.25 Lux (@ (f1.6 AGC On, 30 fps))
B/W: 0.10 Lux (@ (f1.6 AGC On, 30 fps))
Visible Frame Rate 30 Hz
Video Compression Two independent channels of H.264/H.265 or M-JPEG (except 4K) for visible and thermal
Streaming Resolution Primary stream:
Thermal: VGA (640 x 512), QVGA (320 x 256)
Visible: 4K (3840 x 2160), 1080p (1920 x 1080), 720p (1280 x 720) & VGA (640 x 480)
Secondary stream:
Thermal: VGA (640 x 512), QVGA (320 x 256)
Visible: 1080p (1920 x 1080), 720p (1280 x 720) & VGA (640 x 480)
Thermal Image Settings Auto AGC, Dynamic Detail Enhancement (DDE), Brightness, Contrast
Thermal AGC Region of Interest (ROI) Default, Presets, and User definable to ensure optimal image quality on subjects of interest
Image Uniformity Optimization Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers
System Integration
Ethernet 100/1000 Mbps
Network APIs NEXUS® SDK
NEXUS® CGI
ONVIF Profile S, G, T
Digital I/O Input: two dry alarm contacts
Output: two relay contacts 1A max at 24 VAC/30 VDC
Configurable between normally open and normally closed
Network
Supported Protocols IPV4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X
General
Input Voltage 12 VDC (±10%)
24 VDC (±10%)
24 VAC (±10%)
802.3bt
Power Consumption Nominal: 15 W
Heaters enabled, 12 VDC: 48 W
Heaters enabled, all other inputs: 70 W
Environmental
IP Rating (Dust & Water Ingress) IP66, IP67
Operating Temperature Range -40°C to 70°C (-40°F to 158°F)
Storage Temperature Range -55°C to 85°C (-67°F to 185°F)
Corrosion MIL-STD 810G, 1000 hr salt spray
Humidity 0-95% relative
Shock IEC 60068-2-27
Vibe IEC 60068-2-64
Vandalism IK10 except for windows
Surge Immunity on AC Power Lines EN 50130- 4
Surge Immunity on Signal Lines EN 50130- 4
Surge/Lightning Protection TVS 6000 V lightning protection, surge protection, voltage transient protection
Compliance & Certifications
FCC Part 15 (Subpart B, Class A)
UL Listed
CE Marked
RoHS
IP66
WEEE (Waste Electrical and Electronic Equipment Directive)
IEC 62368
ONVIF Profile S, G, T
Video Analytics
Region entrance/Intrusion detection
Tampering
Loitering
CNN classifier
Cyber Security
IEEE 802.1x
TLS/HTTPS
User authentication
Access control via firewall
User credentials with policy enforcement
Digest authentication
