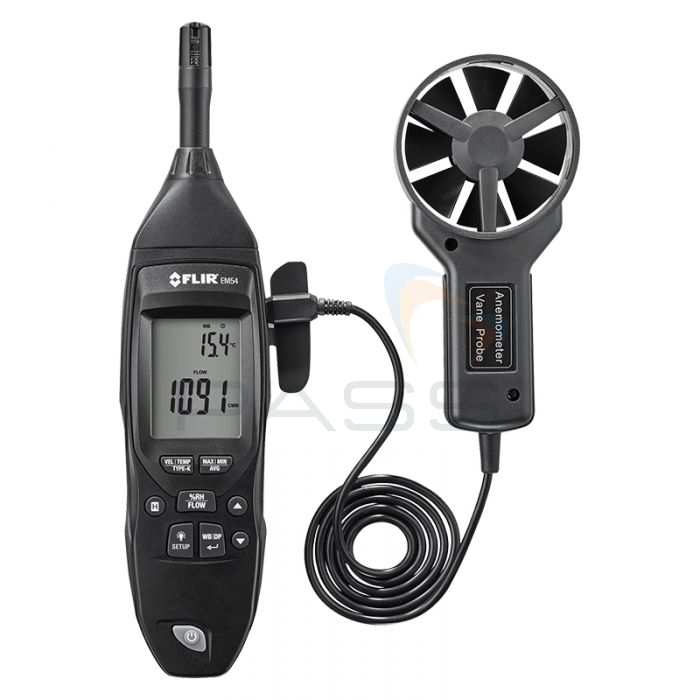

FLIR EM54 HVAC/R Environmental Meter
- Troubleshoot HVAC/R ducting systems in residential, commercial and industrial premises
- Humidity, Wet Bulb and Dew Point functions
- Measure the operating temperature of electric motors and thermal equipment components
The FLIR EM54 HVAC/R Environmental Meter can be used to inspect and troubleshoot HVAC/R ducting systems. It is suitable for use in residential, commercial and industrial premises and can be used to check a variety of environmental parameters.
The FLIR EM54 HVAC/R Environmental Meter can calculate dew point and wet bulb; it features dedicated functions for this purpose as well as a Humidity function. These functions also allow the user to measure deviations from proper relative humidity levels.
In addition to this, the FLIR EM54 HVAC/R Environmental Meter can be used to verify the volumetric flow of duct inlets and outlets. Moreover, its type-K contact temperature probe allows the user to check the operating temperature of electric motors and components within thermal equipment.
Measurements are indicated on the FLIR EM54 HVAC/R Environmental Meter’s backlit display and can be frozen on the screen using the Hold function. An ergonomic design, simple interface and clearly labelled function buttons ensure that the FLIR EM54 HVAC/R Environmental Meter is easy to use.
The FLIR EM54 HVAC/R Environmental Meter is also supplied with a tripod mount, allowing the user to create distance between the tester and any objects that may influence relative humidity measurements.
The FLIR EM54 HVAC/R Environmental Meter provides consistently high-quality data. It is ideal for accurately troubleshooting residential, commercial and industrial HVAC/R ducting systems.
FLIR EM54 HVAC/R Environmental Meter Key Features
- Inspect and troubleshoot HVAC/R ducting systems
- Suitable for use in residential, commercial and industrial premises
- Check a variety of electrical parameters
- Humidity function
- Wet Bulb function
- Dew Point function
- Use the Humidity, Wet Bulb and Dew Point functions to measure deviations from proper relative humidity levels
- Verify the volumetric flow of duct inlets and outlets
- Type-K contact temperature probe
- Check the operating temperature of electric motors and components within thermal equipment
- Backlit display
- Hold function
- Ergonomic
- Simple, intuitive interface
- Clearly labelled function buttons
- Supplied with a tripod mount
- The tripod mount can be used to create distance between the tester and objects that may influence the relative humidity readings
- Provides consistently high-quality data
- Ideal for accurately troubleshooting residential, commercial and industrial HVAC/R ducting systems
What’s Included?
- FLIR EM54 HVAC/R Environmental Meter
- Vane Anemometer Probe
- Type-K Thermocouple Probe
- Soft Carrying Pouch
- 9v Battery
- Tripod Mount
Call 01642 265428 or complete the form:
FLIR EM54 HVAC/R Environmental Meter Technical Specifications
| Overview | |
| Auto Power Off (APO) | Configurable from 5 to 60 min in 8 increments |
| Dimensions (L x W x H) | 275 × 65 × 45 mm (10.8 × 2.6 × 1.8 in) |
| Housing material | Impact-resistant plastic |
| Warranty | Limited 3 years |
| Weight | 283.9 g (10 oz) with battery installed, no external probes |
| Anemometer Body Length | 150 mm (5.9 in) |
| Anemometer Cable Length | 950 mm (37.4 in) |
| Anemometer Vane Diameter | 70 mm (2.8 in) |
| Compliance and Certifications | |
| Certifications | CE, RCM |
| Environmental | |
| Drop test | 1 m (3.3 ft), not including removeable probes |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature Range | -10 to 60°C (14 to 140°F) |
| Imaging and Optical | |
| Display Type | Backlit, multifunction LCD |
| Measurement and Analysis | |
| Air Temperature | 10 to 30°C (50 to 86°F), ±1°C (1.8°F); -30 to 9.9°C (-22 to 50°F) and 31 to 60°C (88 to 140°F), ±2°C (3.6°F) |
| Dew Point | -30 to 60°C (-22 to 140°F), ±3°C (4.8°F) |
| Temperature Type K thermocouple | -99.9 to 99.9°C (-148 to 212°F), ±1.5% +1°C (1.8°F); 100 to 1372°C (212 to 2502°F), ±1.5% +2°C (3.6°F) |
| Wet Bulb (Calculated) | -30 to 50°C (-22 to 122°F), ±3°C (4.8°F) |
| Air Velocity (Vane Anemometer Probe) | 0.4 to 30 m/s, ±3% +0.2 m/s ; 79 to 5906 ft/min, ±3% +40 ft/min; 1.4 to 108 km/h, ±3% +0.8 km/h; 0.9 to 67.2 mph, ±3% +0.4 mph; 0.8 to 58.3 knots, ±3% +0.4 knots |
| Relative Humidity | 5% to 98% ±3.5% |
| Performance | |
| Air Flow | 0 to 999900 CMM (0 to 999900 CFM) |
| Power | |
| Battery life | 120 hours typical |
| Battery status indicator | Low battery indication |
| Battery type | 1x 9 V |
