FLIR Elara FC 6xx ID-Series Thermal Imaging Security Cameras (8.3Hz) /w FOV Options
Description

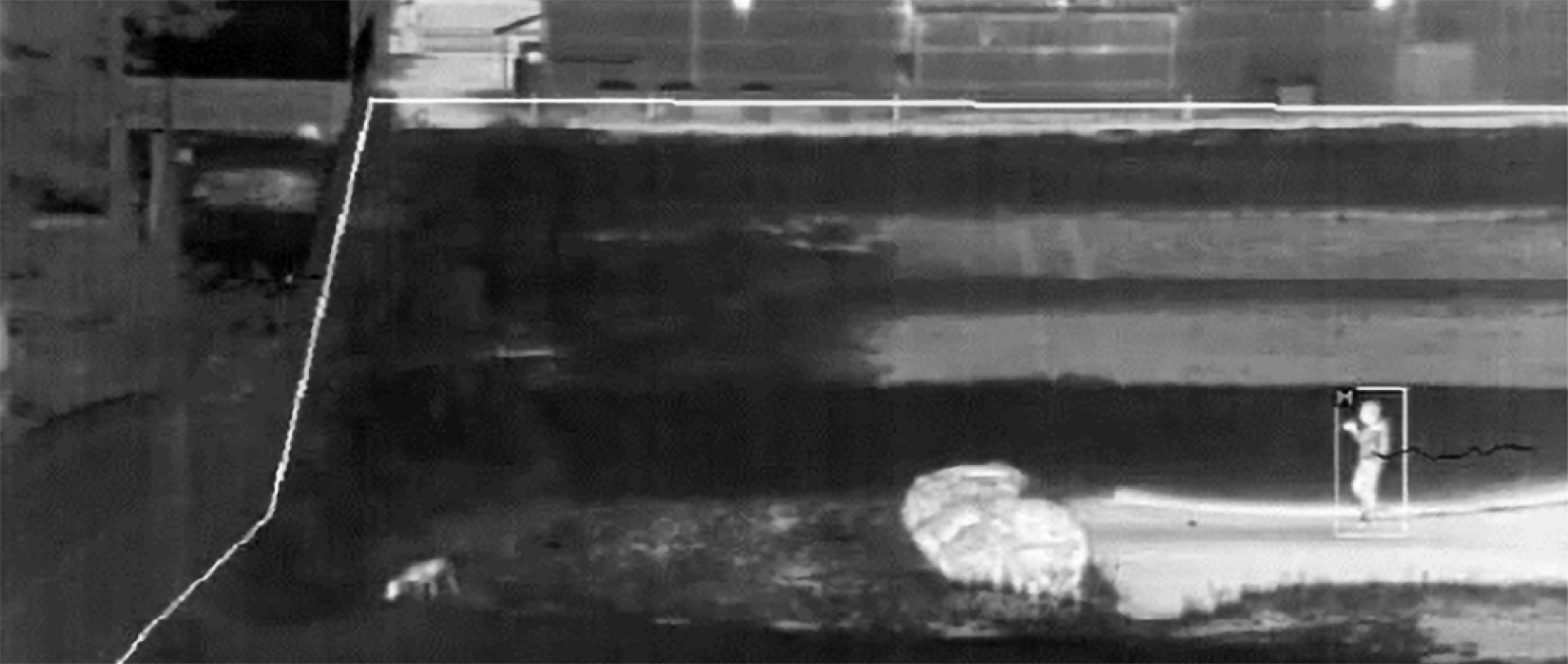

The Elara FC-Series ID is a premium FLIR thermal security camera for perimeter protection. Includes onboard video analytics capable of classifying human or vehicular intrusions, while ignoring harmless activity from animals or wind-blown foliage resulting in fewer false alarms. High-performance lenses and multiple resolutions give greater flexibility in tailoring security systems to specific site conditions.
Combining thermal cameras and analytics is a reliable, cost-effective way to protect perimeters from intrusion and enables target hand-off to PTZ camera auto-tracking. Superior thermal image quality in low-contrast conditions using custom AGCs and Dynamic Detail Enhancement (DDE). Choose from a wide range of high-performance lenses for optimal detection ranges in all conditions.
Key Features
- Auto calibration for depth setup for a simple and reliable configuration
- No additional measurement tools are needed, requiring only a single installer on site
- Allows analytics in corridor mode, reducing the number of cameras and improving the total cost of ownership
- Target hand-off to PTZ camera auto-tracking
- Superior image quality in low-contrast conditions
- FLIR's custom AGCs provide images with extremely high contrast
- Dynamic Detail Enhancement (DDE) creates sharp edges and contrast that improve analytics performance
- High-performance lenses suitable for any perimeter or open area
- High-performance optics deliver clear thermal video
RELIABLE ONBOARD ANALYTICS

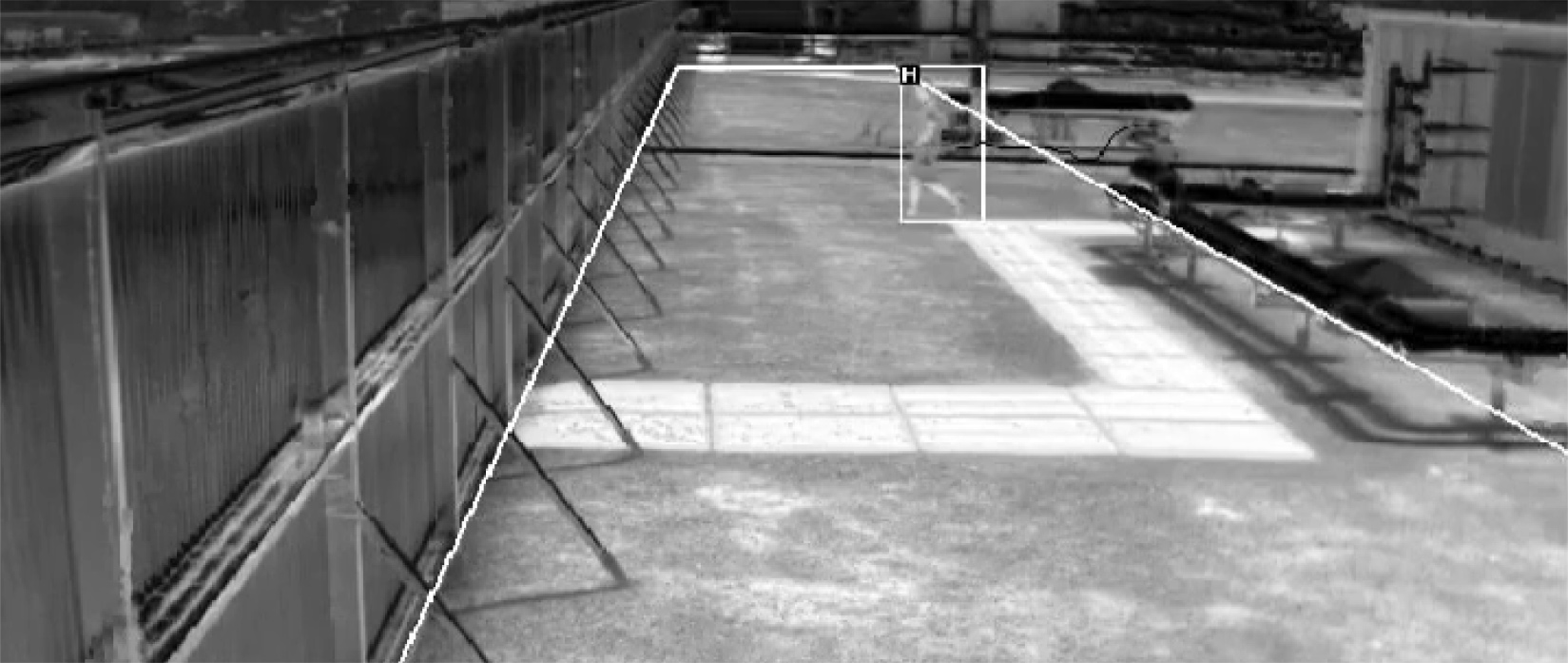

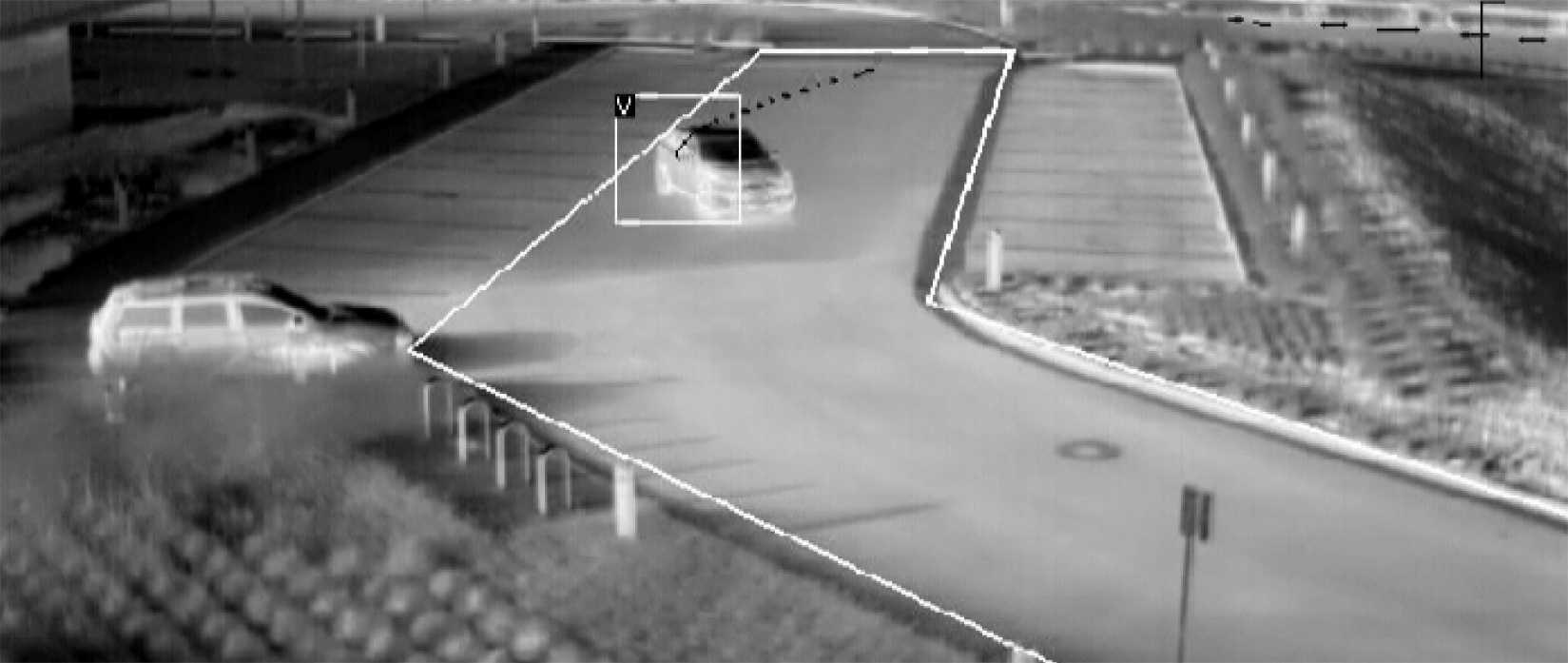

The Elara FC-Series ID accurately classifies humans and vehicles and enables target hand-off to PTZ camera auto-tracking.
INDUSTRY-LEADING IMAGE QUALITY
The Elara FC-Series produces superior thermal image quality in low-contrast conditions using custom AGCs and Dynamic Detail Enhancement (DDE).
HIGH-PERFORMANCE LENSES
Choose from a wide range of high-performance lenses for optimal detection ranges in all conditions.
Downloads
Datasheets
Tech Specs
| FC-690 ID | FC-669 ID | FC-644 ID | FC-632 ID | FC-617 ID | FC-610 ID | FC-608 ID | FC-625 ID | |
|---|---|---|---|---|---|---|---|---|
| General | ||||||||
| Detector Type | Long-Life, Uncooled VOx Microbolometer | |||||||
| Dimensions (L x W x H) | Without sun shield: 259 x 114 x 106 mm/10.2" x 4.5" x 4.2" With sun shield: 282 x 129 x 115 mm/11.1" x 5.1" x 4.5" | |||||||
| Effective Resolution | 76800 | 307200 | 76800 | |||||
| E-Zoom | 4x continuous E-Zoom | |||||||
| Focus Range | Athermalized, Focus-Free | |||||||
| Power Consumption | Source POE (802.3af) POE+ (802.3at) 12VDC 24VDC 24VAC(VA) Heater off <5.5W <5.5W <5.5W <5.5W <8W Heater on (@ 100%) N/A <25W <25W <25W <32W |
|||||||
| Surge Immunity on AC Power Lines | EN 55024: 2010 and 55022: 2010 to 4.0kV on AC aux power lines; EN 50130-4:2011; IEC 62599-2:2010 | |||||||
| Surge Immunity on Signal Lines | EN 55024: 2010 and 55022: 2010 to 4.0kV | |||||||
| Weight | 2.2kg (4.75 lbs.) | 2.5kg (5.5 lbs.) | 2.2kg (4.75 lbs.) | |||||
| Compliance & Certifications | ||||||||
| Approvals | CE: EN55032; FCC 47 CFR Part 15, Subpart B, Class A (within CISPR 22:2008 Class A limits) | |||||||
| Certifications | IEC 60068-2-1:2007; IEC 60068-2-2:2007; ISTA-1A; IEEE 802.1x | |||||||
| Compliance | RoHS Directive 2011/65/EU; WEEE 2012/19/EU | |||||||
| Environmental | ||||||||
| Humidity | 0-95% relative humidity | |||||||
| IP Rating (dust & water ingress) | IP66 & IP67 | |||||||
| Operating Temperature Range | -50°C to 70°C/-58°F to 158°F (Continuous Operation) -40°C to 70°C /-40°F to 158°F (Cold Start) | |||||||
| Shock | MIL-STD-810G "Transportation" | |||||||
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F | |||||||
| Vandal Resistance | IK10 (except Windows) | |||||||
| Vibration | IEC 60068-2-27 | |||||||
| System Integration | ||||||||
| Analog Video Output Composite | 1Vp-p (PAL or NTSC), 1 x BNC 75Ω | |||||||
| Control Input/Output | 1x Dry Contact in; 1x Relay Out (rated load 0.025A@ 5VDC) | |||||||
| Ethernet | 10/100 Mbps | |||||||
| External Analytics Compatible | Yes | |||||||
| Network APIs | FLIR SDK FLIR CGI ONVIF Profile S | |||||||
| Streaming Resolution | D1: 720 x 576 4CIF: 704 x 576 Native: 640 x 512 Q-Native: 320 x 256 CIF: 352 x 288 QCIF: 176 x 144 | |||||||
| Supported Protocols | IPV4, HTTP, Bonjour, UPnP, DNS, NTP, RTCP, TCP, UDP, ICMP, IGMP, DHCP, ARP, SCP, FTP, RTP/RTSP, Unicast/Multicast, TCP/IP, HTTP, IEEE 802.1X | |||||||
| Video Over Ethernet | Two independent channels of H.264 (Restricted VBR and CBR,10kbps-4Mbps, MPEG4, and MJPEG) | |||||||
| Thermal Camera | ||||||||
| Image Uniformity Optimization | Automatic Flat Field Correction (FFC); Thermal and Temporal Triggers | |||||||
| Lens | 13/19/35mm | 60mm | 75mm | 13/19/35mm | ||||
| Pixel Pitch | 17 µm | |||||||
| Thermal AGC Modes | Auto AGC, Manual AGC, Plateau Equalization AGC, Linear AGC, Auto Dynamic Detail Enhancement (DDE), Max Gain Setting | |||||||
| Thermal AGC Region of Interest [ROI] | Default, Presets, and User definable to ensure optimal image quality on subjects of interest | |||||||
| Thermal Frame Rate | NTSC: 30 Hz - PAL: 8.3 Hz | |||||||
| Video & Recording | ||||||||
| Composite Video NTSC or PAL | Hybrid system with IP & analog video | |||||||
| Local Storage | Support for 32GB SD Card (not supplied) | |||||||
| Visible Camera | ||||||||
| Array format | 640 x 480 | |||||||
| Field of view (FOV) | 90° x 69° | 69° x 56° | 44° x 36° | 32° x 26 | 17° x 14° | 10° x 8.2° | 8.6° x 6.6° | 4.3° x 3.3° |
| f-number | f/1.2 | f/1.4 | f/1.0 | f/1.1 | f/1.2.5 | f/1.1 | ||
| Focal Length | 7.5 mm | 9 mm | 13 mm | 19 mm | 35 mm | 60 mm | 75 mm | 25 mm |
| Sensitivity | <35mK for F# 1.0 optics | |||||||
| Spectral Range | 7.5 µm to 13.5 µm | |||||||
Reviews
Additional Information
| SKU | ELARA-FC6XX-ID-8.3Hz |
|---|
