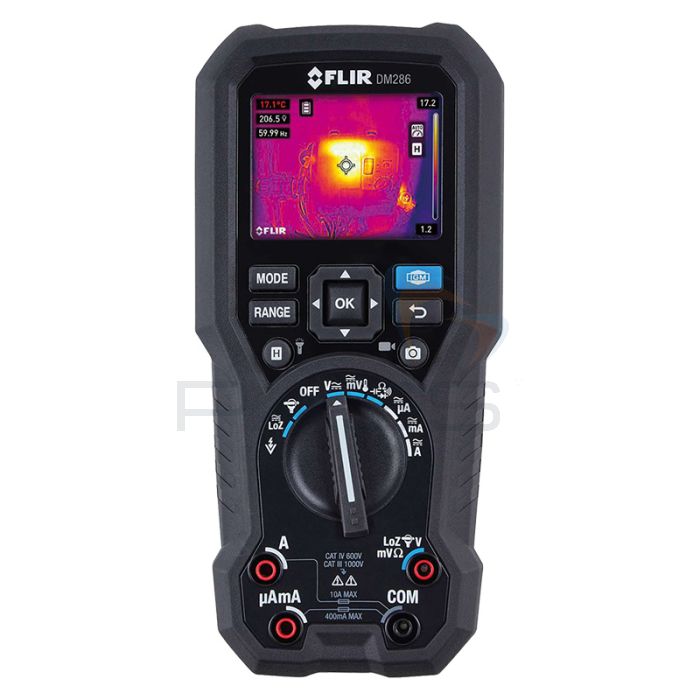

FLIR DM286 Industrial Thermal Imaging Multimeter with IGM
Description
The FLIR DM286 industrial imaging multimeter is the ultimate tool for electrical inspectors seeking a safe, accurate, and efficient way to identify, document, and share findings.
With IGM™ (Infrared Guided Measurement) and MSX (Multi-Spectral Dynamic Imaging), you can safely identify where hazards might be before contact is ever made. The powerful multimeter can capture and store up to 30,000 images and 100 log files, with the ability to record thermal and visual video clips. Stream live data in real time from the DM286 to your mobile device.
Use the METERLiNK® app to quickly and efficiently capture readings, images, and videos for analysis, trending, and sharing.
PERFORM SAFE, ACCURATE & QUICK INSPECTIONS
Safely locate potentially dangerous problems without direct contact using FLIR IGM. MSX gives you unrivaled clarity by embedding edge and outline detail onto thermal images.
PURPOSE-BUILT FOR ALL-DAY OPERATION
The FLIR DM286 comes with a built-in LED worklight for better visibility in dark or poorly lit areas, two rechargeable Lithium Polymer battery packs for all-day operation, and a 2 m drop test rating for durability.
UNMATCHED CONNECTIVITY
Use the FLIR METERLiNK app to quickly and efficiently capture and compare readings, analyse and share radiometric images and videos, and create reports.

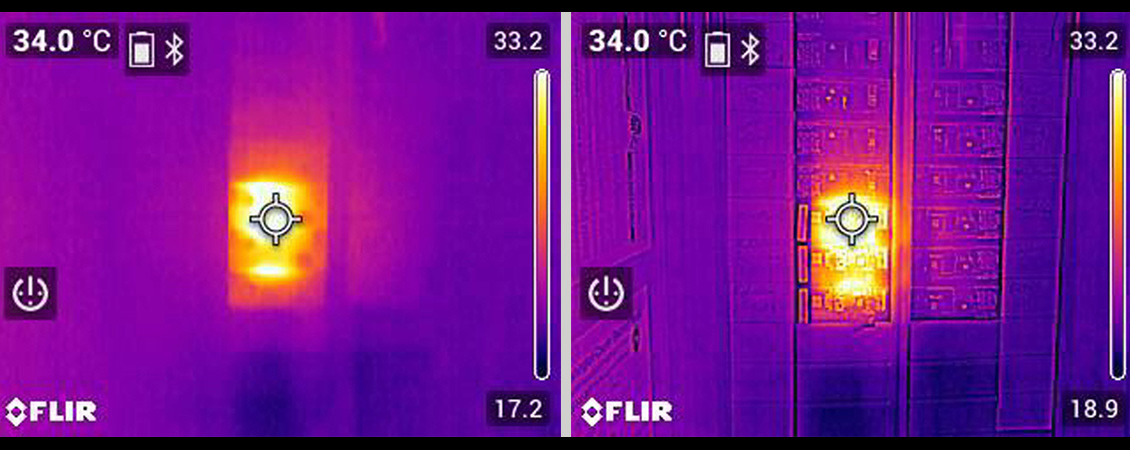

MSX Image Enhancement
The FLIR DM286 features FLIR's unique Multi-Spectral Dynamic Imaging (MSX), which adds key details from the onboard visible light camera to the entire infrared image in real time.
The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real time so you can see its results immediately on the camera's display.

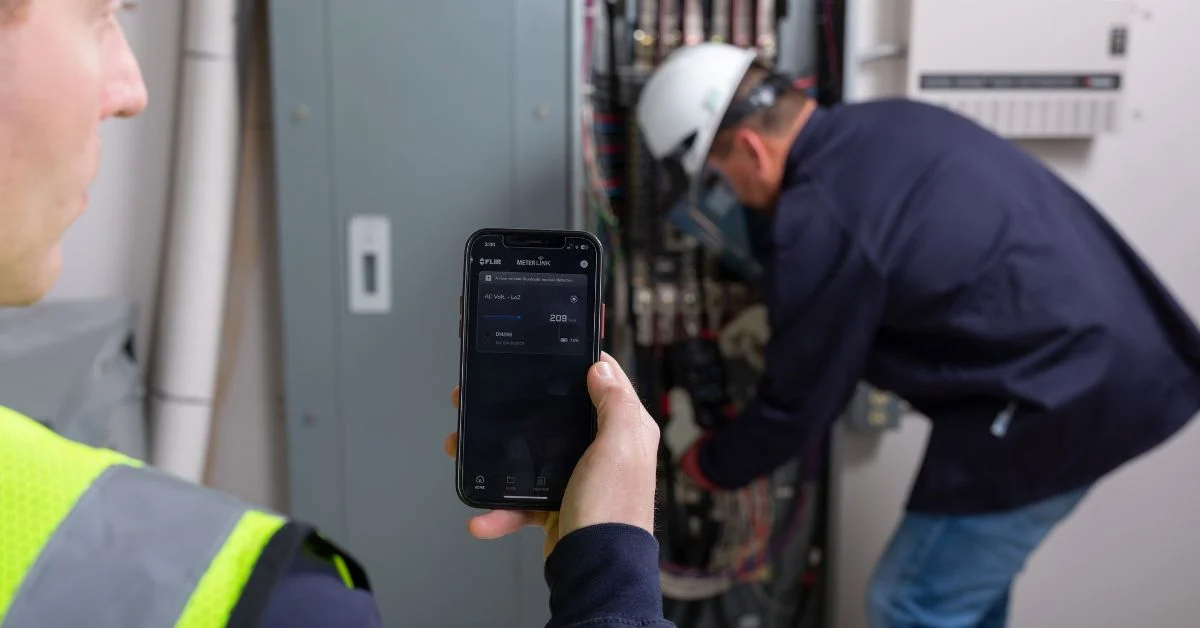

FLIR METERLiNK® App
The FLIR METERLiNK® app allows you to monitor various environmental and electrical conditions simultaneously and connect with up to seven FLIR-compatible meters at once. METERLiNK allows you to capture images safely and monitor hazardous areas remotely and in real time.
Whether you're connecting several FLIR clamp meters, digital multimeters, or any of the new METERLiNK app-compatible meters, you can keep tabs on key readings around your facility and easily share them with your team.
Key Features
- IGM (Infrared Guided Measurement) for safer non-contact thermal inspections
- Unrivaled thermal image clarity with MSX (Multi-Spectral Dynamic Imaging)
- Seamless integration with METERLiNK App
- Identifying hot spots in electrical components
- Diagnosing intermittent electrical problems
- Data logging and tracking changes in electrical systems
What's Included?
- DM286 Industrial Thermal Imaging Multimeter
- 1 set of CATIV 600V Test Lead
- 1 set of CATIV 600V Alligator Clip
- Type-A to Micro-USB Cable (with Data transfer capability)
- K-type Thermocouple (-30°C to 260°C)
- Soft-sided carrying case
- FLIR Quick Start Guide
- FLIR Warranty Card
- TA04 Rechargeable Battery Cell
Downloads
Tech Specs
| IR Resolution | 160 x 120 (19,200 pixels) |
|---|---|
| Display Counts | 6000 |
| AC/DC Voltage | 1000 V AC RMS ±(1.0% + 3) 1000 V DC ±(0.09%+3) |
| AC/DC Amps | 10.00 A AC RMS ±(1.5% + 3) 10.00 A DC ±(1.0%+3) |
| Connectivity | Bluetooth BLE |
| IMAGING & OPTICAL | |
| Color Palettes | Iron, rainbow, arctic, white hot, and black hot |
| Field of View - Visual | 71° x 56° |
| Focus | Fixed |
| Frame Rate | 9 Hz |
| Image Modes | Thermal MSX (Multi-Spectral Dynamic Imaging) Thermal Camera only Digital Camera only |
| IR Resolution | 160 x 120 (19,200 pixels) |
| IR Sensitivity | 150 mK (0.15°C) |
| Spectral Response | 8-14 µm |
| Thermal Imaging Detector | FLIR Lepton® microbolometer |
| Visual Focus and FOV | Fixed focus, 71° x 56° FOV |
| Visual Resolution | 2 MP (1600 x 1200 pixels) |
| MEASUREMENT & ANALYSIS | |
| AC/DC Amps | 10.00 A AC RMS ±(1.5%+3) 10.00 A DC ±(1.0%+3) |
| AC/DC LoZ V | 1000 V AC RMS or 1000 V DC ±(1.3%+4) |
| AC/DC mVolt | AC 600.0 mV ±(1.0%+3) DC 600.0 mV±(0.2%+3) |
| AC/DC Voltage | 1000 V AC RMS ±(1.0%+3) 1000 V DC ±(0.09%+3) |
| Calibration Cycle | Once per year, recommended |
| Capacitance | 10.00 mF ±(4.0%+5) |
| Continuity Check Threshold | 10-100Ω |
| Diode Test | 1.500 V ± 0.9% |
| Display Counts | 6000 |
| Frequency Counter | 100.00 kHz ±(0.1%+5) |
| Measuring Rate | 3 samples per second |
| Resistance | 6.000 MΩ ±(0.9%+5), 60.00 MΩ ±(3.0%+5) |
| Temperature Accuracy | ±3°C (5.4°F) or ± 3% of the reading (whichever is greater) for temperatures > 25°C (77°F) ±5°C for temperatures -10°C to 25°C (14°F to 77°F) |
| Temperature Range | -5°C to 300°C (23°F to 572°F) |
| Temperature Resolution | 0.1°C (0.1°F) |
| Temperature Type K Thermocouple | -40°C to 400°C DMM ± (1.0% + 3°C) / IGM ± (1.0% + 5°C) -40°F to 752°F DMM ± (1.0% + 5.4°F) / IGM ± (1.0% + 9°F) |
| Thermal Sensitivity | 150 mK (0.15°C) |
| VFD | AC V: 1000 V AC RMS, ±(1.3%+4) at 45∽65 Hz |
| COMMUNICATION & DATA STORAGE | |
| Connectivity | Bluetooth BLE |
| Image File Format | Radiometric |
| Storage | 40,000 readings per memory set |
| Storage Media | eMMC 4GB |
| Stored Image Capacity | up to 30,000 |
| Video Recording | 50 minutes maximum duration 20 seconds max duration for file transmission |
| USER INTERFACE | |
| Display | 2.8" |
| Display Brightness | High, Medium, Low |
| POWER | |
| Auto Power Off | For Meter: set to OFF, 2, 5, or 10 minutes For Worklight only: set to OFF, 5, 15, or 30 minutes |
| Battery | TA04, Lithium Polymer Rechargeable, 3050 mAh. Two supplied |
| Battery Life | Approx. 6.5 hours in IGM mode with display brightness set to medium Approx. 10 hours in Multimeter mode (medium brightness) |
| Non_Contact Voltage Detector [NCV] | Yes |
| GENERAL | |
| Dimensions (L x W x H) | 20 cm x 9.6 cm x 5.6 cm (7.9 in x 3.8 in x 2.2 in) |
| Scanning Mode | Continuous scan. Crosshairs and laser pointer targeting |
| Weight | 569 g (1.25 lb) without battery (approx.) |
| Worklights | x1 LED |
| ENVIRONMENTAL & CERTIFICATIONS | |
| Certifications | ETL, FCC, CE, RCM, UKCA, FDA, EN60825, EN50689 |
| Drop Test | 2 m (6.6 ft) |
| EMC | EN61326-1 |
| Emissivity Settings | 0.10 to 1.00 (default is 0.95); select from four presets or set manually |
| IP Rating | IP40 |
| Laser Pointer Power | ≤0.39 mW |
| Laser Type | Class I (red) |
| Laser Wavelength | 640 nm to 660 nm |
| Operating Altitude | 2000 m (6560 ft) |
| Operating Temp & Humidity | -10°C to 30°C (14°F to 86°F), <85% RH 30°C to 40°C (86°F to 104°F), <75% RH 40°C to 50°C (104°F to 122°F), <45% RH |
| Pollution Degree | 2.0 |
| Safety | IEC 61010-1 CAT IV - 600 V, CAT III - 1000 V |
| Storage Temperature and Relative Humidity [RH] | -20°C to 60°C (-4°F to 140°F), 0-80% RH (without batteries) |
| ACCESSORIES | |
| Software | FLIR METERLiNK® app |
